In recent years, with the improvement of the ecological environment and the increasing awareness of bird protection among the people, the number of birds has increased. This power system poses a serious safety hazard. In response to the existing bird hazard problem in the power system substations, our company has developed a laser bird deterrent system.

For birds, vision is the most sensitive sense, especially to green lasers with a wavelength of 520-532nm. Experiments conducted by ornithologists at home and abroad have proven that a "rod-shaped" green laser with a wavelength of 520-532nm simulates the conditions of biological visual reflection. When a green laser rod sweeps across, birds see it as a large green rod, achieving the effect of deterring birds.

The automatic laser bird deterrent can operate continuously, sweeping the entire substation area at dawn, dusk, or night. Over time, this affects the ecological environment on which birds in and around the substation depend for survival, habitat, and foraging, causing birds to develop a fear response and eventually stay away from the substation, fundamentally preventing and eliminating accidents caused by birds.

Substation personnel can remotely change the scanning speed of the laser beam at any time, keeping birds off guard and preventing them from adapting. Remote control, monitoring, and parameter changes can be achieved via computer through the internet or Ethernet.

Core Functions

The core of the laser bird deterrent lies in its ability to emit laser beams of specific wavelengths and intensities. These laser beams stimulate the birds' visual systems, causing discomfort or a sense of threat, thus driving them away. Laser bird deterrents typically use high-brightness laser beams with wavelengths in the visible light range (400-700nm). Such wavelengths can directly damage the birds' retinas, causing temporary blindness, effectively driving away birds. This is a technical feature of laser bird deterrents.

Environmentally Friendly and Harmless:

The laser bird deterrent does not use any chemical agents, causing no environmental pollution and no harm to birds.

Highly Efficient and Precise:

The laser beam can precisely irradiate birds, achieving a highly effective deterrent effect. By adjusting the scanning speed, angle, and power of the laser beam, it can adapt to different environments and bird characteristics.

Intelligent and Controllable:

Modern laser bird deterrents support remote control and intelligent bird recognition functions. For example, an AI laser bird deterrent can use components such as high-definition cameras, pan-tilt units, and laser emitters to achieve active bird detection and precise bird deterrence. When there are no birds nearby, the bird deterrent function is off; when birds approach, the camera immediately captures the birds and automatically directs the laser beam to drive them away.

24/7 Operation:

The laser bird deterrent has an outdoor protection level and can operate continuously 24/7 under extreme weather conditions such as thunderstorms, fog, snow, and typhoons.

Safe and Stable:

The laser beam emitted by the laser bird deterrent is harmless to human eyes and skin, but personnel should avoid direct eye contact with the laser beam. The device is made of special high-tech materials, achieving waterproof, lightning-proof, and radiation-proof effects, ensuring safe and stable operation.

Technical Highlights

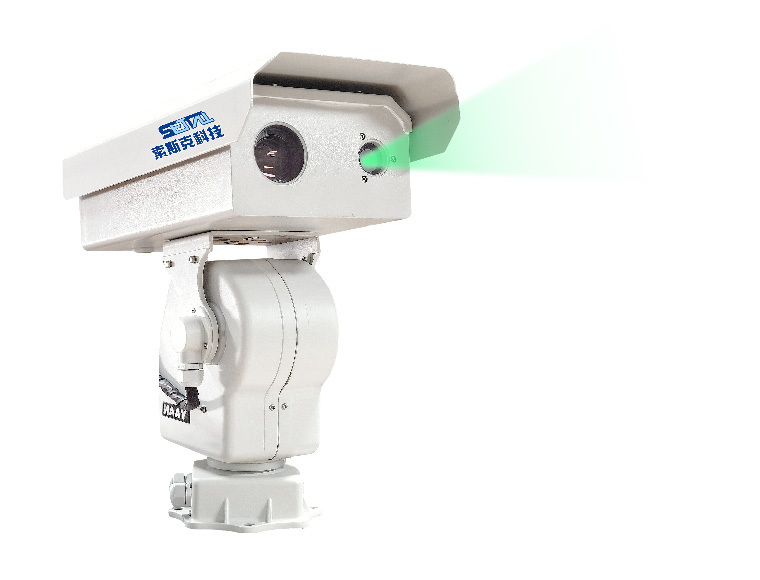

Laser Bird Deterrent System Components

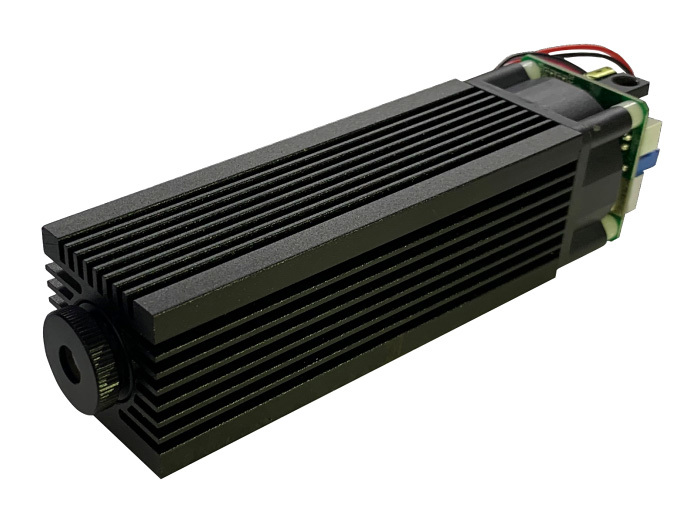

The core components of this product use original imported lasers. The best pure copper module is used for heat dissipation, effectively ensuring the heat dissipation of the core laser tube and extending its service life.

High-Precision Optical System Design: The optical lenses use high-precision imported lenses from the United States, resulting in low laser energy loss, good laser collimation performance, and uniform laser energy molecular distribution, ensuring the bird deterrent effect of the laser bird deterrent at a distance.

Coverage Range: The daytime bird deterrent range is 300 meters, and the nighttime range can reach over 1000 meters. The range is related to the intensity of sunlight; the stronger the sunlight, the shorter the range.

Remote Monitoring: Remote monitoring video is achieved through a front-end camera and network, allowing real-time viewing of the substation's internal conditions.

Applications	Substation Applications
Laser Parameters
Laser Wavelength	525nm
Laser Output Power	1000mw
Laser Electrical Power	12W
Laser Safety Level	CLASS 2M
Laser Intensity	≤15000Lux
Laser Power Stability	≤3.0% (25℃ & 4-hour test data)
Control Interface	RS232/485
Optical Output	Collimating Lens Output
Uniformity	Mini Laser Array Lens
Temperature Control System	Automatic
Irradiation Angle	5 degrees
Visible Light Camera
Sensor Type	1/1.8" CMOS
Scanning System	Line Scan
Imaging Resolution/Horizontal Resolution	1920(H) × 1080(V)
Minimum Illumination	Color: 0.1Lux Black and White: 0.001Lux
Signal-to-Noise Ratio	Greater than 50dB
Aperture Control	Automatic Aperture
Event Detection	Behavior analysis, anomaly detection, identification and detection, statistical functions
Image related	Supports HS1080p @25fps
Wide dynamic range	Range 120dB, suitable for ultra-wide dynamic environment monitoring
Image enhancement	Supports defogging, electronic image stabilization
External protection	Supports lightning protection, surge protection, electrostatic protection
Optical lens
Optical focal length	Focal length 5～160mm
Aperture value	F1.5～F4.0
Horizontal field of view	50.5～1.4° (wide-angle to telephoto)
Close-up distance	2～3m
Zoom speed	Approximately 4 seconds (optical, wide-angle to telephoto)
Day/night switching mode	ICR infrared filter type
Wide spectrum	The system uses a wide-spectrum coating, ranging from 400～1200nm
Function
Focus mode	Autofocus/Semi-autofocus/Manual focus
Backlight compensation	On/Off
Automatic gain	Auto/Manual
Automatic turntable
Input voltage	AC/DC24V±10% adaptive
Power	≤5W
Horizontal rotation angle	0°～360° continuous rotation (adjustable)
Vertical rotation angle	Tilt -75°～+40°
Horizontal rotation speed	0.01°～35°/S
Vertical rotation speed	0.01°～20°/S
Lens control	Pan-tilt configuration lens preset interface
Preset positions	200
Communication protocol	Pelco D/P/Industry protocol/Optional
Automatic cruise	Supported
Guard position	Supported
Automatic temperature control system	8℃ ± 5℃ ON, 20℃ ± 5℃ OFF (optional)
Protection level	IP66
Maximum load	7 kg
Dimensions	188×165×278(mm)
Pan-tilt weight	8kg
Material	Aluminum alloy material, powder coated surface
Overall physical characteristics
Bird deterrent radius	10-1000 meters
Laser life	10000-13000 hours
Operating voltage	AC/DC24V
Product dimensions	360×210×480（mm）
Waterproof sealing	Ip65 (airtight)
Operating temperature	-25℃～+50℃
Storage temperature	-50℃～+60℃
Input voltage	AC/DC24V±10% adaptive
Power consumption	Average power consumption less than 35W
Product weight	8kg

Applicable scenarios

Laser bird deterrent technology is applicable to a variety of scenarios, including but not limited to:

Agriculture: Protect farmland and orchards from bird damage, reducing crop losses.

Power facilities: Protect power facilities such as substations, preventing birds from nesting and causing equipment malfunctions.

Airports: Drive away birds around airports to ensure flight safety.

Precautions

When using a laser bird deterrent, please note the following:

Safe operation: Avoid direct eye contact with the laser emission port, do not irradiate human eyes, aircraft, automobiles, etc., to avoid causing injury or interference.

Environmental protection: Although laser bird deterrents are harmless to birds, the impact on the surrounding ecological environment should still be considered during use.

Laws and Regulations: Comply with local laws and regulations to ensure the legal use of the laser bird deterrent.

In summary, laser bird deterrent technology is a highly efficient and environmentally friendly bird control solution suitable for a variety of applications. However, when using it, it is necessary to strictly abide by the safety operating procedures to ensure that it does not have a negative impact on humans or the environment.
