The multifunctional post-drug rapid screening and exclusion instrument SSK/NW-CI is an intelligent detection device integrating multiple functions, specially designed for the rapid screening and exclusion of drug users.

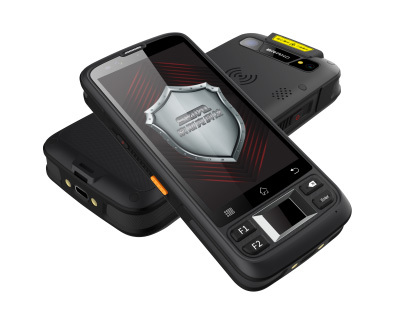

It uses a high-performance Android host as its main body, integrating a forehead laser sensor (harmless to the human body), a finger clip module sensor, and a second-generation ID card reading and registration module. It can efficiently and conveniently complete the identity identification, physiological status monitoring, and drug screening of drug users. It is widely applicable to law enforcement agencies, drug control inspections, community drug rehabilitation, etc., providing strong technical support for drug control work.

Core Functions

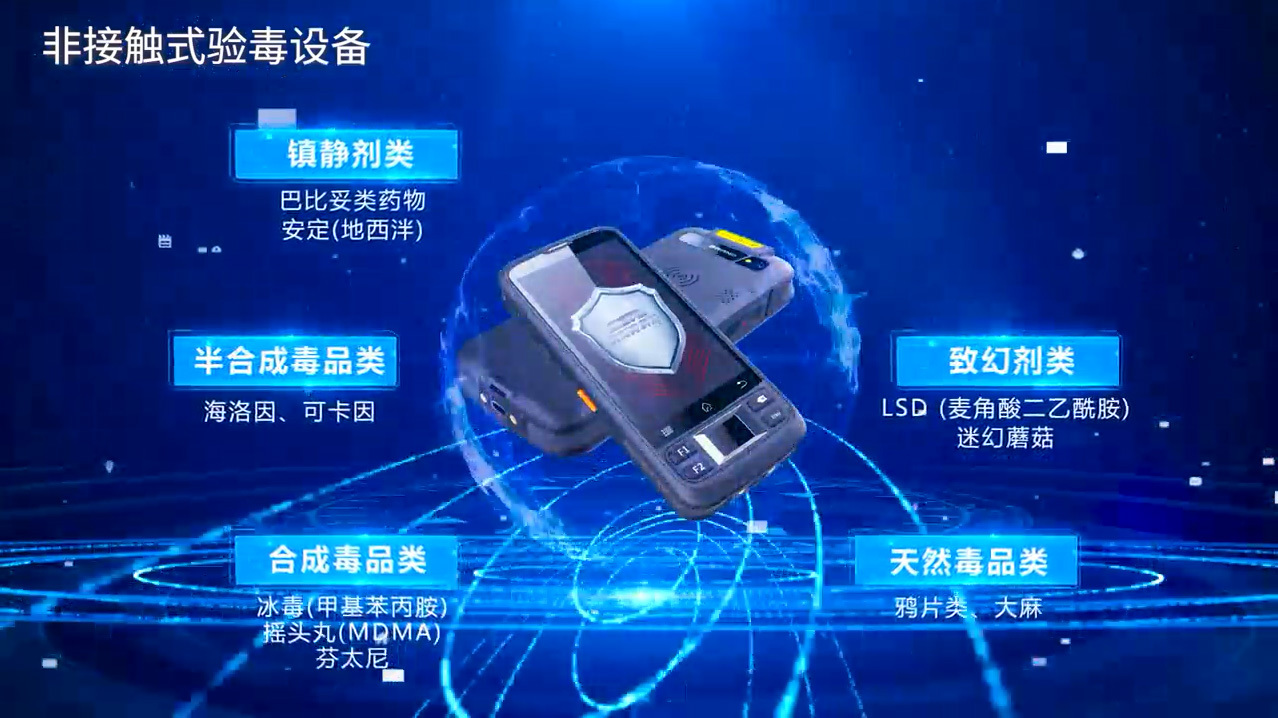

Rapid screening and exclusion of various types of drugs for drug users

Technical Highlights

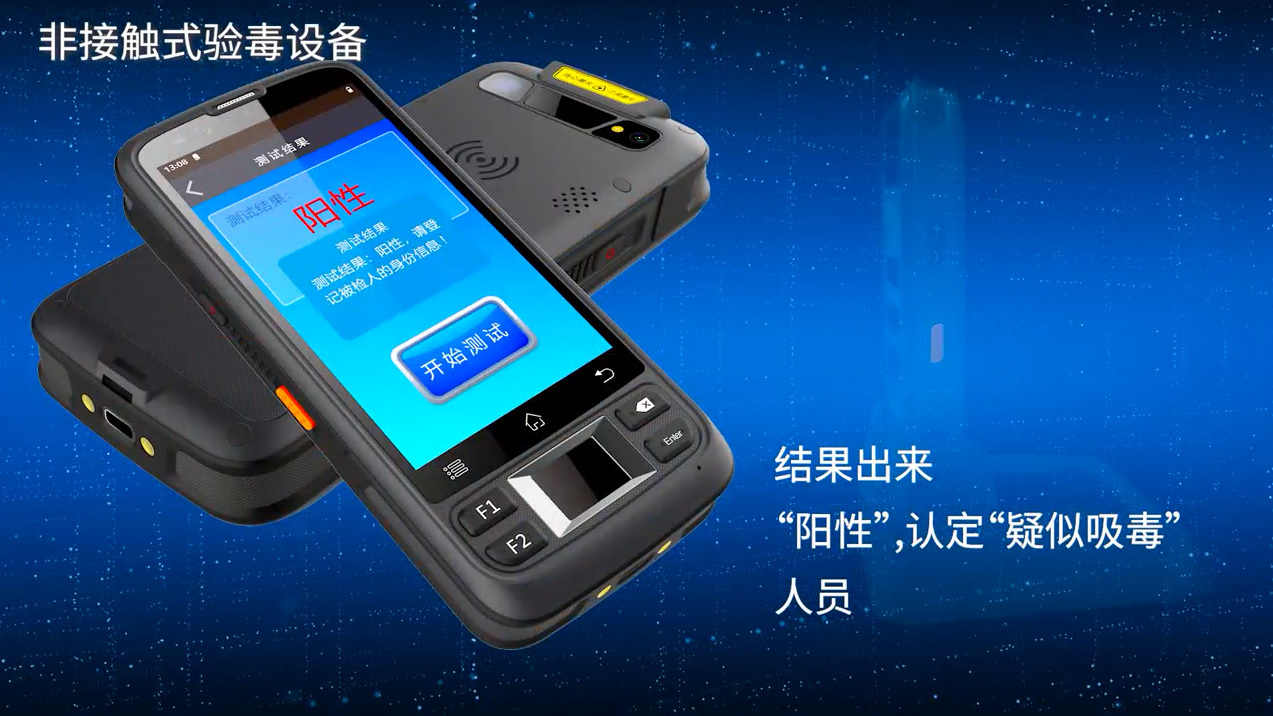

Rapid post-drug screening

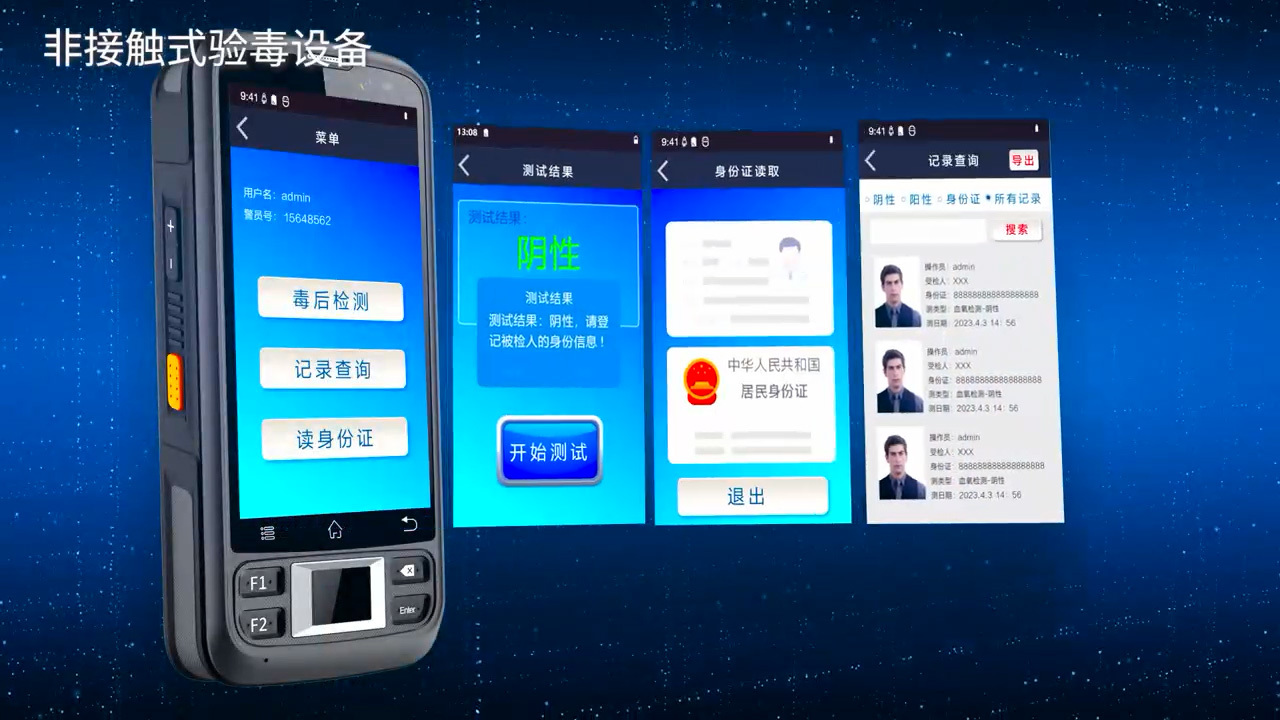

Rapid personnel registration (based on second-generation ID cards)

Applicable Scenarios

The multifunctional post-drug rapid screening and exclusion instrument is applicable to various drug control work scenarios, including but not limited to:

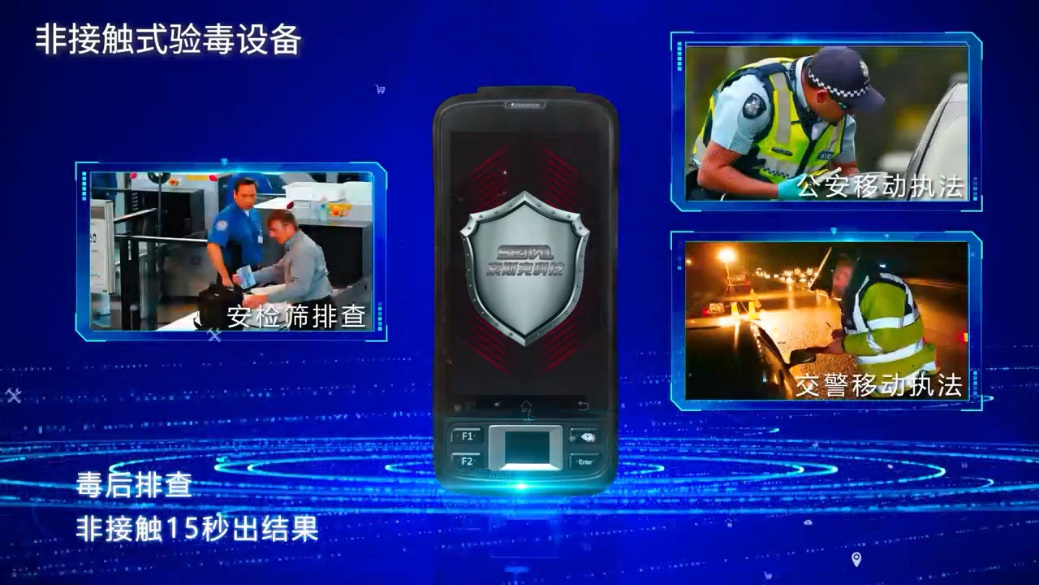

Law enforcement inspections: At traffic checkpoints and security checkpoints, quickly screen passersby for drug use, improving law enforcement efficiency.

Community drug rehabilitation: Used for daily monitoring and management of community drug rehabilitation personnel, timely detection of relapse, ensuring drug rehabilitation effectiveness.

Entertainment venue inspections: Quickly screen personnel in entertainment venues, effectively combating drug-related illegal and criminal activities, and maintaining social order.

Rapid screening for drug driving: The device tests drivers to accurately screen for drug use. This action targets not only ordinary vehicles but also online car-hailing and taxi vehicles in key industries to ensure the safety of urban public transportation.

Summary

This device combines multi-dimensional screening with identity identification, physiological monitoring, and intelligent analysis to judge drug use from multiple perspectives, making the screening results more convincing and achieving multi-dimensional screening; the device is lightweight and portable, ready to use upon startup, without complex installation and debugging, suitable for various on-site law enforcement environments, and easier for rapid deployment and use. In addition, considering the ever-changing needs of drug control, this device is based on a common Android system, providing greater space for software upgrades, screening algorithm updates, and functional expansion.

The rapid post-drug screening and registration instrument is an intelligent device integrating physiological index monitoring, identity information reading, data management, and transmission. With its advantages of efficient screening, precise monitoring, convenient operation, and data security, it can meet the needs of law enforcement departments, medical institutions, community drug rehabilitation institutions, and other fields. Through rapid and accurate post-drug screening and personnel information registration, the device provides an efficient and reliable solution for post-drug management and is expected to be widely used in related fields, assisting in drug control work and personnel health management.

Device Parameters

Simple Parameters
Host Processor	Octa-core high-performance processor
Screen Size	5.0-inch HD touch screen
Screen Resolution	1280*720
Host Size	1788324.6mm
Second-generation ID card reading module	Complies with ISO/IEC 14443 Type B standard, and "GA450-2013 General Technical Requirements for Desktop Resident Identity Card Readers", "GA467 Interface Technical Specifications for Resident Identity Card Verification Security Control Module", "GA/T1011-2012 General Technical Requirements for Resident Identity Card Fingerprint Collectors"
Reading Time	<1s
Operating Temperature	-40℃～+60℃
Storage Temperature	-45℃～+70℃
Battery Life	Approximately 8 hours
Weight	Approximately 1200g
Accessories	Finger clip sensor module, data transmission base, charging cable, charging plug, instruction manual, ABS protective case

Specific Parameters
Processor Speed	8-core 2.0GHz
Screen Size	5.0-inch screen
Screen Resolution	1280*720
Touch Screen	Multi-touch, Corning Gorilla Glass 3
Camera	Front 5.0MP
Camera	Rear 13MP, autofocus with flash
Microphone	Built-in 8Ω/0.8W waterproof speaker x 1
Speaker	Built-in Sensitivity: -42db, Output impedance 2.2kΩ
Biometric Recognition Module
Resolution	24bit
RMS Noise	<1µV (0.1-100Hz)
Input Range	-150 mV to +150 mV
Input Impedance	>1 GΩ
Common Mode Rejection Ratio (CMRR)	(@50-60Hz): 100dB
Sampling Rate	4096/2048/1024/512 or 4000/2000/1000/500Hz
Simulated Bandwidth	4kHz DC to 800Hz
Second-generation ID card reading module
Standard Specification	Complies with ISO/IEC 14443 Type B standard, and "GA450-2013 General Technical Requirements for Desktop Resident Identity Card Readers", "GA467 Interface Technical Specifications for Resident Identity Card Verification Security Control Module", "GA/T1011-2012 General Technical Requirements for Resident Identity Card Fingerprint Collectors"
Card Reading Time	<1s
Reading Distance	0-30mm
Effective Acquisition Window	15.2*20.3mm
Image Size	300*400pixel
Image Resolution	500dpi
Operating Frequency	13.56MHZ±7KHZ（fc）
Antenna Energy	Electromagnetic field strength on the antenna surface (Hmx) ≤ 7.5A/m rms; Electromagnetic field strength in the normal direction of the antenna surface at the maximum reading distance (Hmh) ≥1.5A/m rms.
Fingerprint Sensor
Acquisition Method	High-precision ADC Acquisition
Image Acquisition Time	≤160ms
Resolution	508DPI
Acquisition Window Size	13.85mm×18.90mm
Effective Acquisition Area	12.8mm×18.0mm
Image Size	256 × 360 pixel
Interface Sensor
Gravity Sensing	Built-in
Gyroscope	Built-in
Compass	Built-in
Proximity Sensing	Built-in
Light Sensing	Built-in
WIFI	WIFI 802.11(a/b/g/n) 2.4G+5.8G Dual-band WIFI
Bluetooth BT	4.0(BLE) class 1.5 Transmission Distance: 10m
4G/5G	GSM、WCDMA、TD-SCDMA、LTE-FDD、LTE-TDD、Full Network Access
GPS/BDS	GPS、BD Optional
Machine Interface	SIM interface, TF card slot, USB 3.0, standard headphone jack, PogoPin, TYPE-C charging
External Power Supply	DC 5V Maximum Current 1.5A
Physical Parameters
Operating Temperature	-40°℃～+60℃
Storage Temperature	-45℃～+70℃
Operating Humidity	Humidity less than 90% (non-condensing)
Power Supply	Built-in lithium battery 3.7V/5000mAh
Battery Life	Approximately 8 hours (standby time > 300h)
Appearance Size	1788324.6mm
Weight	Approximately 1200g
Accessories
Finger Clip Sensor	Collects finger data
Data Transmission Base	Supports charging and data transmission
Charging Cable	USB to Type-C
Charging Plug	US/EU Standard
Instruction Manual	One
Packaging	ABS protective case (size 380mm220mm120mm)
