The SSK/NW-GCS5700 handheld gas and nuclear radiation integrated unit is a portable device used for the rapid and accurate detection and monitoring of gas and nuclear radiation levels in the environment. This handheld gas and nuclear radiation detector is not only compact and portable, but also has a variety of practical functions. For example, when radiation levels exceeding preset safety thresholds are detected, these devices will issue audible or other forms of alarm notifications to ensure that users can take timely action. In addition, they can record measurement data for post-incident analysis; and we are equipped with a large-capacity lithium battery that can work continuously for several hours, ensuring stable measurement support in any situation.

Core Functions

High sensitivity, can respond to 40ns instantaneous radiation

Fast response, can provide accurate dose rate for short-pulse radiation fields as short as 10ms

Professional, with multiple measurement modes to meet different level requirements

Easy to carry, integrated design, ultra-light structure and shielding design

Large capacity, uses a large-capacity lithium battery, supports continuous operation for more than 6 hours

Accurate results, meet and exceed national standards, worry-free verification

Technical Features

Used for rapid detection of various gases and nuclear radiation exceeding the alarm threshold, with the following characteristics:

High-resolution display

Uses a 5.7-inch high-definition color screen to display gas concentration and nuclear radiation exceeding the alarm threshold in real time.

High-quality sensors

Uses well-known brand sensors to detect α, γ, β ray radiation exceeding the standard and combustible and harmful gases.

Multiple detection principles

Includes electrochemical, infrared, catalytic combustion, thermal conductivity and PID photoionization, detecting more than 700 types of gases.

Advanced design

With mature core algorithms and advanced circuit design, it can be used for gas concentration detection in pipelines, confined spaces and negative pressure environments.

Fast response

Built-in pump suction design, fast response, sampling distance exceeds 10 meters, can detect negative or positive pressure gas.

High protection level

Protection level IP66, built-in water vapor and dust filter.

Large data storage

Supports storage of more than 100,000 data items and cloud upload and query.

Multiple alarm methods

Audio-visual, vibration, visual and undervoltage alarms, alarm values can be set, alarm methods are optional.

Application Scenarios

It can detect and analyze the oxygen content, various volatile toxic and harmful substances, and radioactive elements within a certain range of various environments in real time. It is applied to site safety inspections, hazardous environment monitoring, on-site analysis and detection of gas leaks and other emergencies, and monitoring and detection of nuclear-contaminated environments.

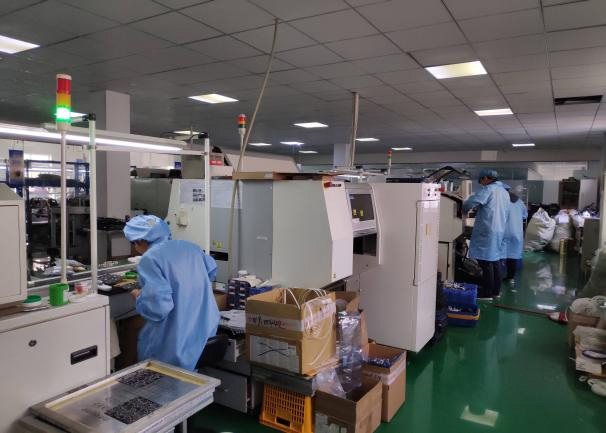

Factory/warehouse environment; Detect toxic or flammable gases that may exist in factory workshops, chemical plants, and warehouses, monitor the concentration of harmful gases in welding and painting processes, and check the sealing of storage tanks and pipelines to prevent harmful gas leaks.

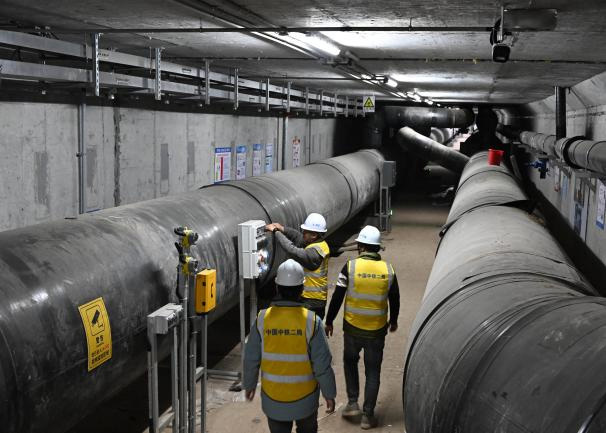

Underground spaces and pipelines; Basements, tunnels, underground pipe networks and other spaces with high closure, detect the concentration of flammable and toxic gases, and monitor the gas conditions inside pipelines to promptly discover leakage hidden dangers.

Entry-exit inspection and quarantine: Conduct radiation detection and gas safety detection on imported and exported goods, cargo, animals and plants and their products to ensure compliance with safety standards, prevent harmful substances from entering the country or being exported to other countries, and protect the ecological environment and human health.

Environmental monitoring; Monitor the content of harmful gases in urban and rural environments, detect chemical leaks at accident sites and natural disaster sites, and monitor changes in nuclear radiation levels in the surrounding environment.

Emergency rescue; Used for harmful gas detection at accident sites such as fires and leaks, assist firefighters and emergency rescue personnel in on-site detection and assessment, and provide gas concentration and radiation level data support for on-site rescue.

In general, this detector has a wide range of applications and can be widely used in factories, underground spaces, environmental monitoring, entry-exit inspection and emergency rescue, providing strong support for safe production and environmental protection.

The above is a diagram of various application scenarios

Specifications

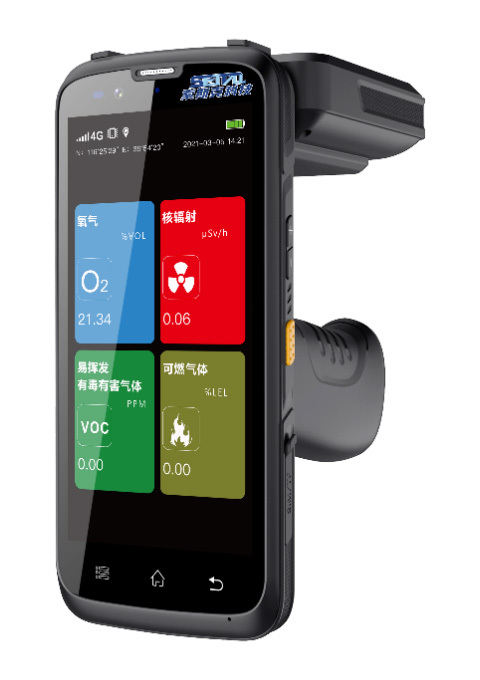

Handheld Gas and Nuclear Radiation Integrated Unit SSK/NW-GCS5700
Host Unit
Processor Speed	8-core 2.0GHz
Screen Size	5.7-inch screen
Screen Resolution	1280*960
Touch Screen	Multi-touch, Corning Grade 3 tempered glass screen
Camera	Front 5.0MP
Microphone	Built-in 8Ω/0.8W waterproof speaker
Speaker	Built-in Sensitivity: -42db, Output impedance 2.2kΩ
Gas Detection Unit
Gases Detected	Detection and identification of combustible gases, toxic gases, oxygen, and other mixed gases; alarms when the number of volatile toxic and harmful substances detected exceeds 700, exceeding the standard.
Gas Inhalation Method	Pump suction type
Detection Time	5-15 seconds
Toxic Gas Detection Method	PID photoionization sensor
Combustible Gas Detection Method	Catalytic combustion sensor
Oxygen Sensor Detection Method	Electrochemical type
Toxic and Harmful VOC Concentration Detection Range	0～2000ppm (10-6);
Combustible Gas Detection Range	0-100% LEL (Lower Explosive Limit)
Oxygen Concentration Detection Range	0～30%Vol;
Volatile and Toxic Gas Detection Accuracy	Generally between ±2% and ±6%
Combustible VOC Gas Detection Accuracy	Photoionization detection (PID) catalytic combustion ±2% to ±5%
Oxygen Detection Accuracy	0.01%Vol
Nuclear Radiation Detection Unit
Cadmium zinc telluride sensor	Detects and displays in real-time the four types of radiation (α, β, γ, and χ) in the surrounding environment; alarms when exceeding the standard.
High-Precision, High-Sensitivity Detector	Cadmium zinc telluride semiconductor detector
Nuclear Radiation Dosage	≤ 0.1μSv/h; Cumulative nuclear dosage time: 9999 hours
Energy Range	50KeV~1.5MeV
Sensitivity	25cps/μSv/h (@662KeV)
Response Time	≤2 seconds
Interface Sensor
Gravity Sensing	Built-in
Gyroscope	Built-in
Compass	Built-in
Distance Sensing	Built-in
Photosensitive	Built-in
WIFI	WIFI 802.11(a/b/g/n) 2.4G+5.8G dual-band WIFI
Bluetooth BT	4.0(BLE) class 1.5 Transmission distance: 10m
4G/5G	GSM, WCDMA, TD-SCDMA, CDMA2000, LTE-FDD, LTE-TDD, Full Netcom
GPS/BDS	GPS, BD selectable
Machine Interface	SIM interface, TF card slot, standard USB 3.0, standard headphone jack, Type-C charging data
External Power Supply	DC 5V, maximum current 1.5A
Physical Parameters
Waterproof Sealing	IP67 (airtight)
Operating Temperature	-40℃～+60℃
Storage Temperature	-45℃～+70℃
Operating Humidity	Humidity less than 90% (non-condensing)
Power Supply	Built-in lithium battery 3.7V/5000mAh
Endurance Time	Approximately 8 hours (standby time > 300h)
Appearance Dimensions	180130110mm
Weight	Approximately 1400g
Power Supply	Built-in lithium battery 3.7V/5000mAh
Equipped Accessories
Data/Charging Cable	Type-C to USB
Gas Collection Tube	One
Battery	Three 26500 batteries @ 3200mA (low-temperature resistant to -40 degrees Celsius)
Charger	Standard 4-slot charger (with charging plug)
Data Transmission Base	Supports charging and data transmission
Instruction Manual	One
Packaging	ABS dedicated protective case (dimensions 410mm340mm150mm)
