With the rapid development of the air transport industry, airport safety issues have become increasingly prominent, especially the potential threat of birds to aircraft. To effectively address this challenge, we have launched an intelligent bird repellent system integrating high-power 532nm green laser, infrared thermal imaging, and laser ranging technology. The system utilizes the strong light sensitivity of birds to 532nm green laser, making birds quickly feel uncomfortable and fly away from the danger zone. At the same time, combined with infrared thermal imaging technology, the system can quickly capture and track bird activities under all-weather conditions, accurately identifying birds with unstable flight. In addition, laser ranging technology can measure the distance between birds and the light source in real time, accurately grasping their aerial activity range and flight posture. This intelligent bird repellent system not only significantly improves airport flight safety but also effectively reduces the potential impact on the environment, demonstrating high practical application value and market prospects.

Core Functions

Compact size, easy to carry;

Equipped with infrared thermal imaging and green laser functions, it can be used separately in different environments

Short power-on time, long standby time, stable and reliable performance;

Strong shock and vibration resistance, ultra-high protection level, suitable for various harsh environments;

Can take photos and videos, large storage space, convenient for information storage and evidence collection;

High-definition imaging, long and wide detection distance, with infrared anti-reflection film and laser output;

The lens adopts aspherical technology, with better optical performance, and the imaging is clearer with the central calibration method;

Technical Highlights

Built-in multiple sensor groups, including WIFI, azimuth, pitch, roll, etc., supporting multi-angle locking; the bird repellent device supports multiple setting modes

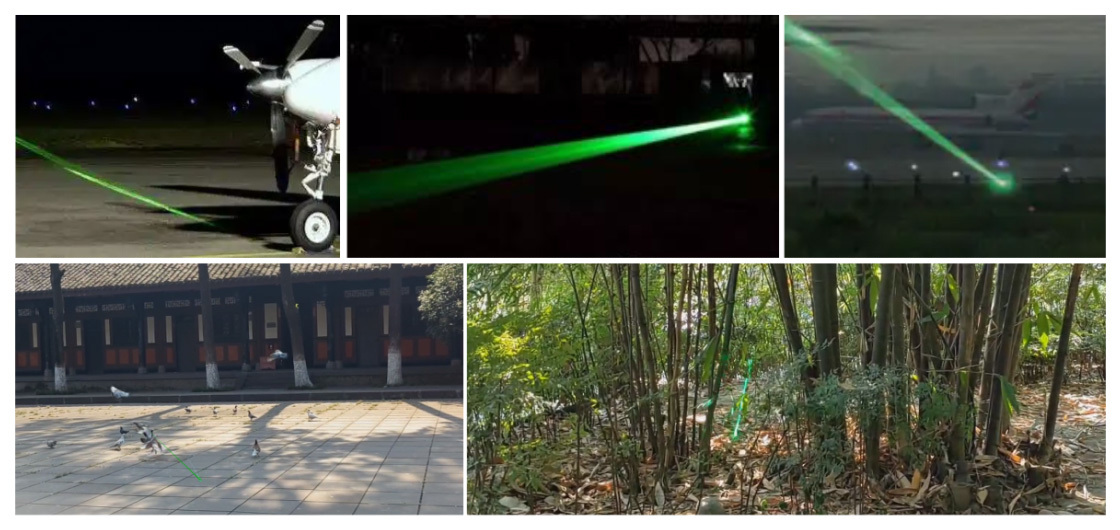

Application Scenarios

Farmland and Orchards:

During the growth of crops and fruit trees, birds often peck at fruits or seeds, causing losses to crops. The portable green laser bird repellent system can effectively drive away birds and protect crop harvests.

Airport Surroundings:

Airports are areas with frequent bird activity. Birds flying or roosting on runways may pose safety hazards to aircraft take-off and landing. This system can remotely and efficiently drive away birds around airports to ensure flight safety.

High-voltage Power Grids and Substations:

Birds like to build nests on high-voltage power lines or substation equipment, which may lead to short circuits or equipment failures. The portable green laser bird repellent system can continuously emit laser signals to force birds away from these dangerous areas.

Large Warehouses and Open-air Yards:

In these areas, birds may roost on goods or peck at packaging materials, causing damage to stored goods. Using a portable green laser bird repellent system can maintain the cleanliness and safety of warehouses and yards.

Urban Parks and Green Spaces:

Although urban parks and green spaces are ideal habitats for birds, in certain specific areas (such as sports fields, children's playgrounds, etc.), bird activity may cause interference to humans. The portable green laser bird repellent system can provide effective bird management in these areas.

Summary

The SSK-BirdRepe-EPlus portable green laser bird repellent system, with its unique technological advantages and wide range of application scenarios, demonstrates its important value in bird management. By integrating high-power green laser, infrared thermal imaging, and laser ranging technology, the system not only achieves efficient and safe bird repelling effects but also has all-weather operation capability and flexible portability. Whether in farmland and orchards, airport surroundings, high-voltage power grids, or large warehouses, SSK-BirdRepe-EPlus can perform excellently, providing reliable bird control solutions for various users.

In addition, the system also has advantages such as long-lasting battery life and high-definition imaging, further enhancing its practicality and user experience. Beijing Sosk Technology Development Co., Ltd., as the R&D and manufacturer of this product, is committed to providing users with high-quality products and services to ensure airport flight safety and reduce the potential impact of birds on the environment. In the future, with the continuous advancement of technology and the expansion of application fields, the SSK-BirdRepe-EPlus portable green laser bird repellent system is expected to provide more comprehensive and efficient bird management solutions for more users.

Equipment Parameters

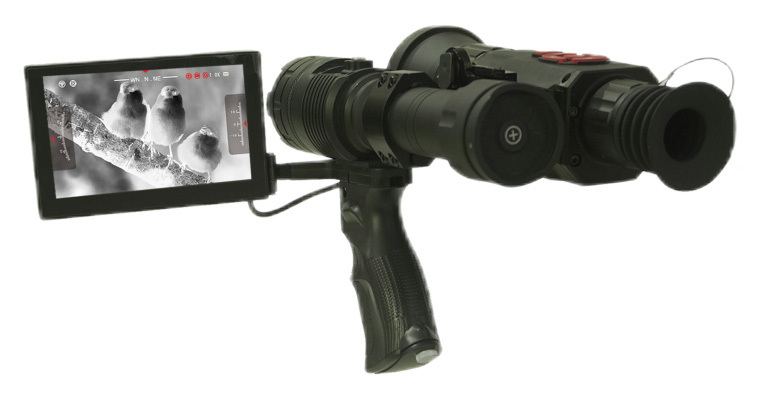

Portable Green Laser Bird Repellent System (SSK-BirdRepe-EPlus) SSK/NW-EP
Thermal Imaging Parameters
Detector Type	Uncooled vanadium oxide or polysilicon
Operating Band	8～14μm
Sensitivity	≤45mk@300K
Correction	Non-uniformity
Detector Specifications	384×288 / 640×512 (12μm)
Field of View	4.8°×3.6° (384 resolution) 8.0°×6.5° (640 resolution)
Polarity	Supports 9 color modes including white hot/black hot/brown/iron red/rainbow
Image Frame Rate	384/640 (50Hz)
Lens Parameters	54mm @F=1.0
Electronic Zoom	1～8x continuous zoom
Zoom Mode	Normal zoom/picture-in-picture zoom
Hot Spot Tracking	Support
Dashed lines and colors	5 types of dashed lines, 5 dashed line modes
Detection distance	2000 meters (typical climate conditions) / 5000 meters (typical climate conditions)
Recognition distance	500 meters (typical climate conditions) / 800 meters (typical climate conditions)
Bird repelling distance	For birds (20x20cm) ≥2000 meters (night clear conditions)
Laser Repelling System
Laser safety level	CLASS 2M
Wavelength	Output wavelength is 532nm±5nm
Laser life	8000-10000 hours
Laser homogenization	Microlens array
Irradiation angle	3.5°/ 5° optional
Laser divergence angle	Laser divergence angle does not exceed 5mrad;
Spot diameter	The spot diameter at the laser outlet is no more than 1cm
Maximum light power output	No less than 2000mW
Output power mode	700mW, 900mW, 1100mW, 1300mW, 1500mW, 2000mW, strobe mode
Angle locking range	-45°～ 90° range arbitrary locking
Laser ranging
Ranging distance	Up to 1500 meters (error ±1m)
Ranging wavelength	Pulse 905nm
Ranging frequency	1-10hz adaptive
Image parameters
Video recording, photo taking, playback	Supports one-button photo and video recording, and on-site playback of videos and images
Image storage	JPG
Image output	CVBS@720×576
Storage capacity	4-256G
Interface description
Data export	TAPE-C 2.0
Video output	Micro HDMI
Wireless transmission	WIFI / Hotspot, supports mobile terminal APP software for viewing and live broadcasting on mobile phones, tablets, and laptops (Facebook, Linkedin, Twitter, Douyin, TikTok, etc.)
Data sensor
Azimuth sensor	Static accuracy 0.05° dynamic 0.1°
Accelerometer	2G-60G internally adjustable
Roll angle sensor	Range ±90° static accuracy 0.05° dynamic 0.1°
Pitch angle sensor	Range ±90° static accuracy 0.05° dynamic 0.1°
Physical parameters
Waterproof seal	IP66 (airtight)
Operating temperature	-40°℃ ～+ 60℃
Storage temperature	-45℃～+ 70℃
Operating humidity	Humidity less than 90% (non-condensing)
Working time	Continuous working time >7 hours
Product dimensions	255×105×83（mm）
Product weight	≤2.1KG (including battery)
Accessories
Composite cable	USB data/charging
Charger	Dedicated multi-section charger
Charging plug	US standard/European standard

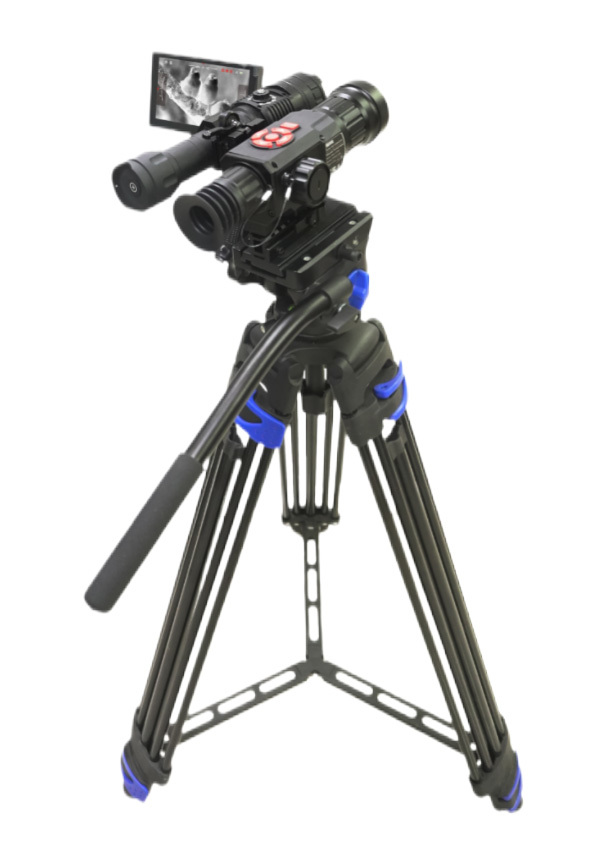

Tripod	15kg load capacity
Manual	One
Packaging	ABS dedicated protective case
