Monocular Multifunction Low-Light Night Vision System Solution (Beidou Ranging Type)
Current model: SSK-WT
Retail price
Market price
Remaining inventory
隐藏域元素占位
Product Features
Scheme Features
Small size , Built-in Wi‑Fi, hotspot, azimuth, roll angle, and multiple other sensor groups.
Low-power, ultra-long standby, and quick startup. , with a response time of less than 5 seconds, an ultra-long standby time of up to 5 hours, stable and reliable performance, and the ability to operate seamlessly day and night.
One-touch photo and video capture, making it easy to record monitoring details. ; It boasts excellent drop and seismic resistance, with an ultra-high protection rating, making it ideal for harsh monitoring environments.
It enables one-touch photo and video capture, with video playback that makes it easy to pinpoint monitoring details.
Supports up to 256 GB, facilitating the storage, transmission, and retrieval of information for forensic purposes.
The product features a unique image-processing algorithm with remarkable noise reduction, along with proprietary digital low-light enhancement, picture-in-picture magnification, and automatic image‑stretching technologies, delivering performance that surpasses that of typical consumer‑grade products on the market.
A 1024×768 ultra-high-resolution OLED eyepiece system delivers sharper imaging.
Professional HD lens imaging, with 1–8x continuous electronic zoom, delivers longer detection range and wider coverage.

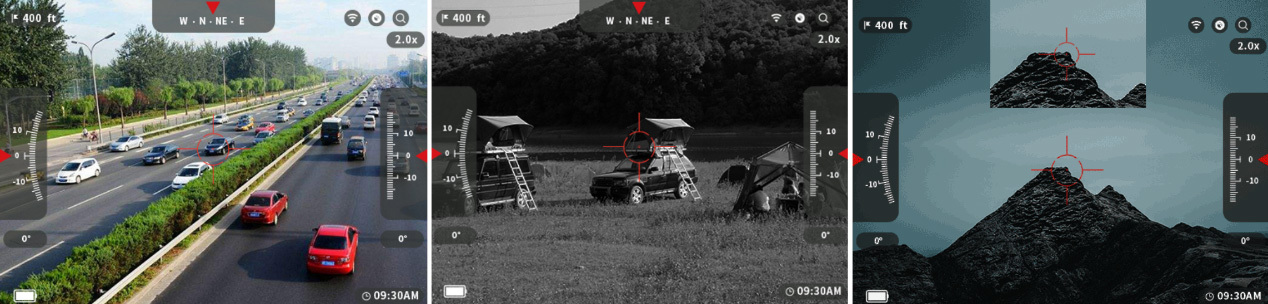

Three modes—full color, black and white, and low-light—are freely selectable to suit user preferences.
The optical materials utilize a broad‑range near‑infrared spectrum; the lenses are coated with an infrared‑transmitting anti‑reflection film and a water‑ and dust‑repellent coating for easy cleaning and enhanced protection. The exterior is crafted from ABS, providing excellent workability and reliability.
Parameter Specifications
| Monocular multifunctional low-light night vision |
|
| Photodetector Parameters |
|
| Detector Type |
1/1.8” Progressive Scan CMOS |
| Detector Input Signal Type |
BT1120 |
| Lens focal length |
Manual focus low-light lens, 50mm, @(F0.9) |
| Resolution |
1920×1080 |
| Maximum frame rate |
50 frames per second (1920×1080) |
| Color illuminance |
0.0005Lux |
| Black-and-white illuminance |
0.000 lLux@ (F0.8, AGC ON) |
| Signal-to-noise ratio |
55dB |
| Infrared fill light |
Optional wavelengths: 808 nm / 940 nm / 980 nm |
| Wide Dynamic Range |
True Wide Dynamic Range |
| Electronic shutter |
Automatic/Manual |
| White balance |
Automatic/Manual |
| Focusing method |
Manual |
| Electronic amplification |
1–8× continuous magnification |
| Zoom mode |
Zoom/Picture-in-Picture Zoom |
| Display Mode |
Full-color mode / Black-and-white mode / Low-light mode |
| Division line |
Multiple options available |
| Reticle color |
Multiple options available |
| Detection range indicator |
For people (1.8 m x 0.5 m) / For vehicles (2.3 m x 2.3 m) |
| Detection range |
1000 meters (typical climatic conditions) / 2500 meters (typical climatic conditions) |
| Recognition distance |
280 meters (typical climatic conditions) / 600 meters (typical climatic conditions) |
| Eyepiece parameters |
|
| Display screen |
0.5-inch OLED, resolution 1024×768 |
| Contrast |
1000:1 |
| Eye relief |
35mm |
| Eyepiece magnification |
Available in multiple magnification options: 10x, 12x, and 15x. |
| Image parameters |
|
| Video format |
MP4 |
| Image Storage |
JPG |
| Image resolution |
1024x768 |
| Storage capacity |
Supports up to 256 GB. |
| Image output |
HDMI@1920×1080 |
| Take a photo and review it later. |
Support |
| Video Replay |
Support |
| Interface Description |
|
| Data Export |
TAPE-C 2.0 |
| External power supply |
DC 5V |
| Data Access |
TTL can be externally connected to a wind vane/laser rangefinder. |
| Wireless transmission |
Supports both Wi‑Fi and hotspot modes, enabling viewing and live streaming via mobile apps on smartphones, tablets, and laptops (on platforms such as Facebook, LinkedIn, Twitter, Douyin, TikTok, and more). |
| Data sensor |
|
| Laser rangefinding |
Ranging distance: 10–1500 meters |
| Ranging wavelength |
Pulse 905 nm |
| Ranging frequency |
3–20 Hz adaptive |
| Laser divergence angle |
3mrad |
| Ranging accuracy |
±1m |
| Impact sensor |
Supports impact‑triggered automatic recording, with video automatically pre‑recorded and saved both before and after the impact; the duration of the impact video and the impact sensitivity are both adjustable. |
| One-click gun calibration |
Intelligent laser recognition algorithm for correcting reticle lines |
| Azimuth sensor |
Static accuracy: 0.05°; dynamic accuracy: 0.1° |
| Accelerometer |
Internally adjustable from 2G to 60G |
| Roll angle sensor |
Range: ±90°; Static accuracy: 0.05°; Dynamic accuracy: 0.1° |
| Pitch angle sensor |
Range: ±90°; Static accuracy: 0.05°; Dynamic accuracy: 0.1° |
| Physical parameters |
|
| Operating ambient temperature |
-40°C to +60°C |
| Storage temperature |
-45℃ to +70℃ |
| Operating humidity |
Humidity less than 90% (no condensation) |
| Operating voltage range |
DC 2.6–5.5 V |
| Typical power consumption |
≤3.0W |
| Reverse connection protection |
There is |
| Overvoltage and undervoltage protection |
There is |
| Product dimensions |
32×32×44 (mm) |
Standard Package Contents
Content update in progress,...
Upon unpacking and use, the standard package includes the above accessories.
