Project Introduction

The road vehicle overheating early‑warning system is an intelligent traffic‑safety solution that integrates license‑plate recognition, infrared thermal imaging for temperature measurement, backend data analysis, overheating alerts, and synchronized audio‑visual notifications. Designed for continuous vehicle flow on highways, the system enables non‑contact temperature monitoring and rapid identification of passing vehicles, providing real‑time warnings, data logging, and coordinated response for vehicles at risk of abnormal temperature rise. This helps management authorities enhance road safety prevention and control, reducing the risks of vehicle spontaneous combustion, mechanical overheating, and sudden accidents.



I. Value of the Plan

1.1 Why is a road vehicle over-temperature warning system needed?

On key road segments such as highways, toll stations, service areas, and bridges and tunnels, factors like prolonged vehicle operation, heavy‑load traffic, fluctuating ambient temperatures, brake or tire malfunctions, and thermal runaway in the engine compartment can all trigger localized overheating and even vehicle fires. If these issues are not detected in advance, they can easily lead to traffic congestion, accidents, fire hazards, and secondary safety incidents.

Traditional manual inspection methods suffer from issues such as delayed detection, limited coverage, and insufficient continuity. In contrast, the road vehicle overheating early‑warning system leverages real-time front‑end sensing and intelligent back‑end analysis to continuously monitor vehicle temperatures, providing timely warnings before risks escalate and helping road management authorities establish a more efficient, proactive prevention and control mechanism.

1.2 Core Value of the Plan

• Non-contact rapid screening : Identification and temperature measurement can be completed while vehicles are in motion, eliminating the need to stop for inspection.
• Rapid detection of abnormal vehicles : Provide timely warnings for targets exhibiting abnormal temperature rises in areas such as the engine compartment, tires, and brake-related components.
• License plate and temperature information are synchronously linked. : Establish a record linking the target vehicle’s identity with its thermal information, facilitating subsequent tracking and response.
• Strong interoperability It can interface with audio‑visual alarms, information display boards, platform alarm interfaces, and more, enabling synchronized response between the现场 (on-site) and the backend.
• Suitable for continuous operation scenarios : Meets the requirements for long-term, stable deployment in scenarios such as highway toll plazas, service area entrances, and key checkpoint locations.



II. Overview of the Plan

2.1 Scheme Definition

The road vehicle overheating early-warning system is an intelligent alert platform designed for traffic safety management applications. Built on high-performance front-end data collection devices and supported by back-end capabilities for data integration, intelligent analysis, and alarm linkage, the system monitors vehicles in transit. License plate recognition + thermal imaging temperature measurement + data comparison + over-temperature alert + linked notification Closed-loop management.

2.2 Scheme Composition

This plan typically consists of the following components:

Front-end Perception Layer

• License Plate Recognition Acquisition Unit
• Infrared thermal imaging temperature measurement unit
• Visible Light–Assisted Acquisition Unit
• On-site fill light/support mounting structure

Edge Processing Layer

• Data Ingestion and Preprocessing Module
• Multi-source Information Time Synchronization and Target Association Module

Platform Analytics Layer

• Temperature Anomaly Detection Engine
• License Plate and Heatmap Matching Management
• Historical Data Retrieval and Trend Analysis
• Event Logging and Alarm Management Module

Joint Response Layer

• Audio-visual warning device
• Intelligence Board Interlinked Alert
• Management Platform Alert Pop-up
• Subsequent manual verification and handling process interface

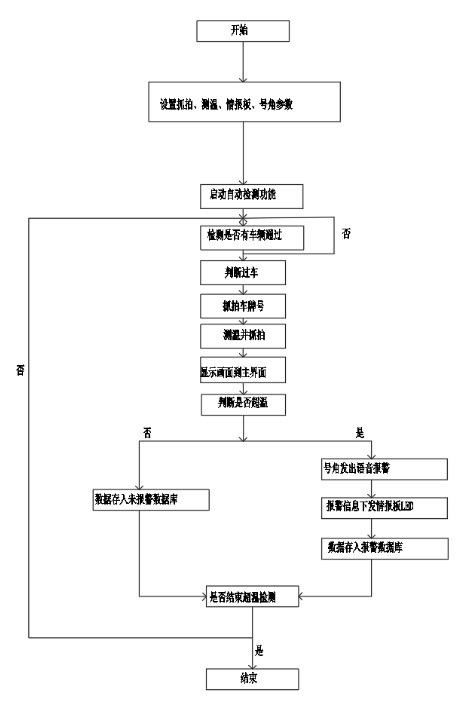

III. System Workflow

3.1 Process Description

When a vehicle passes through the monitored area, the system automatically executes the following sequence:

① Vehicle enters the monitoring area

Front-end devices capture target vehicles in real time, acquiring both full‑vehicle traffic images and thermal imaging data.

② License Plate Recognition

The system automatically recognizes vehicle license plate information and supports the identification of various types of plates, including standard plates and new-energy vehicle plates.

③ Temperature Acquisition and Heatmap Generation

The infrared thermal imaging unit simultaneously performs temperature measurements on critical vehicle areas, generating a temperature distribution map and providing temperature readings.

④ Data Correlation and Backend Analytics

The system integrates license plate data, temperature readings, heat map information, and time‑and‑location metadata into a unified dataset, which is then uploaded to the backend platform for intelligent analysis.

⑤ Anomaly Detection and Early Warning Triggering

When the temperature in a specific vehicle area exceeds the set threshold or an obvious abnormal thermal distribution is detected, the system automatically triggers an over-temperature warning.

⑥ On-site coordination and backend logging

Based on project requirements, the system can integrate with audio‑visual alarms, information display boards, and platform alert windows, while also archiving incidents to facilitate subsequent tracking and statistical analysis.

Module Description:
This is the core closed-loop of the entire system, spanning from “vehicle detection” to “license‑plate recognition,” from “thermal‑imaging temperature measurement” to “anomaly assessment,” and further to “alarm linkage” and “event logging,” thereby enabling end-to-end management of road‑vehicle overheating risks.



IV. Demonstration of Core Competencies

4.1 License Plate Recognition Capability

The system is equipped with a high-precision license plate recognition module that, leveraging mature OCR algorithms and intelligent object‑extraction capabilities, enables rapid identification and recording of passing vehicle license plates. Even in complex road conditions, continuous‑vehicle‑passing scenarios, and across a wide range of license plate types, the system maintains robust stability and adaptability.

Module Highlights:

• Supports recognition of various license plate types, including standard plates and new-energy vehicle plates.
• Suitable for rapid target capture in high-speed traffic scenarios.
• License plate information can be automatically linked to temperature measurement results.
• To provide a basis for subsequent traceability, verification, and coordinated response.

4.2 Infrared Thermal Imaging Temperature Measurement Capability

The system is equipped with a high-performance infrared thermal imaging acquisition unit, enabling rapid detection of vehicle surface thermal conditions, real-time generation of thermal maps, and analysis of temperatures in critical target areas. It is suitable for monitoring temperature rises in the engine compartment, tires, brake-related components, and other locations with abnormal heat sources.

Module Highlights:

• Non-contact rapid temperature measurement
• It can generate vehicle heatmaps, providing an intuitive visualization of heat distribution.
• Supports the detection of abnormal temperature rises in critical components.
• Helps to detect potential risks of spontaneous combustion and mechanical failure in advance.

4.3 Multi-Point Target Analysis Capability

To address the issue that vehicle thermal anomalies are not always confined to a single area, the system can perform comprehensive assessments across multiple critical zones based on project requirements, thereby preventing potential hazards from being overlooked due to insufficient single-point detection.

Module Highlights:

• Supports multi-region temperature measurement and analysis.
• More suitable for complex vehicle types and multi‑heat‑source scenarios.
• Reduce the probability of overlooking potential risks.
• Enhance the completeness of early warning assessments.

4.4 Backend Data Integration Capability

The system centrally uploads license‑plate information, temperature data, thermal‑image data, capture timestamps, and monitoring locations—collected at the edge—to the platform, enabling structured data management and providing continuous, traceable data support for traffic management.

Module Highlights:

• Unified management of license plates, images, temperature, time, and location.
• Supports historical data queries and incident retrospectives.
• Supports platform-based storage and scalable deployment.
• Provide a data foundation for subsequent statistical analysis and decision-making.

4.5 Intelligent Over-Temperature Warning Capability

The system features built-in over-temperature detection logic that, based on vehicle model characteristics, deployment location, environmental conditions, and project‑specific preset rules, enables rapid identification of temperature‑anomalous targets and triggers timely alerts, thereby enhancing early‑warning efficiency and the precision of management.

Module Highlights:

• Supports setting an over-temperature threshold.
• Supports automatic alerts for abnormal targets.
• Supports adjustment of early warning strategies across different scenarios.
• Accelerate risk detection and reduce the burden of manual review.

4.6 Audio-Visual and Peripheral Integration Capabilities

Upon the detection of an abnormal target, the system can activate audio‑visual warning devices, information display boards, or other management systems to promptly alert on-site personnel and drivers, thereby enhancing response efficiency.

Module Highlights:

• Can trigger a high‑visibility warning light and an audible alert.
• Can be linked to the intelligence display board to show early warning information.
• Can be integrated with existing traffic management systems.
• Support the establishment of a coordinated mechanism integrating “front-end detection—platform analysis and assessment—on-site response.”



V. Typical Application Scenarios

5.1 Highway Toll Plaza

Deploying the system at toll plaza entrances or key access points enables real-time temperature measurement and vehicle identification, allowing early detection of overheating risks before vehicles enter high‑priority areas and helping to prevent such hazards from spreading downstream.

Applicable value:

• Proactively screen for abnormal vehicles.
• Reduce the risk of sudden malfunctions or fires within the toll collection area.
• Suitable for deployment on long-distance roads and in areas with high patrol difficulty.

.2 Highway Service Area Entrance

Service areas are critical nodes for temporary vehicle停, inspections, and troubleshooting. By deploying this system at service‑area entrances, vehicles can be screened, and those exhibiting abnormal temperature increases can be promptly flagged, enabling drivers to complete repairs or conduct further diagnostics within the service area.

Applicable value:

• Provide drivers with advance warnings.
• Provides a basis for risk vehicle alerts in service area management.
• Enhance the safety and security capabilities of service areas.

5.3 Bridges, Tunnels, and Special Key Road Sections

On special road sections such as bridges, tunnels, long downhill grades, and continuous curves, overheating vehicles, brake malfunctions, or fires can lead to far more severe consequences. Deploying the system at these critical locations enables enhanced monitoring of the thermal conditions of vehicles traveling through high-risk stretches.

Applicable value:

• Enhance safety prevention capabilities on key road sections.
• Suitable for deployment in tunnel clusters, mountainous areas, and high-accident sections.
• Establish a more proactive risk prevention and control system for road operating entities.



VI. Advantages of the Plan

6.1 Efficient Frontend Data Collection

The system features rapid data acquisition tailored to road‑traffic scenarios, enabling license‑plate recognition and temperature measurement during normal vehicle passage, thereby meeting the requirements of continuous‑vehicle‑passing applications.

6.2 Powerful Backend Analytics

Leveraging platform-based data integration and intelligent analytics, the system enables rapid identification of temperature‑anomaly targets, event‑based classification and management, and the accumulation of historical data.

6.3 Complete Early-Warning Closed Loop

From front-end detection and back-end analysis to on-site coordinated alerts, a complete closed-loop system is established, preventing issues such as data collection without action or alarms without integration.

6.4 Excellent compatibility and extensibility

The system boasts strong platform compatibility and robust project‑adaptation capabilities, enabling seamless integration with existing traffic management devices, variable message signs, and platform systems, thereby facilitating future upgrades and expansions.

6.5 More in line with the development direction of smart transportation

As smart transportation and new infrastructure initiatives continue to advance, vehicle temperature anomaly‑alerting capabilities will increasingly become a key component of proactive road safety management. This solution demonstrates strong scenario adaptability and promising application prospects.



VII. Deployment Recommendations

7.1 Recommended Deployment Locations

• Toll plaza entrance or upstream monitoring point
• Service Area Entrance Ramp
• Key sections before and after bridges and tunnels
• Long downhill sections and areas with concentrated heavy-vehicle traffic
• Special road sections with a high fire risk

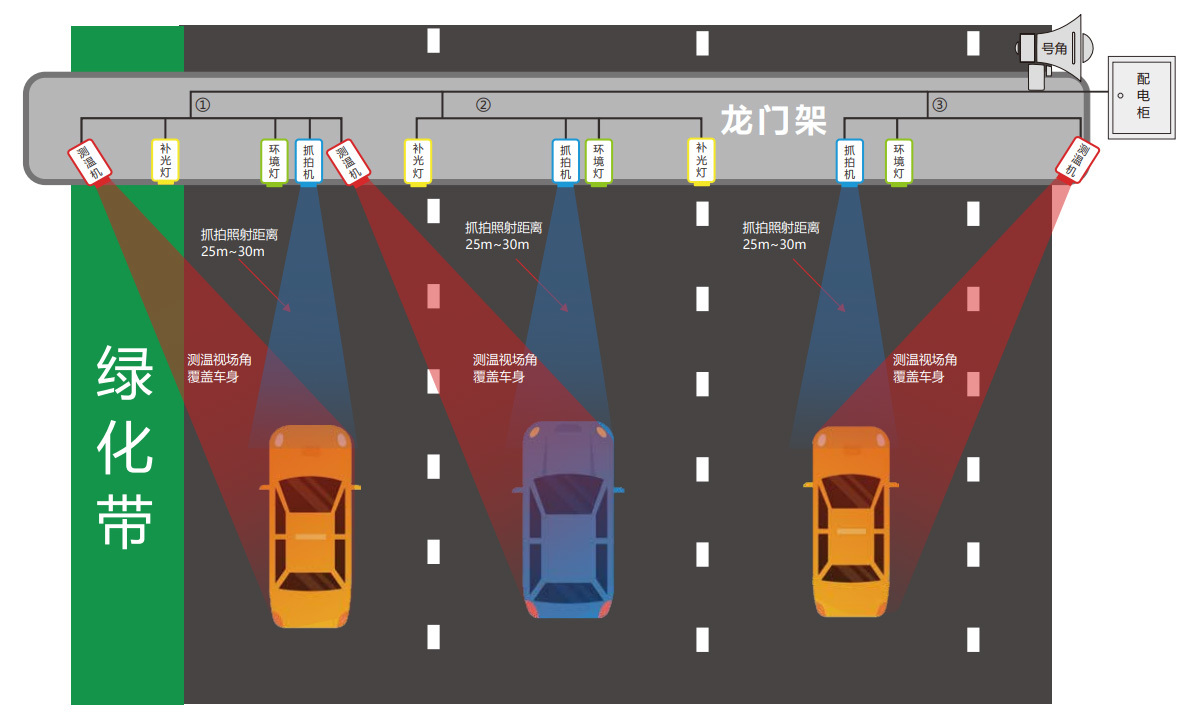

7.2 Recommended Deployment Principles

• Ensure that images are clear and information is complete when vehicles enter the monitoring area.
• Meets the coordinated angular requirements for vehicle thermal imaging and license plate capture.
• Installation optimization is conducted in consideration of the project’s road width, vehicle speed, and climatic conditions.
• Design alert correlation methods and response workflows in alignment with platform‑side requirements.



VIII. Platform-Generated Content

The system can generate the following information based on project requirements:

• Vehicle license plate information
• Vehicle capture image
• Vehicle thermal imaging image
• Abnormal temperature data
• Over-Temperature Warning Log
• Event time, location, and traffic information
• Alarm联动 status information
• Historical Data Query and Statistical Analysis Results



IX. Core Front-end Equipment

9.1 Composition of Core Equipment

• License Plate Recognition Acquisition Device
• Infrared thermal imaging temperature measurement equipment
• Visible-light-assisted device
• Platform Access and Transmission Unit
• Audio-visual alarm linkage device
• Mounting brackets and on-site ancillary units

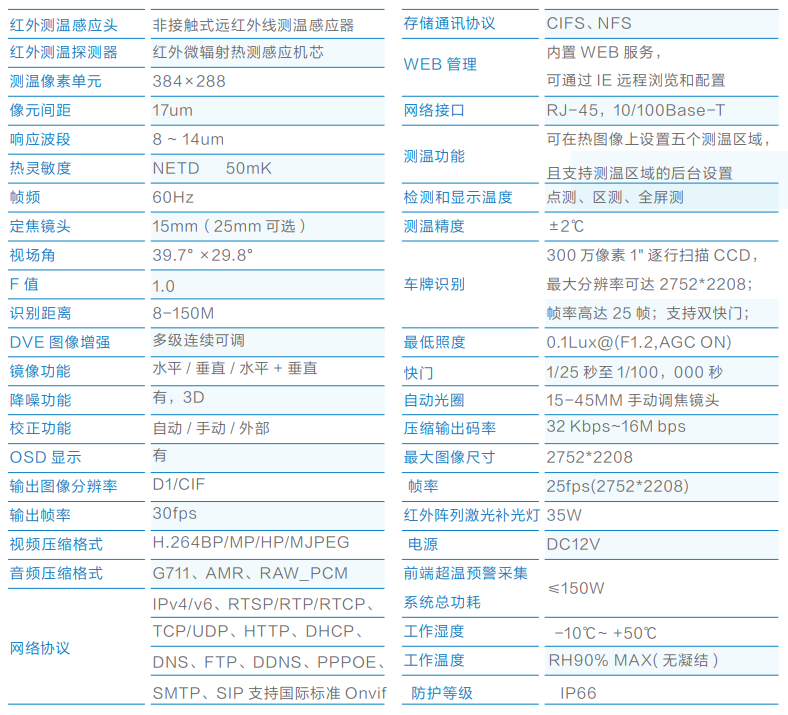

9.2 Core Equipment Parameters

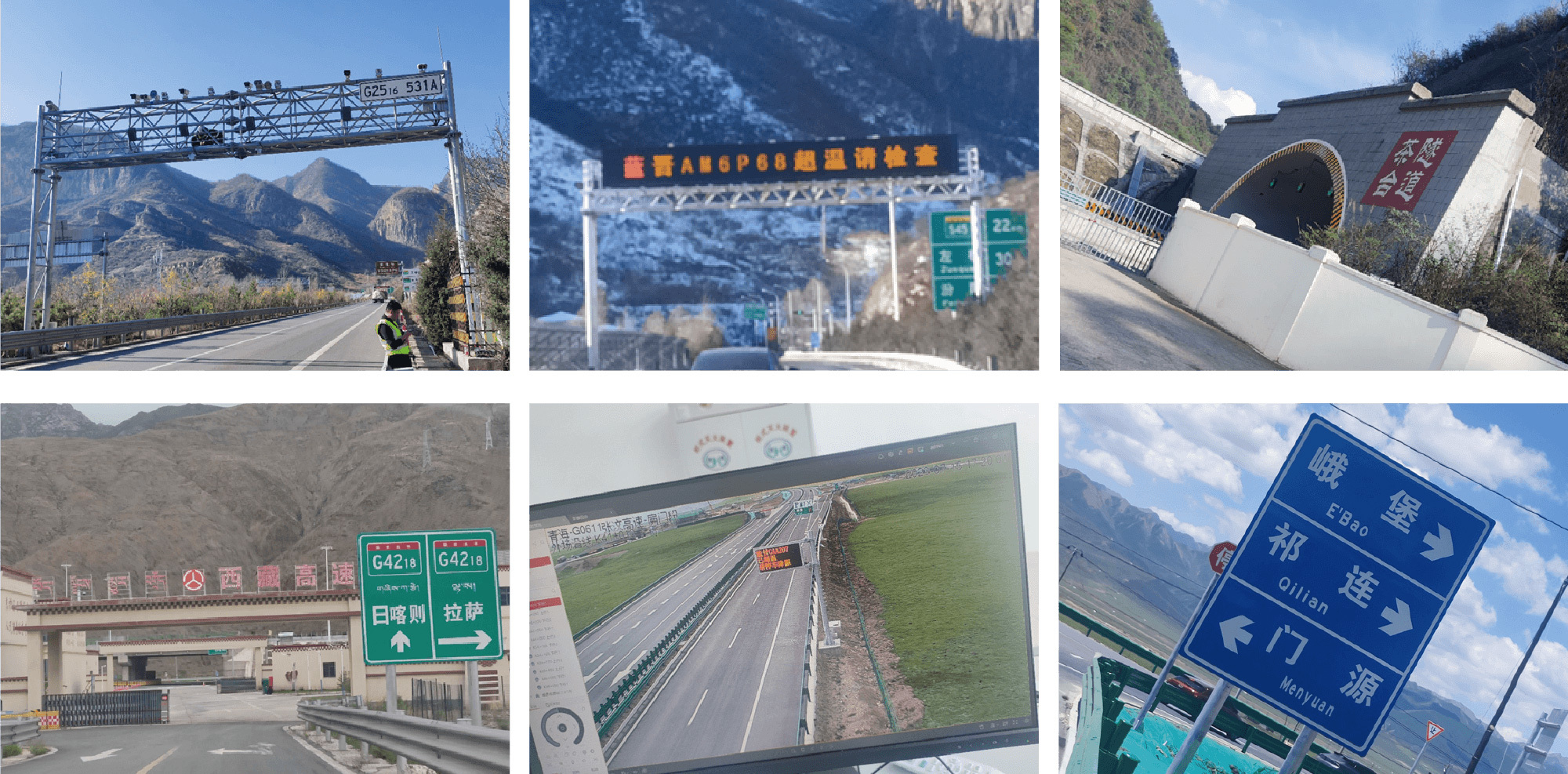

X. Historical Projects and Case Studies

The system can be widely deployed in key traffic‑intensive areas of expressways, service areas, tunnel entrances, bridge approaches, and other specialized safety‑monitoring scenarios.

Historical Project Case Studies ， We leverage real-world experience to support project deployment and deliver proven solutions to enhance road safety management.



XI. Conclusion

The road vehicle overheating early‑warning system is not merely a standalone temperature‑sensing device; it is an intelligent, proactive safety‑management solution designed to safeguard road traffic. Leveraging robust front‑end data‑collection capabilities and advanced back‑end analytics, it enables continuous monitoring of vehicles’ thermal conditions and timely detection of anomalies, helping authorities identify at‑risk vehicles earlier, trigger on‑site alerts more swiftly, and provide more effective support for subsequent response measures.

Against the backdrop of ongoing smart‑transportation upgrades, this solution offers more forward‑looking safety‑management and prevention measures for highways, service areas, and key road segments, further enhancing operational efficiency and traffic safety.

Please contact our technical and sales teams to receive a deployment solution tailored to your project’s specific requirements, along with equipment selection recommendations and implementation support.
