Monocular Multifunctional Thermal Imaging System Solution (Beidou Ranging Type)
Current model: SSK-HT
Retail price
Market price
Remaining inventory
隐藏域元素占位
Product Features
Scheme Features
Small size , built-in Wi‑Fi, hotspot, azimuth, elevation angle, roll angle, and multiple other sensor groups.
Ultra-long standby with low power consumption , boot-up time less than 5 seconds, ultra-low power consumption.
One-touch photo and video capture, making it easy to record monitoring details. ; Supports up to 256 GB of storage.
Unique image-processing algorithms deliver remarkable noise reduction. , featuring a unique digital enhancement algorithm, as well as picture-in-picture magnification and automatic image stretching, delivering performance that surpasses that of typical thermal imaging products on the market.
1024×768 high-resolution OLED eyepiece system , resulting in sharper system imaging; 50 Hz real-time imaging ensures rapid motion without trailing.
Professional long-focus germanium lenses deliver 1–8× continuous digital zoom, enabling longer detection ranges and wider coverage.

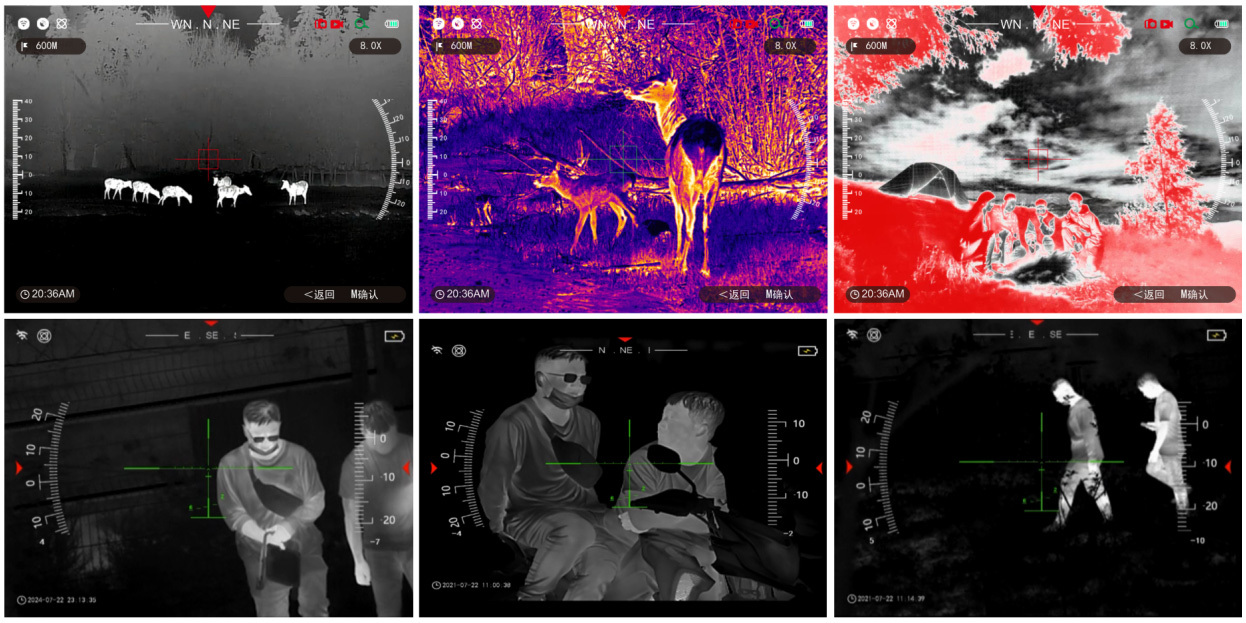

White-hot, black-hot, brown, iron-red, and rainbow color modes are available; brightness and gain are adjustable (making it easier to detect targets even in extremely harsh environments).
Supports impact recording During a collision, it can fully and effectively record the entire impact process and preserve evidence.
One-click gun calibration During shooting, ballistic deviations can occur. One‑click gun calibration allows for faster firearm adjustment, enabling more precise targeting.
Dead Pixel Repair When dead pixels appear on the display, they can be repaired automatically, ensuring the integrity of the image.
Supports contour highlighting and hotspot tracking. During nighttime operations, it can outline the silhouettes of both humans and prey, and when combined with hotspot tracking, it enables more effective target identification and pursuit.
Parameter Specifications
| Monocular multifunctional thermal imaging |
|
| Thermal imaging parameters |
|
| Detector Input Signal Type |
BT656 |
| Types of detectors |
Vanadium oxide polycrystalline silicon |
| Detector resolution |
384×288 / 640×512 (12 μm optional) |
| Correction |
Non-uniform |
| Display polarity |
Black Heat/White Heat |
| Image frame rate |
50Hz |
| Image denoising |
Digital filtering |
| Electronic amplification |
1–8× continuous magnification |
| Zoom mode |
Standard zoom / Picture-in-picture zoom |
| Hotspot Tracking |
Support |
| Image enhancement |
Support |
| Pseudo-color mode |
Supports nine color modes, including White Hot, Black Hot, Brown, Iron Red, and Rainbow. |
| Division lines and colors |
5 types of dividing lines, 5 dividing line modes |
| Gain |
Automatic/Manual |
| Eyepiece parameters |
|
| Display screen |
0.5-inch and 0.39-inch OLED, with a resolution of 1024×768 |
| Contrast |
1000:1 |
| Eyepiece magnification |
Available in multiple magnification options: 10x, 12x, and 15x. |
| Image parameters |
|
| Video and photo playback |
Supports one-tap photo and video capture, and allows local playback of videos and images. |
| Video format |
MP4 |
| Image Storage |
JPG |
| Image output |
HDMI@1024×768 CVBS@720*576 |
| Image resolution |
1024×768@50HZ |
| Storage capacity |
32GB–256GB |
| Interface Description |
|
| Data Export |
TAPE-C 2.0 |
| Data storage |
CF card |
| Video output |
Micro HDMI |
| External power supply |
DC 5V, maximum current 1.5A |
| Data Access |
TTL can be externally connected to a wind vane, laser rangefinder, GPS, and DBS. |
| Wireless transmission |
Wi‑Fi/hotspot, supporting mobile viewing and live streaming via apps on smartphones, tablets, and laptops (on platforms such as Facebook, LinkedIn, Twitter, Douyin, TikTok, etc.). |
| Positioning |
Supports GPS and DBS data access. |
| Laser rangefinding |
|
| Ranging distance |
1200 meters |
| Ranging wavelength |
Pulse 905 nm |
| Ranging frequency |
1–25 Hz adaptive |
| Ranging accuracy |
±1m |
| Data sensor |
|
| Impact footage |
Supports impact‑triggered automatic recording, with video automatically pre‑recorded and saved both before and after the impact; the duration of the impact‑triggered video and the impact sensitivity are both adjustable. |
| One-click gun calibration |
AI-powered hotspot detection and correction |
| Azimuth sensor |
Static accuracy: 0.05°; dynamic accuracy: 0.1° |
| Accelerometer |
Adjustable from 2G to 60G via menu |
| Roll angle sensor |
Range: ±90°; Static accuracy: 0.05°; Dynamic accuracy: 0.1° |
| Pitch angle sensor |
Range: ±90°; Static accuracy: 0.05°; Dynamic accuracy: 0.1° |
| Target Positioning |
Supported (requires laser rangefinding and GPS integration) |
| Physical parameters |
|
| Operating ambient temperature |
-40°C to +60°C |
| Storage temperature |
-45℃ to +70℃ |
| Operating humidity |
Humidity less than 90% (no condensation) |
| Operating voltage range |
DC 2.6–5.5 V |
| Typical power consumption |
≤2.8W |
| Reverse connection protection |
There is |
| Over- and undervoltage protection |
There is |
| Product dimensions |
32×32×44 (mm) |
| Equipped with accessories |
|
| Charging cable |
USB to TAPE-C |
Standard Package Contents
Content update in progress,...
Upon unpacking and use, the standard package includes the above accessories.
