High-Definition Multispectral Ultra-Long-Range Shipborne Electro-Optical Gimbal

The SSK-HDK8000 multi-spectral, beyond-line-of-sight shipborne electro-optical system features a long-focal-length fog-penetrating lens, a high-definition camera, a large-aperture infrared thermal imaging lens, and a highly sensitive detector—combined with a high-precision gyro-stabilized servo turntable through advanced scientific methods. Designed specifically for applications such as border and maritime defense, naval operations, and forest fire prevention, this system delivers exceptional long-range day-and-night surveillance capabilities. It boasts cutting-edge technological advantages, including precise positioning, robust resistance to strong winds, corrosion, extreme cold, and image stabilization, along with reliable tracking performance—making it perfectly suited for 24-hour, all-weather monitoring even in harsh environmental conditions.

Guojin@settall.com

+86 010-63256377

Category:

Security Series

Photoelectric turntable series

Retail Price

Market Price

Leave a Message

High-Definition Multispectral Ultra-Long-Range Shipborne Electro-Optical Gimbal

SSK-HDK8000

Guojin@settall.com

+86 010-63256377

Category:

Security Series

Photoelectric turntable series

Product Consulting Related Products File Download

Product Overview

The SSK-HDK8000 multi-spectral, beyond-line-of-sight shipborne electro-optical system features a long-focal-length fog-penetrating lens, high-definition camera, large-aperture infrared thermal imaging lens, and a highly sensitive detector—combined with a high-precision gyro-stabilized servo turntable developed through advanced scientific methods. Designed specifically for applications such as border and maritime defense, naval operations, and forest fire prevention, this system delivers exceptional long-range day-and-night surveillance capabilities. It boasts cutting-edge technological advantages, including precise positioning, robust resistance to strong winds, corrosion, extreme cold, and image stabilization, along with advanced tracking functionality, ensuring reliable 24-hour monitoring even in harsh environmental conditions.

The SSK/NW-HDK5000 series large-scale high-definition multispectral electro-optical pan-tilt system integrates multiple functions, including target observation, battlefield surveillance, automatic alerting, long-distance control, automated tracking, and image stabilization. It is equipped with an infrared thermal imaging system, a laser night vision system, a laser rangefinding system, GPS positioning, and other advanced components. The system features all-weather imaging capabilities, offering both color and black-and-white cameras, as well as 11 selectable and switchable thermal imaging color palettes. During the day, it can detect targets at distances up to 20,000 meters, while at night, its maximum detection range extends to 15,000 meters. This product boasts high technological sophistication, seamless system integration, and exceptional practicality.

This series of photoelectric pan-tilt platforms delivers crisp, high-definition imaging. The laser night vision system features one-touch automatic focusing, enabling seamless detection, automatic identification, continuous tracking, and real-time alerts for moving targets. Equipped with long-focus lens options, it provides feedback on focal length and focus-position data, along with synchronized control capabilities. Additionally, the system boasts exceptional features such as ultra-high-precision positioning, robust resistance to strong winds, and superior protection against salt-spray corrosion. It can also be fitted with a gyro-stabilization system, effectively mitigating the effects of ship motion. As a result, this product offers a cutting-edge, integrated day-and-night monitoring solution tailored for critical applications like border surveillance, maritime defense, naval-mounted systems, and forest fire prevention.

Product Features

Lens features:

The lens features an automatic focusing function, eliminating the need for time-consuming fine adjustments.

The automatic color-to-black function enables all-weather monitoring—switching to color during the day and black-and-white at night—while also supporting fog-penetrating capabilities.

The lens magnification is linked to the laser irradiation angle.

Laser characteristics:

Laser-based synchronous zoom and preset functions make operation simpler and more intelligent.

When the laser is turned on, lock the camera into a black-and-white mode that can detect the laser.

By employing laser array homogenization technology, the beam quality is excellent, and the spot distribution is uniform.

Thermal imaging features:

Temperature-sensing imaging delivers clear visuals, enabling wide-range target searches as well as the ability to identify objects at long distances.

Image detail enhancement, along with 15 pseudo-color conversions such as black-hot and white-hot, and temperature alarm support.

Turntable features:

Tilting platform speed linked to lens magnification: The gimbal's movement speed automatically adjusts according to the lens's zoom level.

Predefined watch position: During monitoring, the system temporarily adjusts the pan-tilt unit to scan other locations, after which the gimbal automatically returns to this designated watch position.

Scanning modes: Preset-position automatic patrol route, 360-degree step-by-step scan, 360-degree horizontal scan, AB-point scan, Apple Peel function, patterned scan

Parameters can be returned: Pan-and-tilt angles, rotation degrees, operating status, lens focal length, laser irradiation angle, and other parameters can be transmitted back and remotely configured.

External access: Laser rangefinding, electronic gyroscope, radar integration, and automatic tracking system connectivity.

Multiple layers of protection:

It features multiple protections, including overheating, overcurrent, and overvoltage protection.

Intelligent temperature control system, waterproof design, and heat dissipation features ensure the device operates reliably over the long term.

Product Features

Available 24 hours a day, unaffected by lighting conditions, it can conduct all-around search, surveillance, and evidence collection of maritime vessels, floating objects at sea, and more.

Features manual and automatic scanning to search for targets

Using a manual joystick, airborne and maritime targets can be automatically or manually searched and observed at various rotation speeds (0–100°/s).

Features automatic and manual target tracking

You can manually manipulate the joystick to track the target. For targets requiring prolonged observation, you can switch to automatic tracking mode. The system employs advanced image processing and recognition technologies, along with automated target-tracking capabilities, ensuring that the target image remains centered within the field of view.

Featuring color and infrared thermal imaging systems

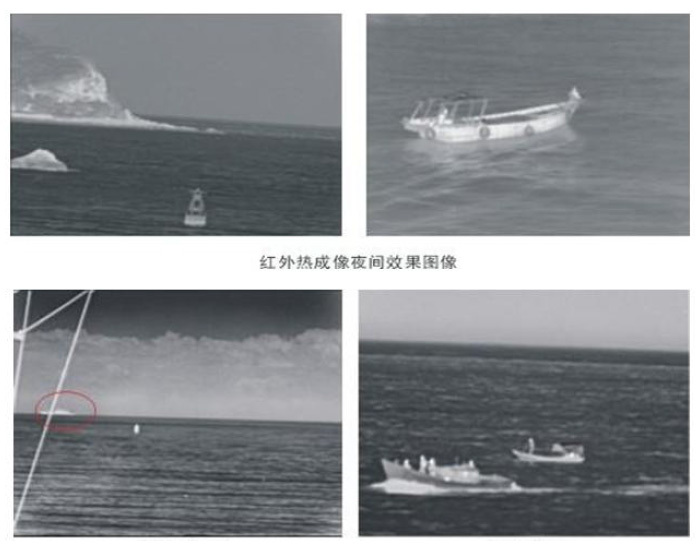

During the day, a digital HD color television camera system is used for observation, surveillance, and target searching. At night, targets are detected using an infrared thermal imager.

Equipped with real-time image recording functionality, it simultaneously displays and records information such as time and date on the same screen.

Using the system-integrated video recorder, images can be recorded in real time. It can receive serial data from the ship’s onboard radar, GPS (and Beidou) systems, and gyrocompass, providing geolocation information for image forensics. The current date and time are displayed on the LCD screen image, and the footage can also be saved as a picture file.

Features excellent image stabilization

Ships always sway when sailing on the sea, making it difficult to capture stable, clear images with camera systems—especially when using long focal lengths with narrow fields of view. This optoelectronic system incorporates a gyro-stabilized platform that effectively isolates the ship's motion, ensuring the stability of the optoelectronic imaging system and delivering sharp, steady visuals.

Designed specifically to withstand harsh marine environments, with salt-spray resistance.

The system was designed with full consideration for the marine environment in which shipborne equipment will operate. It features high structural precision, tight dimensional tolerances, and a pitch enclosure sealed with nitrogen-filled gas. Additionally, all circuit boards have undergone advanced three-proof treatments, and there are no external cables used. These measures ensure that the equipment can meet rigorous operational demands in harsh environments, offering exceptional resistance to vibration, wind, corrosion, and extreme temperature variations.

The system utilizes digital imaging to deliver high-definition, real-time network video.

Radar-guided tracking Equipped with a radar interface, it supports radar-linked guidance and tracking.

Product Performance

Specification Parameters

Name	Multispectral Ultra-Long-Range Shipborne Electro-Optical Sphere System
Model	SSK-HDK6000	SSK- HDK7000	SSK- HDK8000
Laser light source
Laser power	10W	15W	20W
Irradiation angle	1° to 60°
Laser wavelength	810nm (940/980nm optional)
Laser Zoom	Lens magnification linked with laser irradiation angle
Camera
Imaging device	1/1.8" CMOS
Pixel	2 million / 3 million / 6 million (optional)
AI	Supports tripwire and no-entry zone-based intelligent analysis functions, and transmits alarms via the national standard protocol.
Scanning Method	1:1逐行扫描
Minimum illumination	0.001 Lux (Color): 0.0001 Lux (Black & White)
Signal-to-Noise Ratio	>120dB
Day-and-night switching mode	ICR Infrared Filter Type
High-definition lens
Like face size	1/2"
Focal length	10–360mm	14.5–500mm	12.5 to 775 mm
Optical zoom	36 ×	34 ×	62X
Automatic Focus	Support
Clearing the Fog	Optional Support
Thermal imaging
Probe	Non-cooled focal plane 384×288 (640×512 optional)
AI	Supports tripwire and no-entry zone-based intelligent analysis functions, and transmits alarms via the national standard protocol.
Focal length	75 mm	100 mm	150 mm
	25–75 mm	20–100 mm	30–150 mm
Work Band	8–14 μm
Focusing Method	Automatic/Manual Focus
Polarity Transformation	15 pseudo-color conversions such as black-and-white, white-hot, and more
Spherical Turntable
Payload	The sphere features built-in ≥60kg.
Horizontal angle	0° to 360° continuous rotation
Vertical angle	-60° to +60°
Horizontal rotation speed	0.01° to 60°/s
Vertical rotation speed	0.01° to 40°/s
Acceleration	40°/s² to 60°/s²
Repeatability positioning accuracy	≤ ±0.1°
Pre-set position	2048 units, with power-off memory function
Patrol the Flight Route	16 Patrol Routes
Protective shield	Integrated spherical, fully sealed design—resistant to salt spray with a pH range of 6.5 to 7.2, and capable of continuous misting for 48 hours.
Lightning Protection Level	6kV surge, featuring multi-level lightning protection
Protection Level	IP66
Network Interface	1 RJ45 10M/100M adaptive Ethernet port, 1 RS-485 interface
Operating Temperature	-40℃ to 70℃
Power supply voltage	AC 220V to DC 48V
Appearance dimensions	550mm × 550mm × 995mm (L × W × H)
Overall device power consumption	≤190W
Entire machine weight	95KG
