Dual-purpose thermal imaging telescope (with Beidou laser ranging)

The SSK/NW-IRX series handheld thermal imager monocular night vision device consists of a far-infrared thermal imaging system and a high-resolution OLED imaging system. The product features high integration, small size, light weight, and low power consumption, making it a cost-effective product for mobile handheld fog penetration and night vision monitoring. This series of devices effectively addresses the need for 24/7 mobile day and night imaging. It supports 9 selectable color palettes for thermal imaging and offers switchable display functionality. It also boasts excellent fog penetration imaging capabilities, with a maximum detection range of 3000 meters day and night. It has been successfully applied to security fields requiring single-person patrols, including forest fire prevention, search and rescue, military border defense, maritime and water conservancy, waterways, nature reserves, public security and armed police, airports, cultural relic protection, and energy and mining.

Guojin@settall.com

+86 010-63256377

Category:

Individual Soldier Series

Security Series

Thermal Imaging Telescope Series

Retail Price

¥ 9999

Market Price

¥ 9999

Model
- IRX55
- IRX75

Leave a Message

Dual-purpose thermal imaging telescope (with Beidou laser ranging)

IRX55、IRX75

Guojin@settall.com

+86 010-63256377

Category:

Individual Soldier Series

Security Series

Thermal Imaging Telescope Series

Product Consulting Related Products File Download

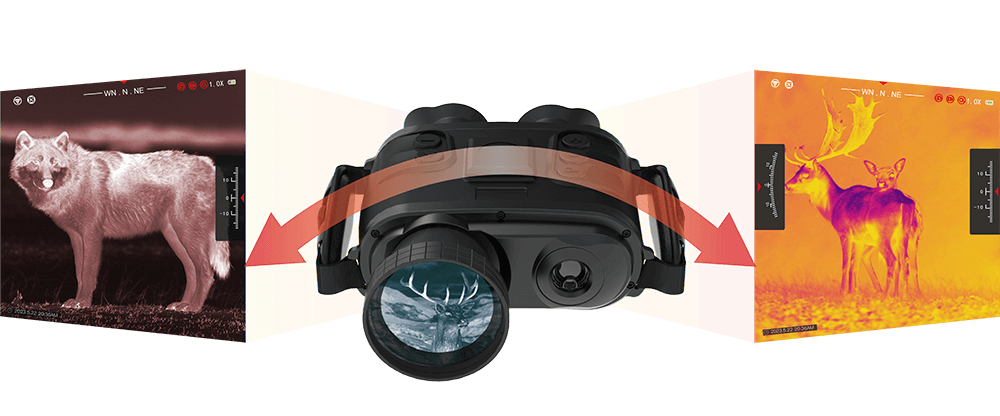

Display Mode

The night vision monocular thermal imager supports 9 color modes, including white hot/black hot/brown/iron red/rainbow, etc.

Night Mode

Clearly see every detail, whether it's outdoor adventure, night observation, or late-night work. Night vision equipment provides strong support, making nightlife more practical.

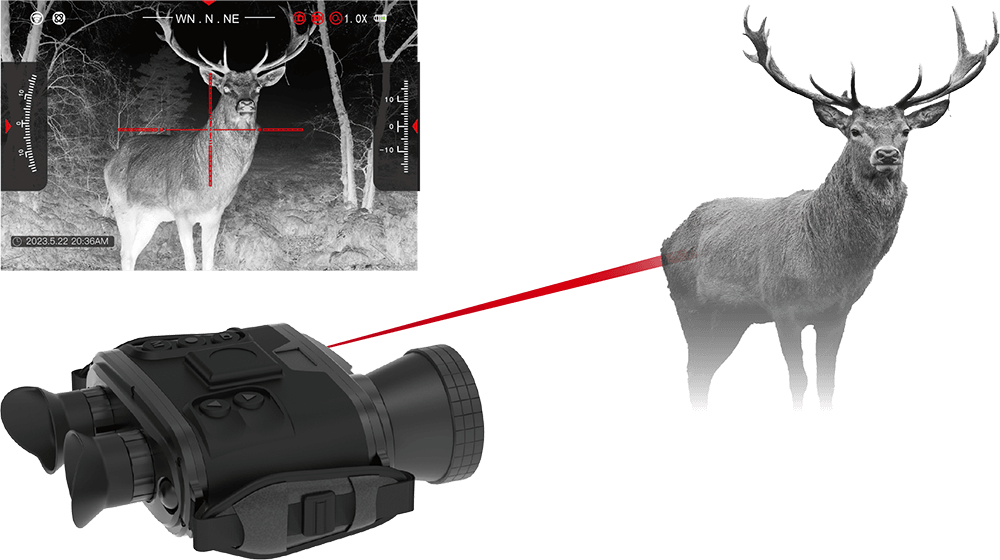

Laser Rangefinder

The night vision monocular thermal imager is equipped with a high-precision, eye-safe laser rangefinding device. One-button ranging accuracy ± 1m.

Picture-in-Picture Mode

Supports continuous 1~8x picture-in-picture electronic zoom, without losing field of view, real-time observation of the image, improving target recognition accuracy.

One-button Gun Calibration

Laser identification AI algorithm correction, automatically moves the reticle to the calibrated aiming point, thereby improving the shooting hit rate.

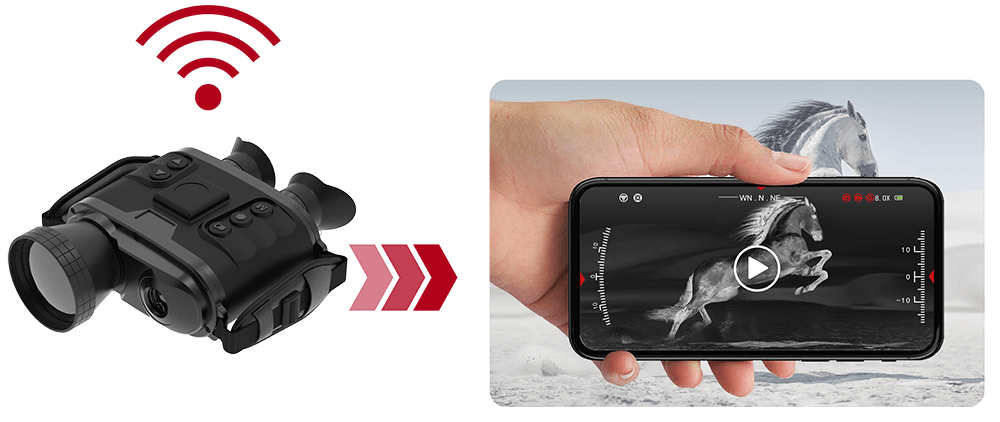

Wireless Transmission

WIFI/hotspot, supports mobile APP software on mobile phones, tablets, and laptops for viewing and live streaming.

Impact Recording

High-precision real-time distance display, equipped with a high-precision eye-safe laser rangefinding device. One-button ranging accuracy 1m.

Crosshair Reticle

The unique crosshair mode is essential for fast target acquisition and accuracy at any distance, and supports multiple color options.

Application Scenarios

Used for public security law enforcement, drug control and smuggling investigation, armed police anti-control, border patrol, coastal patrol, single-person night reconnaissance, etc.

Product Display and Accessories

Product appearance and accessories display. Accessories mainly include (main unit, waterproof box, data transmission cable, battery charger, 26650A lithium battery, accessories).

Specifications

Binocular Multifunctional Thermal Imaging Telescope
Model	SSK/NW-IRX55	SSK/NW-IRX75
Thermal Imaging Parameters
Detector Type	Uncooled vanadium oxide or polysilicon
Operating Band	8～14μm
Sensitivity	≤45mk@300K
Correction	Non-uniformity correction
Detector Specifications	384×288 / 640×512 (17μm, 12μm optional)
Field of View	4.8°×3.6° (384 resolution) 8.0°×6.5° (640 resolution)
Polarity	Black hot/White hot
Image Frame Rate	50Hz (384) / 50Hz (640)
Image Noise Reduction	Digital filtering
Lens Parameters	55mm@ F=1.0	75mm@ F=1.0
Focusing Method	Manual
Electronic Magnification	1～8x continuous magnification
Zoom Mode	Normal zoom/Picture-in-picture enhanced zoom
Hot Spot Tracking	Supported
Image Enhancement	Supported
Pseudo-color Mode	Supports 9 pseudo-color modes: white hot/black hot/brown/iron red/rainbow, etc.
Reticle and Color	5 reticle modes, 4 reticle colors
Gain	Automatic/Manual
Detection Distance	2000 meters (typical climate conditions) / 5000 meters (typical climate conditions)
Recognition Distance	500 meters (typical climate conditions) / 800 meters (typical climate conditions)
Eyepiece Parameters
Display	0.5-inch OLED, 1024×768 resolution
Contrast	1000:1
Eye Relief	35mm
Eyepiece Magnification	12x
Image Parameters
Video Recording, Photo Taking, and Playback	Supports one-button photo taking and video recording, and on-device playback of videos and images.
Video Format	MP4
Image Storage	JPG
Image Output	HDMI@1024×768 50hz/ CVBS@720*576 50hz
Image Resolution	1024×768
Continuous Recording Time	More than 7 hours
Storage Capacity	Standard 64G (optional 256G)
Interface Description
Data Export	TAPE-C 2.0
Data Storage	64G CF card (built-in)
Video Output	Micro HDMI@50hz
External Power Supply	DC 5V, maximum current 1.5A
Wireless Transmission	WIFI/hotspot, supports viewing and live streaming via mobile terminal APP software on mobile phones, tablets, and laptops (Facebook, Linkedin, Twitter, Douyin, TikTok, etc.)
Data Sensor
Ranging Distance	10～1500 meters (accuracy ±1m)
Ranging Wavelength	Pulse 905nm
Ranging Frequency	10～20hz adaptive
Ranging Accuracy	±1m
GPS/Beidou Positioning Module
Signal Reception	BDS/GPS
Three-channel radio frequency,	Supports simultaneous reception of full constellation BDS and GPS
Tracking Sensitivity	-162dBm
Accuracy	<2.5m
Shock Sensor	Supports automatic video recording upon impact, automatically pre-recording and saving videos before and after impact. Impact video duration and impact sensitivity are adjustable.
One-button Gun Calibration	Intelligent Hotspot Recognition and Correction
Satellite Positioning	Beidou/GPS (optional) and can display latitude and longitude information within 10 seconds outdoors
Target Positioning	Supports feedback of the coordinates of the measured object
Azimuth Sensor	Static accuracy 0.05°, dynamic 0.1°
Acceleration Sensor	2G～60G internally adjustable
Roll Angle Sensor	Range ±90°, static accuracy 0.05°, dynamic 0.1°
Pitch Angle Sensor	Range ±90°, static accuracy 0.05°, dynamic 0.1°
Physical Parameters
Impact Resistance	600G
Waterproof Sealing	IP66 (airtight)
Operating Temperature	-40℃～+60℃
Storage Temperature	-45℃～+70℃
Operating Humidity	Humidity less than 90% (non-condensing)
Operating Voltage Range	DC2.6～5.5V
Typical Power Consumption	≤3.5W
Reverse Polarity Protection	Yes
Over/Under Voltage Protection	Yes
Battery Capacity	26650 rechargeable lithium battery 3.7V＠3500mAH
Working Time	Continuous working time > 7 hours
Product Dimensions	220×175×80（mm）	≤220×175×85（mm）
Product Weight	≤1.1KG (including battery)	≤1.2KG (including battery)
Accessories
Composite Cable	USB data/charging cable
Charging Cable	USB to MICRO
Battery	Built-in 26650 rechargeable lithium battery 3.7V＠3800mAH
Charging Plug	US/EU standard optional
Manual	One
Packaging	ABS protective case
