Long-Range Laser Night Vision System
-
Model
- SSK/NW-HDL1500
- SSK/NW-HDL3500
- SSK/NW-HDL2000Q
Current model: SSK/NW-HDL1500/3500/2000Q
Retail price
¥ 999
Market price
¥ 999
Remaining inventory
2997
隐藏域元素占位
01 / MODEL SELECTION
Choose the right HDL system for your project
All three models combine low-light visible-light imaging with active infrared laser illumination. HDL1500 and HDL3500 use pan-tilt platform designs, while HDL2000Q uses an integrated PTZ camera design.
Select the configuration according to lens focal length, imaging resolution, available mounting space and power supply requirements.

HDL1500
Laser night vision pan-tilt system
Imaging resolution
1920 × 1080
Laser optical power
15 W
Weight
22 kg

HDL3500
Long-range laser night vision pan-tilt system
Imaging resolution
1920 × 1080
Laser optical power
30 W
Weight
50 kg

HDL2000Q
Laser night vision PTZ camera
Imaging resolution
2688 × 1520
Laser optical power
4 W
Weight
≤10 kg
02 / LONG-RANGE IMAGING
Long-range zoom imaging
Different lens configurations provide different fields of view. The three models use 8–320 mm, 20–1000 mm and 6.5–240 mm lenses respectively, with focus modes specified for each model.
Compare focal length together with imaging resolution, then assess the required target detail against the target dimensions and actual site conditions.

03 / LASER ILLUMINATION
Laser illumination synchronized with the field of view
The laser illumination angle changes with the camera field of view to support nighttime imaging at different zoom settings. HDL1500, HDL3500 and HDL2000Q provide 15 W, 30 W and 4 W laser configurations respectively.
Wavelength options are 808 nm, 915 nm, 940 nm and 980 nm. Confirm the actual wavelength in the ordered and supplied configuration.
All three models support automatic laser brightness adjustment according to ambient light, with power-off memory for the laser position.

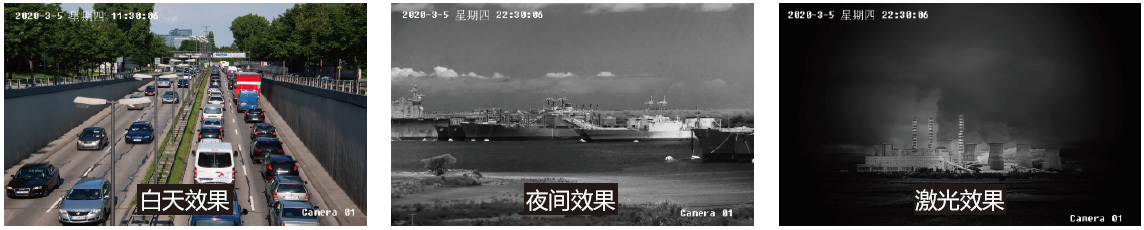

04 / DAY/NIGHT IMAGING
Day/night imaging and image enhancement
Day/night switching, low-light imaging and infrared laser illumination support surveillance by day and night. Image enhancement functions include noise reduction, wide dynamic range and highlight compensation.
Actual imaging performance depends on illumination, targets and environmental conditions. Select the model and configuration for the site task.
HDL1500 and HDL3500 support defog enhancement. HDL2000Q supports optical defog with scene-adaptive adjustment.



05 / PAN-TILT CONTROL
Pan-tilt control and preset patrols
All three models support 360° continuous pan, preset positions and patrol control. The different structures have model-specific tilt ranges, rotation speeds and preset capacities.
Choose the motion-control configuration according to the installation position and required observation directions.
HDL1500
HDL3500
HDL2000Q
APPLICATION SCENARIOS
Typical applications
Combine low-light visible-light imaging, infrared laser illumination and pan-tilt patrols for long-range day/night observation at airports, power facilities and other key areas.

Airport surveillance
Observe airport perimeters and areas around runways by day and night. Long-range imaging and infrared laser illumination support observation of key areas and target activity.

Substation surveillance
Observe substation perimeters, access routes and key locations by day and night. Pan-tilt patrols and preset tours support live observation and recorded-video review.

Military radar facilities
Use long-range video observation at radar sites and surrounding key areas. Pan-tilt platform or PTZ direction control supports patrol observation of perimeters, access routes and distant targets.

Power facilities
Observe power facility perimeters, roads and key areas. Network video access and pan-tilt control support remote live viewing and review of recorded events.
TECHNICAL SPECIFICATIONS
Technical Specifications
Comparison of model-specific parameters for HDL1500, HDL3500, and HDL2000Q.
| Parameters | ![]() HDL1500 Laser Night Vision Rotary Platform | ![]() HDL3500 Telephoto Laser Night Vision Pan-Tilt Unit | ![]() HDL2000Q Laser Night Vision Dome Camera |
|---|---|---|---|
| Laser illumination | |||
| Laser output power | 15W | 30W | 4W |
| Laser wavelength | 808nm/915nm/940nm/980nm optional | 808nm/915nm/940nm/980nm optional | 808nm/915nm/940nm/980nm optional |
| Lighting angle | 0.2~45° | 0.2~45° | 0.2~45° |
| Visible light imaging | |||
| Image sensor | 1/1.8” Progressive Scan CMOS | 1/1.8” Progressive Scan CMOS | 1/1.8” Progressive Scan CMOS |
| Imaging resolution | 1920×1080 | 1920×1080 | 2688×1520 |
| Lens focal length | 8–320mm | 20–1000 mm | 6.5–240 mm |
| aperture | F1.6~4.2 | F1.6~4.2 | F1.35-F4.6 |
| Minimum Illuminance | Color: 0.0005 Lux; B/W: 0.0001 Lux @(F1.2) | Color: 0.0005 Lux; B/W: 0.0001 Lux @(F1.2) | Color: 0.0005 Lux; Black and white: 0.0001 Lux @(F1.6) |
| Focus Mode | Auto Focus / One-Shot Focus / Manual Focus / Semi-Auto Focus | Auto Focus / One-Shot Focus / Manual Focus / Semi-Auto Focus | Auto Focus / One-Shot Focus / Manual Focus / Semi-Auto Focus |
| Day-night switch | ICR infrared-cut filter type | ICR infrared-cut filter type | IRC infrared filter/automatic |
| Image enhancement | Backlight compensation, strong light suppression, defogging, electronic image stabilization, 3D noise reduction | Backlight compensation, strong light suppression, defogging, electronic image stabilization, 3D noise reduction | Backlight compensation, strong light suppression, optical defogging, electronic image stabilization, 3D noise reduction |
| Wide Dynamic Range | Ultra-wide dynamic range of up to 120 dB | Ultra-wide dynamic range of up to 120 dB | Ultra-wide dynamic range of 120 dB |
| Pan-Tilt and PTZ Control | |||
| Equipment Structure | Rotary type | Rotary type | Dome camera type |
| Horizontal rotation angle | 0° to 360° continuous rotation (adjustable) | 0° to 360° continuous rotation (adjustable) | 0° to 360° continuous rotation (adjustable) |
| Vertical rotation angle | Elevation -75° to +40° (optional -85° to +85°) | Optional -60° to +60° | -27°~90 |
| Horizontal rotation speed | 0.1°/S~60°/S | 0.01°/S~30°/S | Key control 200°/s, manual 0.05°–200°/s |
| Vertical rotation speed | 0.1°/S~60°/S | 0.01°/S~15°/S | Key control 120°/s, manual 0.05°–120°/s |
| Preset position | 256 pieces | 256 pieces | 255 items |
| Automatic cruise control | Support | Support | Support |
| Watch position | Support | Support | Support |
| Video, Networking, and Storage | |||
| Video compression | H.265/H.264 | H.265/H.264 | H.265/H.264 |
| Video bitrate | 32Kbps~16Mbps | 32Kbps~16Mbps | 32Kbps~16Mbps |
| Main stream | 50Hz: 25fps/60Hz: 30fps(1920×1080, 1280×720) | 50Hz: 25fps/60Hz: 30fps (1920×1080, 1280×720) | 50Hz: 25fps/60Hz: 30fps (1920×1080, 1280×720) |
| Network and Control Interface | RJ45 100M/1000M adaptive Ethernet port, RS-485 | RJ45 100M/1000M adaptive Ethernet port, RS-485 | RJ45 100M/1000M adaptive Ethernet port, RS-485 |
| GB28181 | Support | Support | Support |
| Power Supply and Environmental Protection | |||
| Input voltage | AC/DC 24V ±10% adaptive | AC/DC 24V ±10% adaptive | AC/DC 24V ±10% adaptive |
| Average power consumption | Average power consumption: 60W | Average power consumption < 150W | Average power consumption ≤ 28W |
| Operating temperature | -50℃~70℃ | -50℃~+70℃ | -40℃~+70℃ |
| Storage temperature | -60℃~75℃ | -60℃~+75℃ | -60℃~+75℃ |
| Operating humidity | <90%RH | <90%RH | <90%RH |
| Overall equipment protection rating | IP66 | IP66 | IP66 |
| External Protection | Supports lightning protection, surge protection, and electrostatic discharge (ESD) protection. | Supports lightning protection, surge protection, and electrostatic discharge (ESD) protection. | Supports lightning protection, surge protection, and electrostatic discharge (ESD) protection. |
| Physics and Installation | |||
| Product dimensions | 550×280×440 (mm) | 650×370×610 (mm) | 412.8×φ252(mm) |
| Overall machine weight | 22kg | 50kg | ≤10kg |
| Main material | Aluminum alloy material, powder-coated surface / salt-spray resistant (optional) | Aluminum alloy material, powder-coated surface / salt-spray resistant (optional) | Aluminum alloy material with a special surface coating, resistant to salt spray, acid rain, and corrosive gases. |
| Connector | Complies with the national standard GB5226-85 | Complies with the national standard GB5226-85 | Complies with the national standard GB5226-85 |
Frequently Asked Questions
How do you choose among the three devices?
First compare the structure, lens, and resolution, then verify the installation space, power supply, and motion control requirements. The HDL1500 and HDL3500 are pan-tilt models, while the HDL2000Q is a dome camera; the final configuration is determined by the specific project requirements.
What kind of day/night imaging method do the three models use?
All three models combine low-light visible-light imaging with active infrared laser illumination, delivering color images during the day and switching to black-and-white imaging with laser illumination for nighttime observation.
Is laser fill light the same as laser rangefinding?
The laser on this page is used to assist nighttime imaging; the provided documentation does not list a laser rangefinding function. Operating range, target detection, and target identification should be understood separately.
What laser wavelength options are available?
All three manuals list 808 nm, 915 nm, 940 nm, and 980 nm as available options; the actual wavelength shall be confirmed based on the order and supply configuration and does not imply that all four wavelengths operate simultaneously.
Is the laser synchronized with the lens, and which models support automatic brightness and memory functions?
All three models specify that the illumination angle is synchronized with the camera’s viewing angle. The HDL1500 and HDL3500 additionally list automatic laser brightness adjustment and power‑off memory of laser position; the HDL2000Q does not state equivalent automatic brightness or position‑memory capabilities, so any options must be confirmed against the supplied configuration.
Are the lenses and pixels of the three models the same?
They are 8–320 mm / 1920×1080, 20–1000 mm / 1920×1080, and 6.5–240 mm / 2688×1520, respectively; the HDL2000Q manual further specifies 37× optical zoom.
How do you verify platform integration and GB28181 support?
All three models support ONVIF. The HDL1500 and HDL3500 also support ONVIF Profile S/G, ISAPI, and GB28181, and provide RJ45 and RS-485 interfaces; the HDL2000Q offers RJ45 10M/100M and ONVIF support. Current documentation does not explicitly list GB28181, so this needs to be verified. Protocol compatibility and actual platform interoperability should be confirmed separately through joint testing and debugging.
Can recordings be saved when the network is down?
The first two models support local storage and resumable upload with up to 128 GB; the HDL2000Q supports a maximum 256 GB storage card for local storage and NAS when offline, and whether resumable upload is supported must be verified separately according to the protocol and platform.
How do you differentiate between outdoor protection, temperature, and temperature control configurations?
All three models are rated IP66. The HDL1500 and HDL3500 have an operating temperature range of −50°C to +70°C, and their datasheets list automatic temperature control as an optional feature; the HDL2000Q operates from −40°C to +70°C, with automatic temperature control listed in its datasheet. IP66 should not be interpreted as a guarantee of submersion resistance or explosion protection.
Do they all come with wipers?
The first two sections provide instructions for the waterproof coating and the wiper‑free system; the HDL2000Q series automatic sensor‑activated wipers cannot be maintained using the same procedures.
Do they all support fireworks or pedestrian and vehicle recognition?
The HDL2000Q series supports fire alarms and various types of smart events; the first two models do not provide an equivalent detailed feature list, so do not use this as evidence that the entire series supports the same AI capabilities.
How far can you observe or identify at most?
It is necessary to distinguish between specifications for laser illumination, detection, and identification, and to consider the specific target size, lens configuration, environment, and test conditions. Existing documentation does not fully agree on terminology; therefore, verify the relevant configurations and conditions before making any formal commitments.
