Custom Optical Dome for Seeker Head

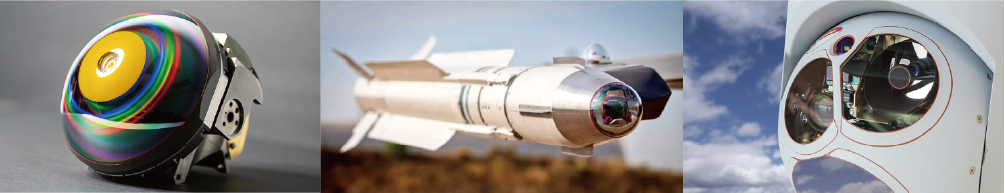

We offer various types of missile optical domes (also known as missile seeker optical windows or optical domes), supporting full-process customization from shape design to optical processing and coating, meeting the usage requirements of different missile models, drones, precision-guided weapons, and other systems. The products balance aerodynamic shape and optical performance, and can be customized in wavelength band, surface shape, thickness, material, coating process, etc., according to customer mission needs, ensuring excellent transmittance and imaging quality under high-speed flight, extreme temperature differences, and harsh environments.
Customizable Parameters
Options / Range
|
Description
|
|
Material
|
Zinc Sulfide ( ZnS ), Multispectral Grade Zinc Sulfide ( MS-ZnS ), Zinc Selenide ( ZnSe ), Magnesium Fluoride ( MgF ₂ ), Sapphire ( Sapphire ), Fused Silica ( Fused Silica ), Sulfur-based Glass
|
Selected according to working wavelength band and intensity requirements
|
Working Wavelength Band
|
0.4 – 0.7 µm (Visible Light), 0.7 – 3 µm (Near Infrared), 3 – 5 µm (Mid Infrared), 8 – 12 µm (Far Infrared)
|
Supports single or multiple wavelength bands
|
Shape and Structure
|
Spherical, Aspherical, Hyperbolic, Conformal Surfaces
|
Can match different aerodynamic requirements
|
Aperture Range
|
Ø50 mm – Ø350 mm |
Customized according to missile head size
|
Thickness
|
3 mm – 15 mm |
Supports equal thickness / Non-equal thickness design
|
Aspect Ratio
|
1.5 – 3.0
|
High aspect ratio can reduce aerodynamic drag
|
Transmittance
|
≥ 85% (After Coating)
|
Coatings for different wavelength bands can reach >90% |
Surface Accuracy
|
λ /4 – λ /10 @632.8nm |
Ensures imaging quality
|
Surface Roughness
|
Ra ≤ 5nm |
High-precision polishing
|
Temperature Range
|
-60 ° C ~ +600 ° C (Depends on material)
|
Adapted for hypersonic frictional heating
|
Coating Process
|
Anti-reflective Coating ( AR ), Enhanced Transmission Coating, Multispectral Composite Coating, Conductive Coating
|
Rainproof, sandproof, and sea fog corrosion resistant
|
Processing Capability
High-precision optical cold processing, thermal forming processing
Spherical / Aspherical / Precise control of conformal surface curvature
Large single-piece processing capability (diameter up to 350mm )
Multispectral high transmittance coating (UV to far infrared)
Aerodynamics - Optical and aerodynamic joint optimization design
Typical Applications
Mid-to-long range guided missile optics / Infrared seeker heads
High-speed aircraft imaging windows
Drone-borne electro-optical reconnaissance equipment
Multispectral imaging and laser ranging systems

Customization Process
Requirement Confirmation: Provide required wavelength band, shape, size, and environmental requirements
Scheme Design: Combined Optimization of Aerodynamics and Optics
Material Selection: Choosing the Optimal Material Based on Performance and Cost
Processing and Coating: Optical Precision Machining and Surface Treatment
Inspection and Delivery: Full Spectrum Transmittance and Shape Accuracy Testing
