Monocular multi-functional thermal imaging gun sight
The SSK/NW-T35 series handheld thermal imager monocular night vision device consists of a far-infrared thermal imaging system and a high-resolution OLED imaging system. The product features high integration, small size, light weight, and low power consumption, making it a cost-effective solution for mobile handheld fog penetration and night vision monitoring.
This series of devices effectively addresses the need for 24/7 mobile day and night imaging. It supports 9 switchable color palettes for thermal imaging throughout the day and offers excellent fog penetration imaging capabilities. The maximum detection distance, day and night, is 3000 meters. It has been successfully applied to single-soldier, single-police officer, and single-person patrol security fields such as forest fire prevention, search and rescue, military border defense, maritime and water conservancy, waterways, nature reserves, public security and armed police, airports, cultural relic protection, and energy mining.
Contact Us
Category:
Outdoor Series
Security series
Thermal Imaging Sight Series
Retail Price
Market Price
The SSK/NW-T35 series handheld thermal imager monocular night vision device consists of a far-infrared thermal imaging system and a high-resolution OLED imaging system. The product features high integration, small size, light weight, and low power consumption, making it a cost-effective solution for mobile handheld fog penetration and night vision monitoring.
This series of devices effectively addresses the need for 24/7 mobile day and night imaging. It supports 9 switchable color palettes for thermal imaging throughout the day and offers excellent fog penetration imaging capabilities. The maximum detection distance, day and night, is 3000 meters. It has been successfully applied to single-soldier, single-police officer, and single-person patrol security fields such as forest fire prevention, search and rescue, military border defense, maritime and water conservancy, waterways, nature reserves, public security and armed police, airports, cultural relic protection, and energy mining.
Quantity
-
+
Inventory Remaining
隐藏域元素占位
Monocular multi-functional thermal imaging gun sight
The SSK/NW-T35 series handheld thermal imager monocular night vision device consists of a far-infrared thermal imaging system and a high-resolution OLED imaging system. The product features high integration, small size, light weight, and low power consumption, making it a cost-effective solution for mobile handheld fog penetration and night vision monitoring.
This series of devices effectively addresses the need for 24/7 mobile day and night imaging. It supports 9 switchable color palettes for thermal imaging throughout the day and offers excellent fog penetration imaging capabilities. The maximum detection distance, day and night, is 3000 meters. It has been successfully applied to single-soldier, single-police officer, and single-person patrol security fields such as forest fire prevention, search and rescue, military border defense, maritime and water conservancy, waterways, nature reserves, public security and armed police, airports, cultural relic protection, and energy mining.
SSK/NW-T35
Category:
Outdoor Series
Security series
Thermal Imaging Sight Series

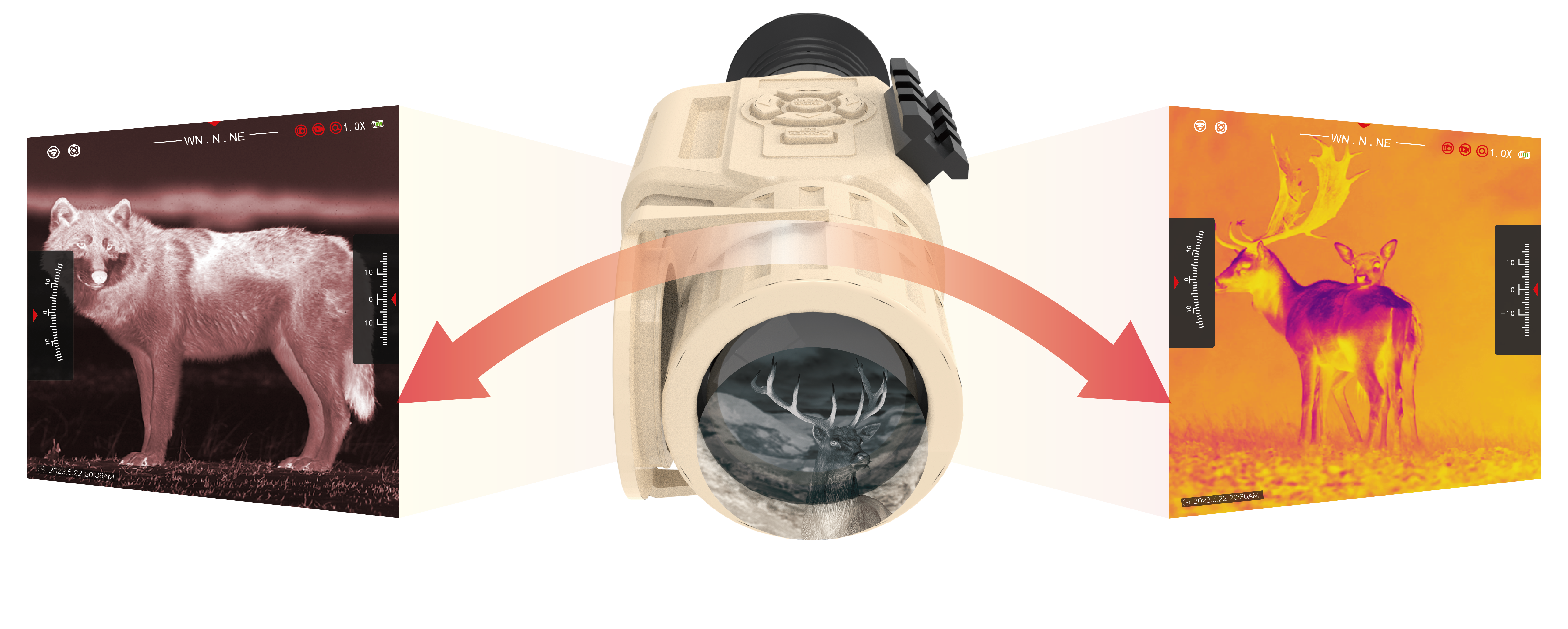

Display Mode
The night vision monocular thermal imager supports 9 color modes, including white hot/black hot/brown/iron red/rainbow, etc.
Night Mode
Clearly see every detail, whether it's outdoor exploration, night observation, or late-night work. Night vision equipment provides strong support, making nightlife more practical.

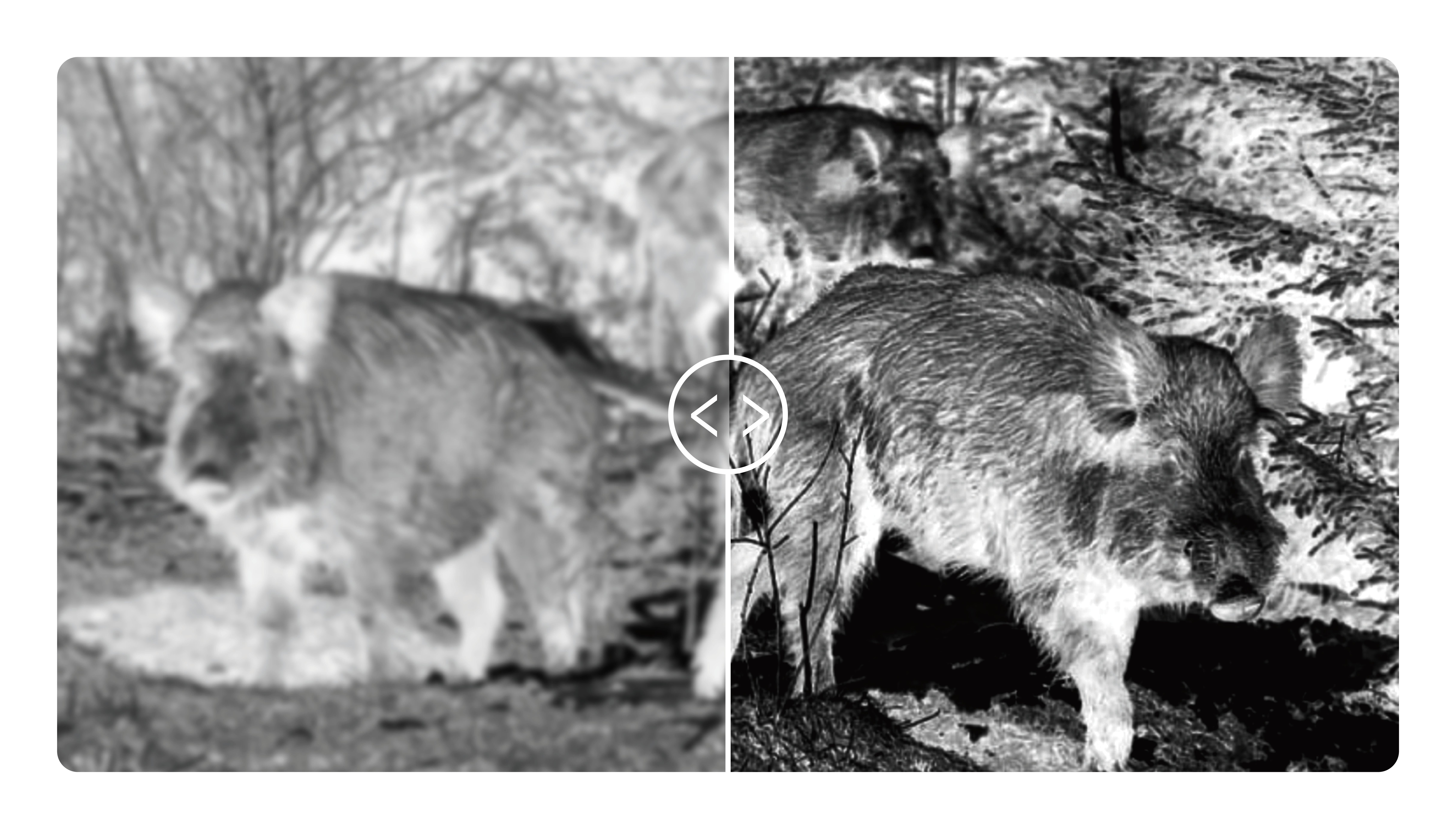

Image Enhancement
Ultra-strong image algorithm, fast processing speed, effectively reduces image noise, enhances contrast and adaptability, improves image quality, and doubles the effect of target recognition and judgment.
Picture-in-Picture Mode
Supports continuous 1~8x picture-in-picture electronic zoom, without losing field of view, real-time observation of the picture, improving target recognition accuracy.
One-button Gun Calibration
Laser identification AI algorithm correction, automatically moves the reticle to the calibrated aiming point, thereby improving the shooting hit rate.
Wireless Transmission
WIFI/hotspot, supports mobile APP software on mobile phones, tablets, and laptops for viewing and live broadcasting.
Impact Recording
High-precision real-time distance display, equipped with high-precision human eye safety laser ranging equipment. One-button ranging accuracy 1m.
Crosshair Reticle
The unique crosshair reticle mode is essential for fast target acquisition and accuracy at any distance, and supports multiple color options.
Application Scenarios
Used for public security law enforcement, drug control and smuggling investigation, armed police anti-control, border patrol, coastal patrol, single-person night reconnaissance, etc.

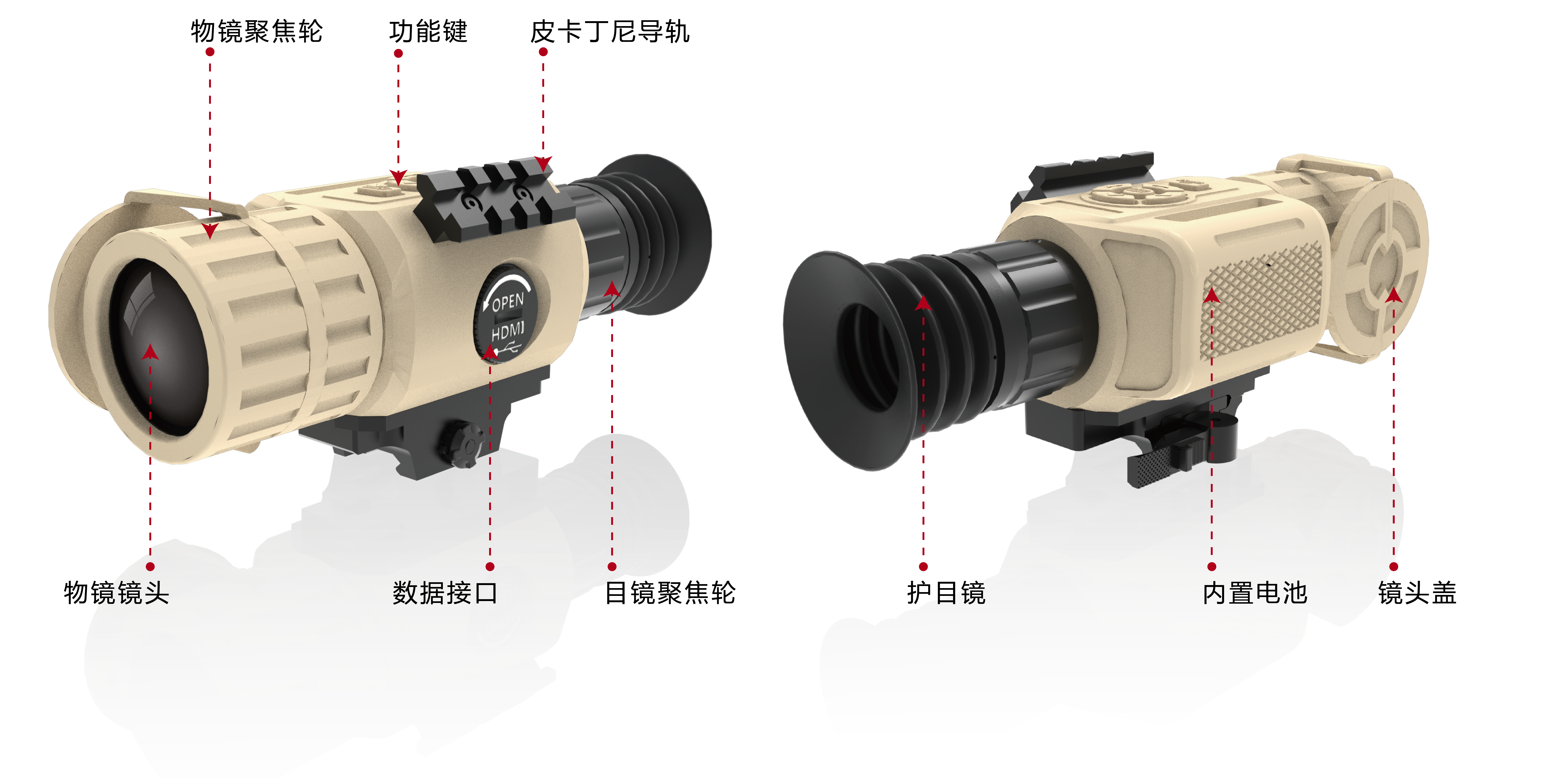

Product Display and Accessories
Product appearance and accessories display. Accessories mainly include (host device, waterproof water tank, data transmission cable, battery charger, 26650A lithium battery, accessories).
Specifications
Monocular Multifunctional Thermal Imaging Gun Sight | |
| Thermal Imaging Parameters | |
| Detector Type | Uncooled vanadium oxide or polysilicon |
| Operating Band | 8～14µm |
| Sensitivity | ≤50mk@300K |
| Correction | Non-uniformity |
| Detector Specifications | 384×288 / 640×512 optional (12um) |
| Field of View | 6.3°×5.7°(384 resolution)/12.6°×10.1°(640 resolution) |
| Polarity | Black hot/White hot |
| Image Frame Rate | 50Hz（384）/50Hz(640) |
| Image Noise Reduction | Digital filtering |
| Lens Parameters | 35mm F=1.0 |
| Focusing Method | Manual |
| Electronic Magnification | 1～8x continuous magnification |
| Zoom Mode | Normal zoom/Picture-in-picture zoom |
| Hot Spot Tracking | Supported |
| Image Enhancement | Supported |
| False Color Mode | Supports white hot/black hot/brown/iron red/rainbow and other 9 color modes |
| Reticle and Color | 5 types of reticles, 5 colors |
| Gain | Automatic/Manual |
| Detection Distance | 1000m (typical climate conditions)/2500m (typical climate conditions) |
| Recognition Distance | 280m (typical climate conditions)/600m (typical climate conditions) |
| Eyepiece Parameters | |
| Display Screen | 0.5-inch OLED, 1024×768 resolution |
| Contrast | 1000:1 |
| Eye Relief | 35mm |
| Eyepiece Magnification | 12x |
| Image Parameters | |
| Video Recording, Photo Taking, and Playback | Supports one-button photo and video recording, and on-board playback of videos and images. |
| Video Recording Format | MP4 |
| Image Storage | JPG |
| Image Output | HDMI@1024×768 |
| Image Resolution | 1024×768 |
| Continuous Recording Time | More than 7 hours |
| Storage Capacity | Standard 64G (optional 256G) |
| Interface Description | |
| Data Export | TAPE-C 2.0 |
| Data Saving | CF Card |
| Video Output | Micro HDMI |
| External Power Supply | DC 5V, maximum current 1.5A |
| Data Input | TTL, can be externally connected to anemometer/laser rangefinder/GPS/DBS |
| Wireless Transmission | WIFI/hotspot, supports mobile terminal APP software for viewing and live streaming on mobile phones, tablets, and laptops (Facebook, Linkedin, Twitter, Douyin, TikTok, etc.) |
| Data Sensor | |
| Impact Recording | Impact automatic recording, video pre-recording saves video before and after impact, impact video duration and impact sensitivity are adjustable. |
| One-button Gun Calibration | AI intelligent hotspot recognition calibration divides the line to the specified position |
| Azimuth Sensor | Static accuracy 0.05°, dynamic 0.1° |
| Accelerometer | 2G-60G internally adjustable |
| Roll Angle Sensor | Range ±90°, static accuracy 0.05°, dynamic 0.1° |
| Pitch Angle Sensor | Range ±90°, static accuracy 0.05°, dynamic 0.1° |
| Physical Parameters | |
| Impact Resistance | 850G |
| Waterproof Sealing | IP66 (airtight) |
| Operating Temperature | -40°C～+60°C |
| Storage Temperature | -45°C～+70°C |
| Operating Humidity | Humidity less than 90% (non-condensing) |
| Operating Voltage Range | DC2.6～5.5V |
| Typical Power Consumption | ≤2.8W |
| Battery Capacity | 18500×2 rechargeable lithium battery 3.7V＠3000mAH |
| Working Time | Continuous working time >7 hours |
| Product Dimensions | 203×76×83（mm） |
| Product Weight | ≤0.6KG |
| Accessories | |
| Charging Data Cable | USB to type-c |
| Battery | 2pcs 18500@3400mhA |
| Charging Plug | US/EU Standard |
| Manual | One |
| Packaging | ABS protective case |
