Dual-purpose microlight night vision telescope (with Beidou laser rangefinder)

The SSK/NW-BWHX3000 series handheld ultra-low illumination binocular night vision device features a starlight-level low-illumination imaging system, binocular correction system, and imported OLED imaging. This series of equipment can produce clear color or black and white images in lightless environments, effectively addressing the need for 24-hour all-weather mobile day and night imaging. It supports full-color, black and white, and low-light modes selectable and switchable throughout the day; and has excellent imaging capabilities, with a maximum observation distance of 3000 meters day and night; it has been successfully applied to forest fire fighting, search and rescue, military border defense, maritime water conservancy, waterways, nature reserves, public security armed police, airports, cultural relic protection, energy mining, and other security fields such as single-soldier, single-police, and single-person patrol.

Contact Us

Guojin@settall.com

+86 010-63256377

Category:

Outdoor Series

Security series

Retail Price

¥ 9999

Market Price

¥ 9999

The SSK/NW-BWHX3000 series handheld ultra-low illumination binocular night vision device features a starlight-level low-illumination imaging system, binocular correction system, and imported OLED imaging. This series of equipment can produce clear color or black and white images in lightless environments, effectively addressing the need for 24-hour all-weather mobile day and night imaging. It supports full-color, black and white, and low-light modes selectable and switchable throughout the day; and has excellent imaging capabilities, with a maximum observation distance of 3000 meters day and night; it has been successfully applied to forest fire fighting, search and rescue, military border defense, maritime water conservancy, waterways, nature reserves, public security armed police, airports, cultural relic protection, energy mining, and other security fields such as single-soldier, single-police, and single-person patrol.
  • Model
    • NWH2000X
    • NWH5000X
Leave a Message Related Solutions File Download
Quantity
-
+

Inventory Remaining

198

加入购物车
立即购买

隐藏域元素占位

Dual-purpose microlight night vision telescope (with Beidou laser rangefinder)
+
  • Dual-purpose microlight night vision telescope (with Beidou laser rangefinder)
Beijing Soske Technology Development Co., Ltd

Dual-purpose microlight night vision telescope (with Beidou laser rangefinder)

The SSK/NW-BWHX3000 series handheld ultra-low illumination binocular night vision device features a starlight-level low-illumination imaging system, binocular correction system, and imported OLED imaging. This series of equipment can produce clear color or black and white images in lightless environments, effectively addressing the need for 24-hour all-weather mobile day and night imaging. It supports full-color, black and white, and low-light modes selectable and switchable throughout the day; and has excellent imaging capabilities, with a maximum observation distance of 3000 meters day and night; it has been successfully applied to forest fire fighting, search and rescue, military border defense, maritime water conservancy, waterways, nature reserves, public security armed police, airports, cultural relic protection, energy mining, and other security fields such as single-soldier, single-police, and single-person patrol.

NWH2000X、NWH5000X

Guojin@settall.com

+86 010-63256377

Category:

Outdoor Series

Security series

Product Consulting Related Products File Download

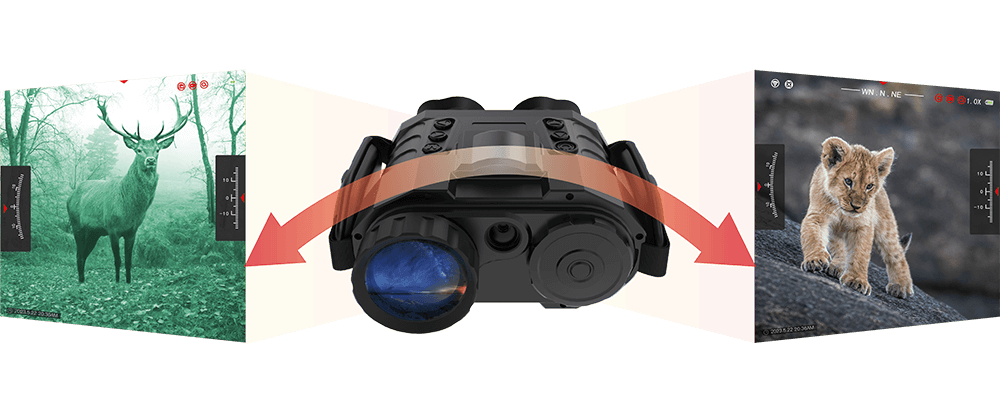

Display Mode

The night vision monocular thermal imager supports 9 color modes, including white hot/black hot/brown/iron red/rainbow, etc.

Night Mode

Clearly see every detail, whether it's outdoor adventure, night observation, or late-night work. Night vision equipment provides strong support, making nightlife more practical.

Laser Rangefinder

The night vision monocular thermal imager is equipped with a high-precision, eye-safe laser rangefinding device. One-button ranging accuracy ± 1m.

Picture-in-Picture Mode

Supports continuous 1~8x picture-in-picture electronic zoom, without losing field of view, real-time observation of the image, improving target recognition accuracy.

One-button Gun Calibration

Laser identification AI algorithm correction, automatically moves the reticle to the calibrated aiming point, thereby improving shooting accuracy.

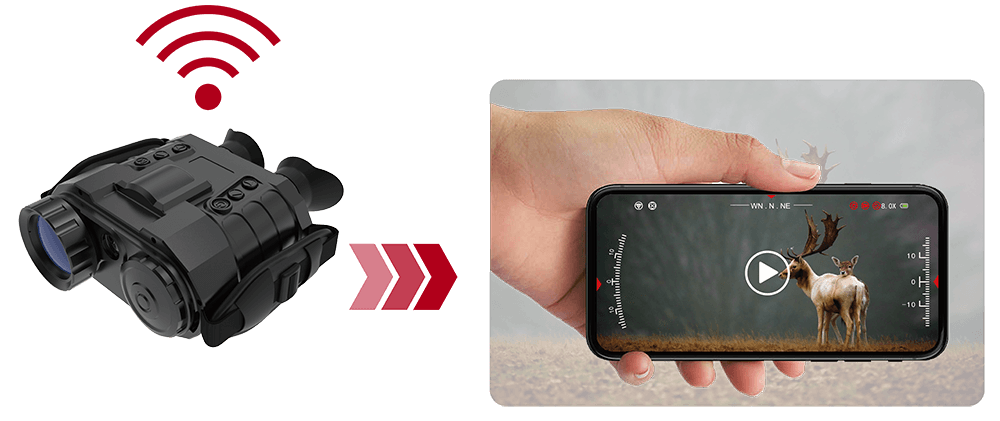

Wireless Transmission

WIFI/hotspot, supports mobile APP software on mobile phones, tablets, and laptops for viewing and live streaming.

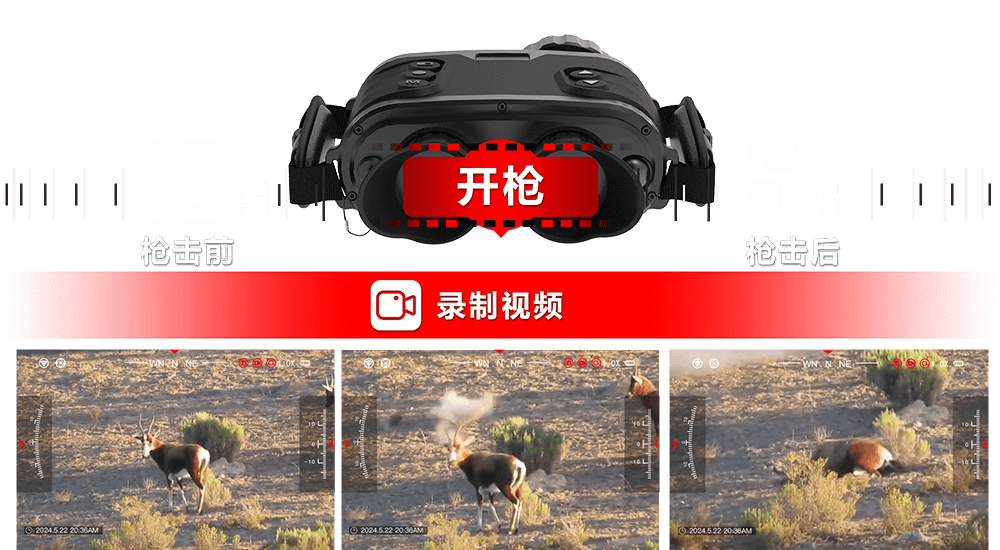

Impact Recording

High-precision real-time distance display, equipped with a high-precision eye-safe laser rangefinding device. One-button ranging accuracy 1m.

Crosshair Reticle

The unique crosshair mode is essential for fast target acquisition and accuracy at any distance, and supports multiple color options.

Application Scenarios

Used for public security law enforcement, drug control and smuggling investigation, armed police anti-control, border patrol, coastal patrol, single-person night reconnaissance, etc.

Product Display and Accessories

Product appearance and accessories display. Accessories mainly include (main unit, waterproof box, data cable, battery charger, 26650A lithium battery, accessories).

Specifications

Binocular Multifunctional Low-Light Night Vision Telescope

Model

NWH2000X

NWH5000X

Low-Light Detector Parameters
Detector Type

1/1.8” SETTALL CMOS

Lens Focal Length

Manual fixed-focus low-light lens 100mm@(F0.9)

Resolution

1920×1080

Maximum Frame Rate

50fps (1920×1080)

Color Illuminance

0.0005Lux

Black and White Illuminance

0.000lLux

Infrared Illumination

Sensing wavelength 808nm/940nm/980nm

Electronic Shutter

Auto/Manual

White Balance

Auto/Manual

Focusing Method

Manual

Electronic Zoom

1～8x continuous zoom

Zoom Mode

Zoom/Picture-in-Picture Zoom

Display Mode

Full Color Mode/Black and White Mode/Low-Light Mode

Reticle

Multiple options available

Reticle Color

Multiple options available

Detection Distance Index

For person (1.8m×0.5m)/For vehicle (2.3m×2.3m)

Detection Distance

1000m (typical climate conditions)/2500m (typical climate conditions)

Recognition Distance

280m (typical climate conditions)/600m (typical climate conditions)

Eyepiece Parameters
Display

0.39-inch OLED, 1024×768 resolution

Contrast

1000:1

Eye Relief

35～70mm

Eyepiece Magnification

15x

Diopter

-500～400

Image Parameters
Video Format

MP4

Image Storage

JPG

Image Resolution

1024×768

Storage Capacity

4～256G (supports up to 256G)

Image Output

HDMI@1920×1080

Photo Playback

Supported

Video Playback

Supported

Interface Description
Data Export

USB 2.0

External Power Supply

DC 5V

Wireless Transmission

Supports WIFI/hotspot modes, allowing viewing and live streaming via mobile terminal APP software on mobile phones, tablets, and laptops (platforms such as Facebook, Linkedin, Twitter, Douyin, TikTok, etc.)

Data Sensor
Shock Sensor

Impact-activated recording, saving videos before and after the impact. Video length and impact sensitivity are adjustable.

Azimuth Sensor

Static accuracy 0.05°, dynamic 0.1°

Acceleration Sensor

2G～60G (adjustable)

Roll Angle Sensor

Range ±90°, static accuracy 0.05°, dynamic 0.1°

Pitch Angle Sensor

Range ±90°, static accuracy 0.05°, dynamic 0.1°

Laser Rangefinder



Ranging Distance

6～1500 meters, accuracy ±1m

10～5000 meters, accuracy ±1m

Ranging Wavelength

905nm

1535nm

GPS/Beidou Positioning Module
Satellite Positioning

Beidou/GPS (optional), can display latitude and longitude information within 10 seconds outdoors (sensitivity -162dBm)

Target Positioning

Displays the feedback coordinates of the measured object

Physical Parameters
Waterproof and Sealed

IP67 (airtight)

Operating Temperature

-40℃～+60℃

Storage Temperature

-45℃～+70℃

Operating Humidity

Humidity less than 90% (non-condensing)

Typical Power Consumption

≤2.8W

Battery Capacity

18650 rechargeable lithium battery 3.7V＠3×3200mAH

Working Time

Continuous working time >20 hours

Product Dimensions

235×207×91 (mm)

Product Weight

≤1.1KG

Accessories
Data/Charging Cable

Type-C to USB

Video Cable

HDMI

Battery

Three 18650 batteries @ 3200mA (low temperature resistance -40 degrees)

Charger

Standard charger (with charging plug)

Instruction Manual

One

Packaging

ABS protective case

Online Inquiry

Note: Please leave your contact information, our professionals will contact you as soon as possible!

Solutions

Content update in progress,...

Accessories

Host Device

Host device

Waterproof box

Waterproof box

Data cable

Data cable

Battery charger

Battery charger

1000A lithium battery

1000A lithium battery

Other accessories

Other accessories
