Monocular multifunctional low-light night vision system
The SSK/NW-V50 series monocular multifunctional low-light night vision system consists of an ultra-low-illumination imaging system and a high-resolution OLED imaging system. The product features high integration, small size, light weight, and low power consumption, making it a cost-effective product for mobile handheld fog penetration and night vision monitoring.
This series of devices can produce clear color or black and white images in environments without light, effectively addressing the need for 24-hour all-weather mobile day and night imaging. It supports full-color, black and white, and low-light modes, which are selectable and switchable. It also boasts excellent imaging capabilities, with a maximum observation distance of 1000 meters during day and night. It has been successfully applied to security fields such as forest fire fighting, search and rescue, military border defense, maritime and water conservancy, waterways, nature reserves, public security and armed police, airports, cultural relic protection, and energy mining, for single-soldier, single-police officer, and single-person patrol inspections.
Contact Us
Category:
Outdoor Series
Security series
Microlight Scope Series
Retail Price
Market Price
The SSK/NW-V50 series monocular multifunctional low-light night vision system consists of an ultra-low-illumination imaging system and a high-resolution OLED imaging system. The product features high integration, small size, light weight, and low power consumption, making it a cost-effective product for mobile handheld fog penetration and night vision monitoring.
This series of devices can produce clear color or black and white images in environments without light, effectively addressing the need for 24-hour all-weather mobile day and night imaging. It supports full-color, black and white, and low-light modes, which are selectable and switchable. It also boasts excellent imaging capabilities, with a maximum observation distance of 1000 meters during day and night. It has been successfully applied to security fields such as forest fire fighting, search and rescue, military border defense, maritime and water conservancy, waterways, nature reserves, public security and armed police, airports, cultural relic protection, and energy mining, for single-soldier, single-police officer, and single-person patrol inspections.
Quantity
-
+
Inventory Remaining
隐藏域元素占位
Monocular multifunctional low-light night vision system
The SSK/NW-V50 series monocular multifunctional low-light night vision system consists of an ultra-low-illumination imaging system and a high-resolution OLED imaging system. The product features high integration, small size, light weight, and low power consumption, making it a cost-effective product for mobile handheld fog penetration and night vision monitoring.
This series of devices can produce clear color or black and white images in environments without light, effectively addressing the need for 24-hour all-weather mobile day and night imaging. It supports full-color, black and white, and low-light modes, which are selectable and switchable. It also boasts excellent imaging capabilities, with a maximum observation distance of 1000 meters during day and night. It has been successfully applied to security fields such as forest fire fighting, search and rescue, military border defense, maritime and water conservancy, waterways, nature reserves, public security and armed police, airports, cultural relic protection, and energy mining, for single-soldier, single-police officer, and single-person patrol inspections.
Category:
Outdoor Series
Security series
Microlight Scope Series

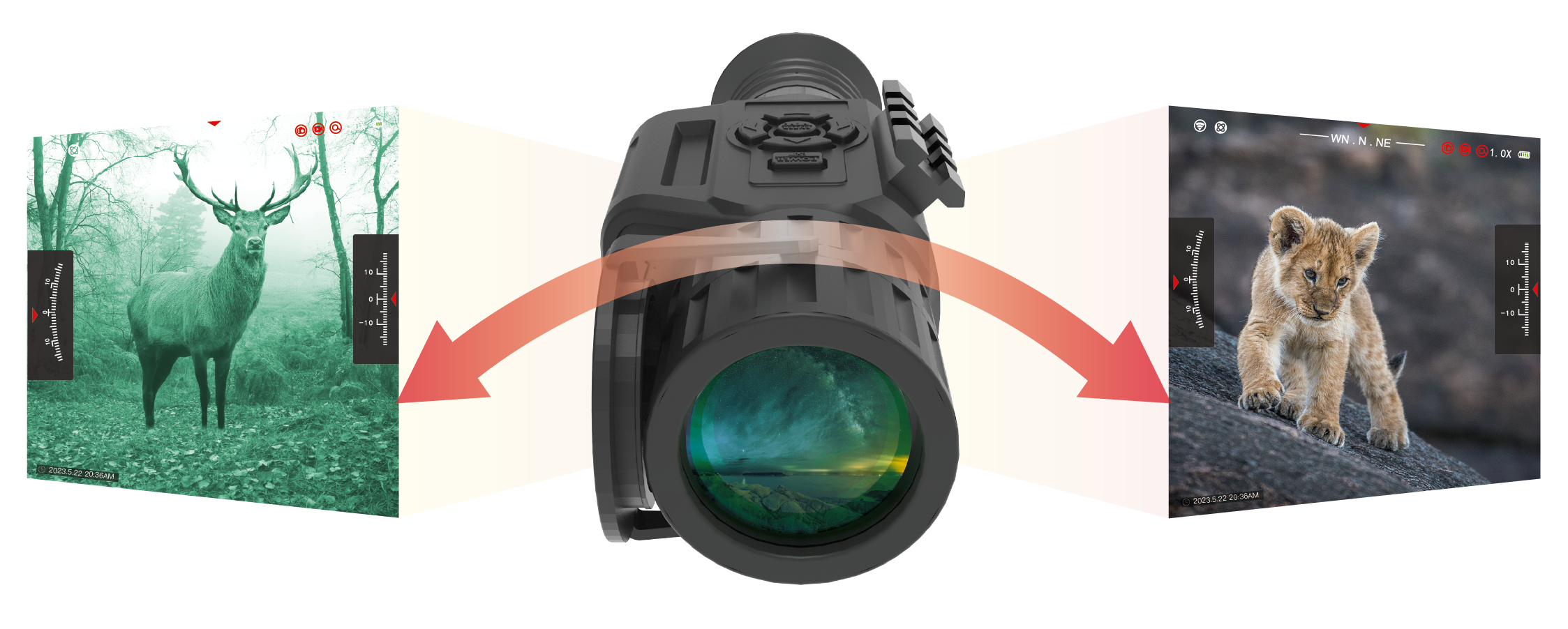

Display Mode
Three imaging options are available: color, black and white, and low light. Use color mode during the day for rich and vibrant images; switch to black and white or low light mode at night for better target identification, meeting your diverse observation needs.
Night Mode
Clearly see every detail, whether it's outdoor exploration, nighttime observation, or late-night work. Night vision equipment provides strong support, making nighttime activities more practical.
Photo and Video Recording
1920*1080 ultra-high-definition resolution, paired with an OLED high-definition display, delivers high-quality images, truly capturing what you see and recording what you want. Video and image files are automatically saved to the memory card, allowing you to relive the highlights through playback.
Picture-in-Picture Mode
Supports continuous 1~8x electronic zoom in picture-in-picture mode, without losing sight of the overall view, allowing for real-time observation and improved target identification accuracy.
One-Button Gun Calibration
Laser identification AI algorithm correction automatically moves the aiming point to the calibrated aiming point, thereby improving shooting accuracy.

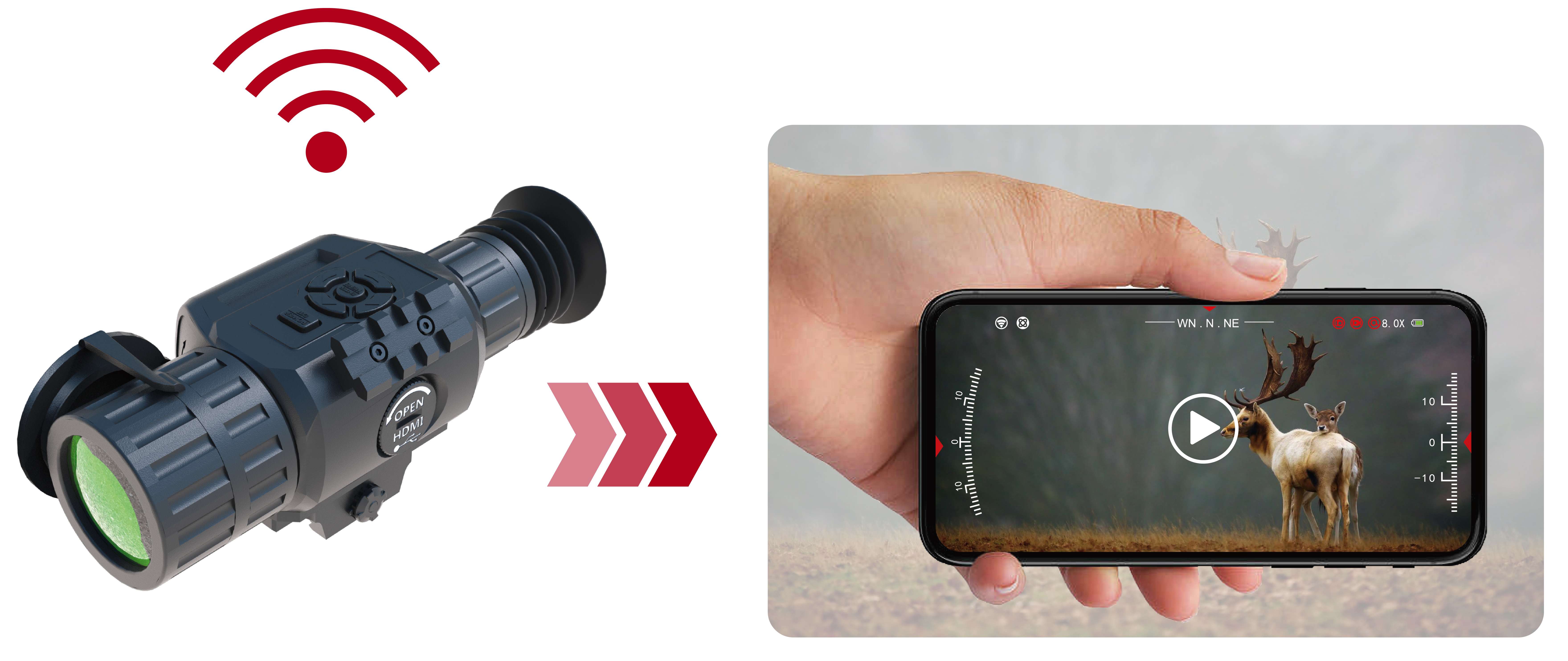

Wireless Transmission
WIFI/hotspot, supports viewing and live streaming via mobile APP software on mobile phones, tablets, and laptops.
Impact Recording
High-precision real-time distance display, equipped with a high-precision eye-safe laser ranging device. One-button ranging accuracy is 1m.
Crosshairs
The unique crosshair mode is essential for fast target acquisition and accuracy at any distance and supports multiple color options.
Application Scenarios
Used for public security law enforcement, drug control and smuggling investigation, armed police anti-control, border patrol, coastal patrol, single-person night reconnaissance, etc.

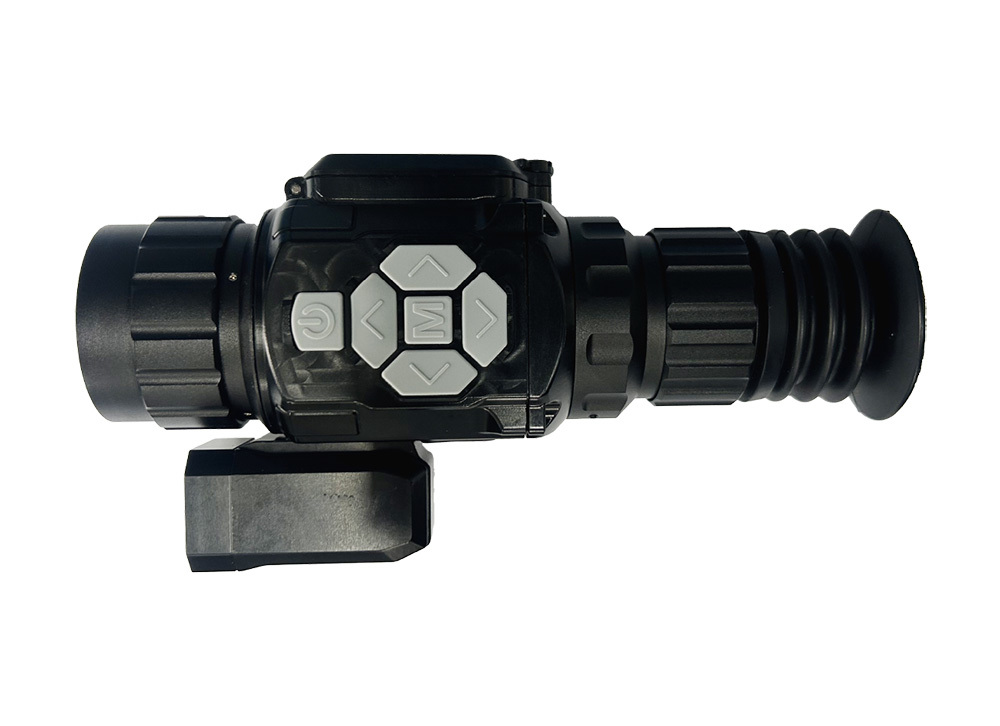

Product Display and Accessories

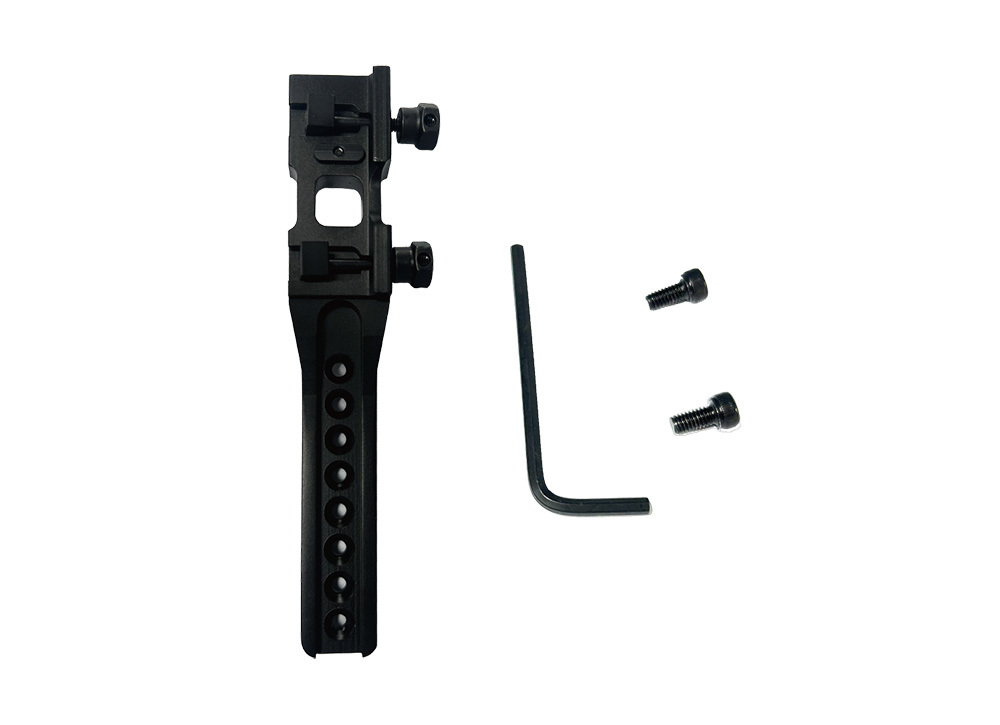

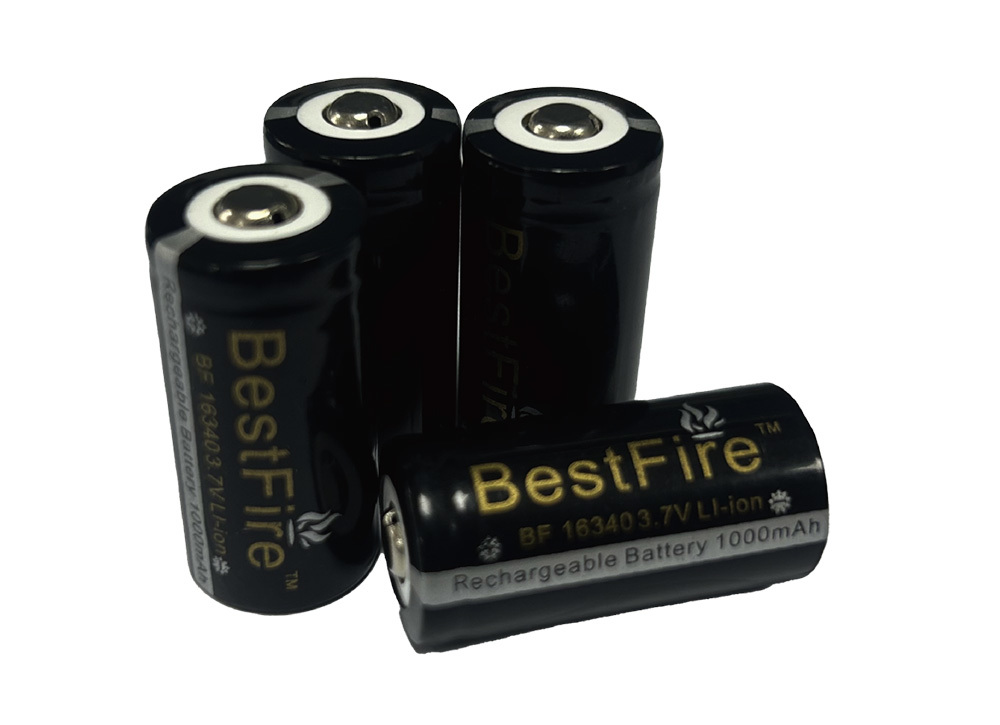

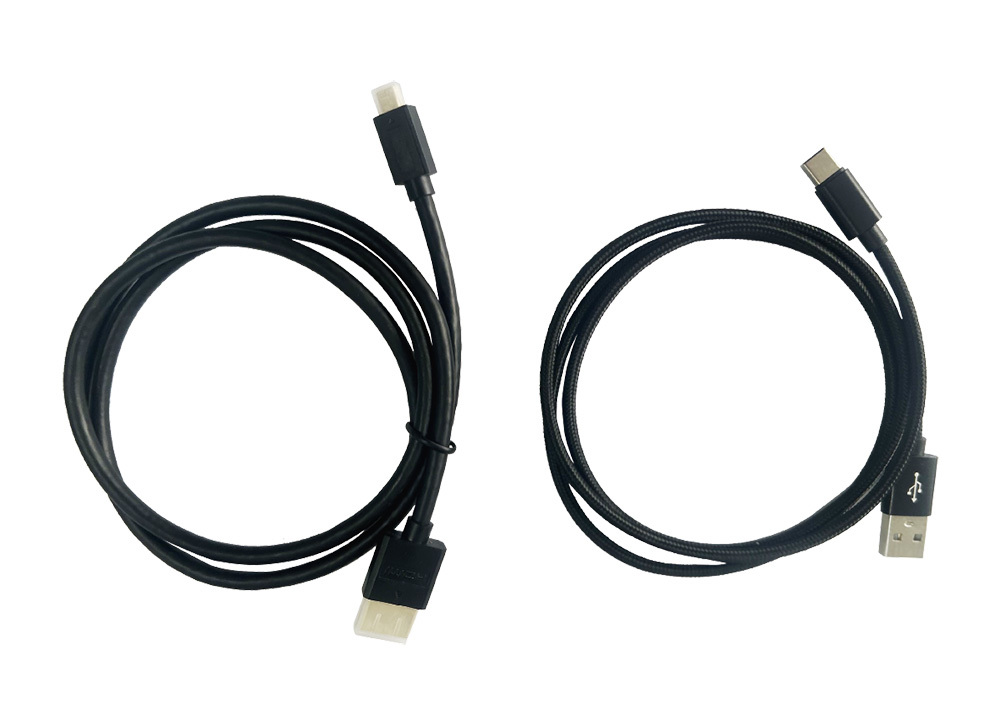

Product appearance and accessories display. Accessories mainly include (main unit, waterproof case, data cable, battery charger, 26650A lithium battery, accessories).
Specifications
Monocular Multifunctional Low-Light Night Vision System |
|
| Low-Light Detector Parameters | |
| Detector Type | 1/1.8” Progressive Scan CMOS |
| Lens Focal Length | 50mm Manual Focus Low-Light Lens @(F1.0) |
| Resolution | 1920×1080 |
| Maximum Frame Rate | 50fps (1920×1080) |
| Color Illuminance | 0.0005lLux |
| Black and White Illuminance | 0.000lLux @(F1.0,AGC ON) |
| Signal-to-Noise Ratio | 55dB |
| Infrared Illumination | Optional sensing wavelengths: 808nm/940nm/980nm |
| Wide Dynamic Range | True Wide Dynamic Range |
| Electronic Shutter | Auto/Manual |
| White Balance | Auto/Manual |
| Focusing Method | Manual |
| Electronic Zoom | 1～8x Continuous Zoom |
| Zoom Mode | Zoom/Picture-in-Picture Zoom |
| Display Mode | Full Color Mode/Black and White Mode/Low Light Mode |
| Reticle | Multiple Options Available |
| Reticle Color | Multiple Options Available |
| Detection Distance Index | For Person (1.8m × 0.5m) / For Vehicle (2.3m × 2.3m) |
| Detection Distance | 1000m (typical climate conditions) / 2500m (typical climate conditions) |
| Recognition Distance | 280m (typical climate conditions) / 600m (typical climate conditions) |
| Eyepiece Parameters | |
| Display | 0.5-inch OLED, 1024×768 resolution |
| Contrast Ratio | 1000:1 |
| Eye Relief | 35mm |
| Eyepiece Magnification | 12x |
| Image Parameters | |
| Video Format | MP4 |
| Image Storage | JPG |
| Image Resolution | 1024×768 |
| Storage Capacity | Standard 64G (supports up to 256G) |
| Image Output | HDMI@1920×1080 |
| Photo Playback | Supported |
| Video Playback | Supported |
| Interface Description | |
| Data Export | TAPE-C 2.0 |
| External Power Supply | DC 5V, maximum current 1.5A |
| Data Access | TTL external anemometer/laser rangefinder |
| Wireless Transmission | Supports WIFI/hotspot modes, allowing viewing and live streaming via mobile terminal APP software (such as Facebook, Linkedin, Twitter, Douyin, TikTok, etc.) on mobile phones, tablets, and laptops. |
| Data Sensor | |
| Impact Sensor | Impact-activated recording, saving videos before and after impact. Video length and impact sensitivity are adjustable. |
| One-Button Gun Calibration | AI-identified laser algorithm, quickly adjusting to the specified position via dividing lines. |
| Azimuth Sensor | Static accuracy 0.05°, dynamic 0.1° |
| Acceleration Sensor | 2G-60G internally adjustable |
| Roll Angle Sensor | Range ±90°, static accuracy 0.05°, dynamic 0.1° |
| Pitch Angle Sensor | Range ±90°, static accuracy 0.05°, dynamic 0.1° |
| Physical Parameters | |
| Impact Resistance | 800G |
| Waterproof Sealing | IP66 (Airtight) |
| Operating Temperature | -40°C～+60°C |
| Storage Temperature | -45°C～+70°C |
| Operating Humidity | Humidity less than 90% (non-condensing) |
| Operating Voltage Range | DC2.6～5.5V |
| Typical Power Consumption | ≤2.8W |
| Reverse Polarity Protection | Yes |
| Over/Under Voltage Protection | Yes |
| Battery Capacity | 2 x 18500 lithium batteries, 3.7V＠1700mAH |
| Working Time | Continuous working time >7 hours |
| Product Dimensions | 203×76×83 (mm) |
| Product Weight | ≤0.45KG |
| Accessories | |
| Charging Data Cable | USB to Type-C |
| Battery | Built-in |
| Charging Plug | US/EU Standard |
| Manual | One |
| Packaging | ABS protective case |
