High-definition three-band night vision system
SSK/NW-IRS1500
Category:
Outdoor Series
Security series
Photoelectric Turntable Series
Product Introduction

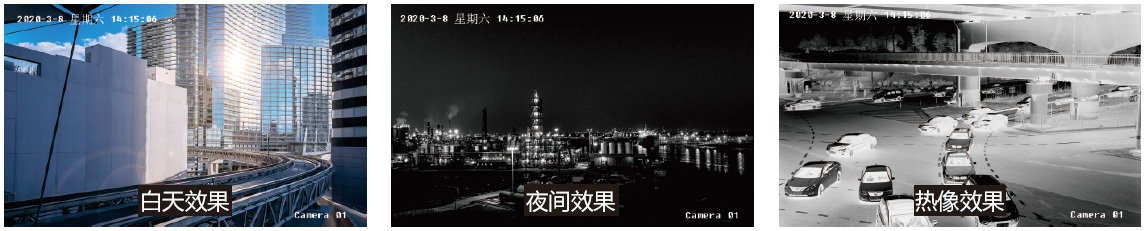

The SSK/NW-IRS1500 series high-definition medium-range three-band night vision system consists of near-infrared laser imaging, far-infrared thermal imaging, visible light low-illumination imaging, and a control system; effectively solving the day and night imaging needs of 24-hour and all-weather environments, supporting color images, black and white images, laser night vision images, and infrared thermal images in 9 selectable color bases throughout the day; featuring clear imaging, and the ability to show imaging details with fog penetration and low-illumination 2-megapixel capabilities.
This series of high-definition medium-range top-mounted three-band night vision systems has a maximum detection range of 5000 meters and a maximum recognition range of 2000 meters; the highly integrated, unified design concept makes it more convenient and faster during engineering installation, making it an excellent product for night vision monitoring construction selection; it has been successfully applied to various industries such as forest fire prevention, petrochemicals, natural disaster monitoring, military border defense, maritime water conservancy, waterways, nature reserves, public security armed police, airports, cultural relic protection, and energy mining.
Product Features
Day and Night Same Focal Length Function: At the day-night critical point, the color and black and white switching images can achieve clear imaging without manual adjustment of the focusing function.
Automatic Light Adjustment Function: Automatically adjusts the laser emission brightness according to the intensity of external light, making the observed target clearly visible within the effective visual range at night, effectively avoiding overexposure or underexposure.
External Laser Adjustment: External fine-tuning mechanism, simple debugging.
Grating Homogenization Function: The laser illumination system has multiple homogenization and collimation processes, the light exposure is uniform, and the light spot maintains precise consistency and coaxiality with the CCD/COMS imaging system, without polarization or multi-point refraction and reflection phenomena, resulting in a clear and concise image.
Dual Synchronous Rectification Technology: The equipment power supply uses dual synchronous rectification technology, and the power conversion efficiency is over 97%.
Strong Light Suppression Protection Function: To avoid rapid aging and damage to the CCD/COMS under strong light, this product has a strong light suppression protection function; when encountering strong light, it will instantly cut off the CCD/COMS sensing interface, effectively protecting the CCD/COMS from strong light damage.
Fog Penetration Function: The equipment uses an anti-fog window, and the system has the ability to penetrate fog under moderate climatic conditions.
Simultaneous Zoom Function: When the laser is turned on at night, the laser irradiation angle automatically adapts to the imaging angle of the camera system, and the laser spot can automatically follow the changes when the field angle of the lens changes, automatically adjusting the laser irradiation angle and intensity.
Internal Temperature Control: The device has a built-in constant temperature heating and cooling device, which starts the heating device at low temperatures and the cooling device at high temperatures, ensuring that the device operates normally and stably for a long time under harsh conditions.
Using a multi-layer coating process and an external dustproof, waterproof, and wiper-free design, it can prevent frost and fog on the inner and outer windows, suitable for outdoor application needs, and effectively avoids the increased maintenance and maintenance costs caused by wiper blade aging.
Dual Video Overlay Technology: Visible light and infrared images can be displayed simultaneously in one image, and freely switched.
Application Scenarios
It can be widely used in places that require large-scale high-definition monitoring with no light or weak light, such as rivers, forests, highways, railways, airports, ports, guard posts, squares, parks, scenic areas, streets, stations, large venues, and community perimeters.
Specifications
| High-Definition Three-Band Night Vision System |
|
| Laser Parameters |
|
| Laser Power |
15w |
| Control Interface |
RJ45 |
| Optical Output |
Numerical Aperture 0.22 |
| Homogenization |
Microlens Array |
| Irradiation Angle |
0.2°～45° |
| Laser Wavelength |
808nm/915nm/940nm/980nm (optional) |
| Effective Distance |
Over 2500 meters |
| Thermal Imaging System |
|
| Detector Type |
Uncooled vanadium oxide or polysilicon |
| Operating Band |
7～14μm |
| Detector Specifications |
384×288/640×480(/12μm) |
| Image Frame Rate |
50Hz |
| Lens Parameters |
50mm, 75mm, 100mm / Optional |
| Focusing Method |
Electric/Autofocus |
| Electronic Zoom |
2～8x continuous zoom |
| Hot Spot Tracking |
Optional |
| Boundary Detection |
Optional |
| Pseudo-color Mode |
9 or more |
| Visible Light Imaging System |
|
| Image Sensor |
1/1.8" Ultra-low Illumination CMOS |
| Minimum Illumination (Lux) |
Color: 0.0005Lux; Black and white: 0.0001Lux @(F1.2) |
| Aperture Control |
F3.8～360 |
| Long Focal Length |
10～320mm |
| Focus Mode |
Electric/Command Trigger/Zoom Trigger |
| Back Focus Mode |
Auto/Manual |
| Wide Spectrum |
The system uses a wide-spectrum coating, with a spectral range of 400～1200nm |
| Shutter |
1 second～1/100000 second |
| Slow Shutter |
Supported |
| Auto Aperture |
DC Drive |
| Day/Night Conversion Mode |
ICR Infrared Filter |
| Video Compression Standard |
H.265 / H.264 |
| Video Compression Bit Rate |
32Kbps～16Mbps |
| Main Stream Resolution and Frame Rate |
50Hz: 25fps/60Hz: 30fps (1920×1080，1280×720) |
| Third Stream Resolution and Frame Rate |
50Hz: 25fps/60Hz: 30fps (1920×1080，1280×960) |
| Image Enhancement |
Backlight Compensation, Strong Light Suppression, Defogging, Electronic Image Stabilization, 3D Noise Reduction |
| Storage Function |
Supports local storage and network interruption resume (128G) |
| Communication Interface |
RJ45 100M/1000M adaptive Ethernet port, RS-485 |
| Interface Protocol |
ONVIF(PROFILE S，PROFILE G)，ISAPI，GB28181 |
| Supported Protocols |
Supports mainstream protocols |
| Event Detection |
Abnormal Detection, Identification Detection |
| Wide Dynamic |
Ultra-wide dynamic range up to 120dB |
| External Protection |
Supports lightning protection, surge protection, and electrostatic protection |
| Electric Turret |
|
| Horizontal Rotation Angle |
0°～360° continuous rotation (adjustable) |
| Vertical Rotation Angle |
Tilt -75°～+40° (optional -85°～+85°) |
| Horizontal Rotation Speed |
0.1°/S～60°/S |
| Vertical Rotation Speed |
0.1°/S～60°/S |
| Preset |
256 |
| Communication Protocol |
Pelco/D/P industry protocol |
| Auto Cruise |
1 or more custom |
| Guard Position |
Supported |
| Maximum Load |
15KG |
| Other |
|
| Window Glass |
Optical waterproof and anti-reflective coating |
| Connector |
Complies with national standard GB5226-85 |
| Protective Cover/Sunshade |
All-aluminum alloy material, used with outdoor protective cover |
| Protective Cover Accessories |
All-aluminum alloy aviation connector |
| Material |
Aluminum alloy material, surface spraying/salt spray resistant (optional) |
| Electrical Performance |
|
| Input Voltage |
AC/DC24V±10% adaptive or AC220V±20% (optional) |
| Power |
≤120W |
| Power Consumption |
Average power consumption 100W |
| Environmental Performance |
|
| Dust and Waterproof Rating |
IP66 |
| Operating Temperature |
-50℃～+70℃ |
| Storage Temperature |
-60℃～+75℃ |
| Temperature Control System |
Automatic temperature control/8℃±5℃ on, 20℃±5℃ off/optional |
| Physical Characteristics |
|
| Product Dimensions |
530×310×480（mm） |
| Product Weight |
25KG |
