High-definition long-range three-band night vision system
SSK/NW-IRS3500
Category:
Outdoor Series
Security series
Photoelectric Turntable Series
Product Introduction

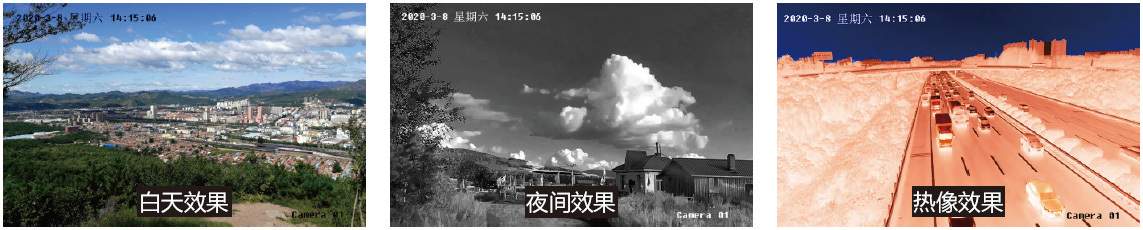

The SSK/NW-IRS3500 series high-definition long-range three-band night vision system consists of a near-infrared laser imaging system, a far-infrared thermal imaging system, a visible light low-illumination imaging system, and a control system; it effectively solves the day and night imaging needs of 24-hour and all-weather environments, supporting color images, black and white images, laser night vision, and infrared thermal imaging, with 9 selectable and switchable imaging functions throughout the day; it has excellent image dehazing and low-illumination imaging detail display capabilities, not only meeting the practicality of industry applications but also greatly improving equipment usage efficiency.
This series of high-definition long-range top-mounted three-band night vision systems has a maximum detection distance of 5000 meters during the day and 3500 meters at night; the product's highly integrated, unified design makes it more convenient and faster during engineering installation, making it an ideal product for night vision monitoring selection by construction and design units. It has been successfully applied to various industries, including forest fire prevention, petrochemicals, natural disaster monitoring, military border defense, maritime water conservancy, waterways, nature reserves, public security armed police, airports, cultural relic protection, and energy mining.
Product Features
Day and night same back focus function: The color and black and white switching images at the day and night critical point can achieve clear images without manual adjustment of the focusing function.
Automatic light adjustment function: Automatically adjusts the laser emission brightness according to the intensity of external light, making the observed target clearly visible within the effective visual range at night, effectively avoiding overexposure or insufficient exposure.
External laser adjustment: External fine-tuning mechanism, simple debugging.
Grating homogenization function: The laser illumination system has a multi-homogenization collimation process, the light exposure is uniform, and the light spot maintains precise consistency and coaxiality with the CCD/COMS imaging system, without polarized light or multi-point refraction and reflection phenomena, resulting in a clean imaging picture.
Dual synchronous rectification technology: The equipment power supply uses dual synchronous rectification technology, and the power conversion efficiency is over 97%.
Dehazing function: The system can penetrate fog and haze under moderate climatic conditions.
Simultaneous zoom function: When the laser is turned on at night, the laser irradiation angle automatically adapts to the imaging angle of the camera system, and the laser spot can automatically follow the changes when the lens field of view changes, automatically adjusting the laser irradiation angle and intensity.
Internal temperature control: The device has built-in temperature heating and cooling devices. The heating device is started at low temperatures, and the cooling device is started at high temperatures to ensure that the device operates normally and stably for a long time under harsh conditions.
Using multi-layer film coating technology and external dustproof, waterproof, and wiper-free design, it can prevent frost and fog on the inner and outer windows, suitable for outdoor application needs, and effectively avoids the increase in engineering maintenance and maintenance costs caused by wiper blade aging.
Three-proof outdoor spray-painting process, resistant to salt spray and acid-base corrosion.
Application Scenarios
It can be widely used in places that require large-scale high-definition monitoring in low-light or no-light environments, such as rivers, forests, highways, railways, airports, ports, guard posts, squares, parks, scenic areas, streets, stations, large venues, and community perimeters.
Specifications
| High-Definition Long-Range Three-Band Night Vision System |
|
| Laser Parameters |
|
| Laser Power |
30w |
| Control Interface |
RJ45 |
| Optical Output |
Numerical Aperture 0.22 |
| Homogenization |
Microlens Array |
| Irradiation Angle |
0.2～45° |
| Laser Wavelength |
808nm/915nm/940nm/980nm (optional) |
| Effective Distance |
Over 3000 meters |
| Thermal Imaging System |
|
| Detector Type |
Uncooled vanadium oxide or polysilicon |
| Operating Band |
7～14μm |
| Detector Specifications |
384×288/640×512 (12μm) |
| Image Frame Rate |
50Hz |
| Lens Parameters |
75mm, 100mm, 150mm optional |
| Focusing Method |
Electric/Autofocus |
| Electronic Zoom |
2～8x continuous zoom |
| Hot Spot Tracking |
Optional |
| Boundary Detection |
Optional |
| Pseudo-color Mode |
9 or more |
| Visible Light System |
|
| Image Sensor |
1/1.8" ultra-low illumination CMOS |
| Minimum Illumination (Lux) |
Color: 0.0005Lux; Black and white: 0.0001Lux @(F1.2) |
| Aperture Control |
F4.0～360 |
| Long Focal Length |
12.5～750mm/ |
| Focusing Mode |
Electric/Command Trigger/Zoom Trigger |
| Back Focus Mode |
Automatic/Manual |
| Wide Spectrum |
The system uses a wide-spectrum coating, with a spectral range of 400～1200nm |
| Shutter |
1 second～1/100000 second |
| Slow Shutter |
Supported |
| Auto Aperture |
DC Drive |
| Day/Night Conversion Mode |
ICR Infrared Filter |
| Video Compression Standard |
H.265/H.264 |
| Video Compression Bit Rate |
32Kbps～16Mbps |
| Main Stream Resolution and Frame Rate |
50Hz: 25fps/60Hz: 30fps (1920×1080，1280×720) |
| Third Stream Resolution and Frame Rate |
50Hz: 25fps/60Hz: 30fps (1920×1080，1280×960) |
| Image Enhancement |
Backlight Compensation, Strong Light Suppression, Defogging, Electronic Image Stabilization, 3D Noise Reduction |
| Storage Function |
Supports local storage and network interruption resume (128G) |
| Communication Interface |
RJ45 100M / 1000M adaptive Ethernet port, RS-485 |
| Interface Protocol |
ONVIF(PROFILE S，PROFILE G)，ISAPI，GB28181 |
| Supported Protocols |
Supports mainstream protocols |
| Event Detection |
Abnormal Detection, Identification Detection |
| Wide Dynamic |
Ultra-wide dynamic range up to 120dB |
| External Protection |
Supports lightning protection, surge protection, and electrostatic protection |
| Electric Pan-Tilt |
|
| Horizontal Rotation Angle |
0°～360° continuous rotation (adjustable) |
| Vertical Rotation Angle |
Tilt -45°～+45° (optional -60°～+60°) |
| Horizontal Rotation Speed |
0.01°/S～30°/S |
| Vertical Rotation Speed |
0.01°/S～15°/S |
| Lens Control |
Supports lens preset |
| Preset Positions |
256 |
| Communication Protocol |
Pelco/D/P industry protocol/optional |
| Auto Cruise |
1 or more custom |
| Guard Position |
Supported |
| Maximum Load |
50KG～80KG |
| Other |
|
| Window Glass |
Optical waterproof and anti-reflective coating |
| Connector |
Complies with national standard GB5226-85 |
| Protective Cover/Sunshade |
Aluminum alloy material, used with outdoor protective cover |
| Protective Cover Accessories |
Aluminum alloy aviation connector |
| Material |
Aluminum alloy material, surface spray plastic / salt spray resistant (optional) |
| Electrical Performance |
|
| Input Voltage |
AC / DC24V±10% adaptive or AC220V±20% (optional) |
| Power |
≤150W |
| Power Consumption |
Average power consumption 100W |
| Physical Characteristics |
|
| Product Dimensions |
720×420×610（mm） |
| Product Weight |
65KG |
