High-definition dual-spectral photoelectric turntable
SSK/NW-HTK2500
Category:
Outdoor Series
Security series
Large optoelectronic turntable
Product Overview
The Soske dual-spectrum high-definition optoelectronic pan-tilt unit (single IP intelligent version) is a multi-scenario intelligent product suitable for forest fire prevention, fishery administration, and high-altitude observation. It has built-in advanced ship identification and tracking, fire detection, and linkage algorithms. The maximum detection distance for fire points (2m*2m) is 8.3km, for vehicles (2.3m*2.3m) is 9.5km, for personnel (0.75*1.8m) is 3.1km, and for ships (10*4m) is 16.6km.

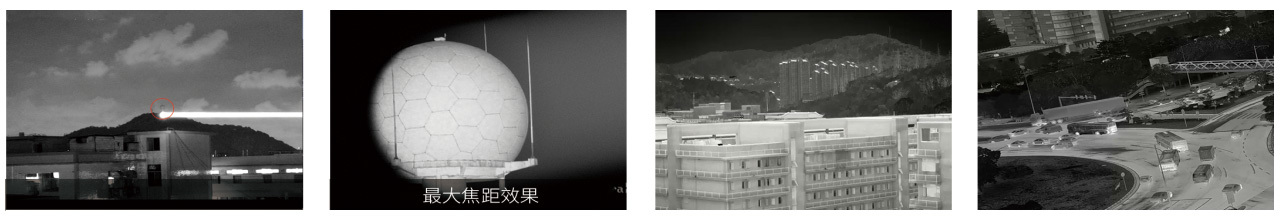

The thermal imaging camera ensures that the equipment operates normally day and night.
Based on deep learning, visible light and thermal imaging ship identification and tracking algorithms are used. It can also link the pan-tilt unit to capture and upload images. Thermal imaging detects fire points in the entire area, visible light detects smoke and fire, and dual-axis gyro stabilization prevents shaking, ensuring that the monitoring image is not affected by environmental bumps. The device also features optical and algorithmic fog penetration and remote power-off and restart.
Single IP dual-channel video, horizontal and vertical dual-axis gyro mechanical image stabilization, real-time fire detection and smoke and fire identification algorithms based on deep learning visible light and thermal imaging ship identification and tracking algorithms, apple peel intelligent scanning, intelligent cruise scanning, automatic rain sensor wiper, optical fog penetration + algorithm fog penetration.
Application Scenarios
Forest fire prevention, airport runways, maritime search and rescue monitoring, urban high-altitude observation, land resource protection, offshore aquaculture, and various environments requiring strong wind resistance.
Specifications
| Dual-spectrum High-Definition Optoelectronic Pan-Tilt Unit |
||||
| Thermal Imaging Camera |
||||
| Imager |
Uncooled Detector |
|||
| Effective Pixels |
640×512 |
|||
| Focal Length |
f=75mm |
|||
| Aperture |
F1.0 |
|||
| Frame Rate |
50fps |
|||
| Visible Light Camera |
||||
| Imager |
1/1.8″ Progressive Scan CMOS Image Sensor |
|||
| Effective Pixels |
1920×1080P 25fps 2 Megapixels |
|||
| Illumination |
Ultra-low illumination camera, no supplementary light color 0.0005LUX, black and white 0.00001LUX |
|||
| Automatic Control |
Auto White Balance, Auto Gain, Auto Exposure |
|||
| Signal-to-Noise Ratio |
≥55dB |
|||
| Wide Dynamic Range |
120dB |
|||
| Strong Light Suppression |
On/Off |
|||
| Backlight Compensation |
On/Off |
|||
| Noise Reduction |
3D Noise Reduction |
|||
| Electronic Shutter |
1/25～1/100000s, |
|||
| Day/Night Mode |
Filter Switching |
|||
| Focus Mode |
Auto/Manual |
|||
| Focal Length |
6.0mm～320mm，52x Optical Zoom |
|||
| Horizontal Field of View |
61.8°（Wide Angle）～1.6°（Telephoto） |
|||
| Maximum Aperture Ratio |
F1.4-F4.7 |
|||
| Monitoring Distance |
||||
| Target/Distance |
Person 1.8*0.75m |
Vehicle 2.3*2.3m |
Ship 10*4m |
Fire Point 2*2m |
| Detection Distance |
3126m |
9584m |
16666m |
8333m |
| Recognition Distance |
781m |
2396m |
4166m |
2083m |
| Identification Distance |
390m |
1198m |
2083m |
1041m |
| Pan-Tilt Unit Functions |
|
|||
| Horizontal Range |
360° Continuous Rotation |
|||
| Horizontal Speed |
0.05°～250°/s |
|||
| Vertical Range |
-60°～90° Rotation (with Wiper) |
|||
| Vertical Speed |
0.05°～150°/s |
|||
| Pan-Tilt Unit Positioning Accuracy |
0.1° |
|||
| Variable Zoom |
Supported |
|||
| Preset Points |
255 |
|||
| Cruise Scan |
16 Routes |
|||
| Apple Peel Scan |
16 Routes |
|||
| Automatic Rain Sensor Wiper |
Supported |
|||
| Intelligent Analysis |
||||
| Visible Light and Thermal Imaging Ship Identification and Tracking |
Minimum Recognition Pixel: 40*20 |
|||
| Concurrent Tracking Targets: 50 |
||||
| Thermal imaging and visible light tracking algorithms can be configured for timed switching |
||||
| Linked Capture and Upload: Supported |
||||
| Apple Peel Cruise Scan Linkage |
Supported |
|||
| Hot Spot Detection |
Supported |
|||
| Image Stabilization Function |
||||
| Gyro Stabilization |
Dual Axis |
|||
| Stabilization Frequency |
<=1HZ |
|||
| Gyro Steady-State Accuracy |
Pitch 0.5°, Heading calibration after short-term steady-state accuracy 0.5° |
|||
| Maximum Carrier Tracking Speed |
100°/second |
|||
| Network Function |
||||
| Video Compression |
H.264/H.265 |
|||
| Power Failure Memory |
Supported |
|||
| Network Interface |
RJ45 |
|||
| Compatibility |
ONVIF、GB/T GB28181、GA/T1400 |
|||
| Network Protocol |
IPv4, HTTP, FTP, RTSP, DNS, NTP, RTP, TCP, UDP, IGMP, ICMP, ARP |
|||
| Physical Parameters |
||||
| External Data Interface |
RS422 |
|||
| Power Supply |
DC24V±15%, 5A |
|||
| Power Consumption |
Maximum Power Consumption 28W～60W |
|||
| Protection Level |
IP67 |
|||
| Electromagnetic Compatibility |
Lightning, surge, and transient protection, compliant with GB/T17626.5 6KV standard |
|||
| Salt Spray Resistance |
720 hours continuous test, severity level 4 (optional) |
|||
| Operating Temperature |
-40℃～70℃ |
|||
| Operating Humidity |
Humidity less than 90% |
|||
| Dimensions |
446mm×326mm×247（including wiper） |
|||
| Weight |
20KG |
|||
