Dual-band spherical night vision system
SSK/NW-HDIR
Category:
Outdoor Series
Security series
Dual-band series
Product Introduction
The SSK/NW-HDIRG series of small dual-band PTZ cameras integrates target observation, monitoring, warning, and automatic tracking functions; it consists of an infrared thermal imaging system and a visible light imaging system; all-weather imaging with selectable and switchable color, black and white, and thermal imaging in 11 color palettes; daytime detection distance up to 1000 meters, nighttime detection distance up to 800 meters; complete system integration and strong practicality.
This series of PTZ cameras features clear imaging and detailed images, with a one-button autofocus function; it can detect, automatically identify, track, and alarm moving targets; it has long-focus lens focal length, focus position data feedback, and linkage functions; it also has high-precision positioning, wind resistance, and salt spray corrosion resistance; it is a high-end day and night monitoring system solution for border monitoring, coastal defense monitoring, forest fire prevention, and other industry fields.
Application Scenarios
It can be widely used in places requiring large-scale high-definition monitoring in low-light or no-light conditions, such as rivers, forests, highways, railways, airports, ports, guard posts, squares, parks, scenic areas, streets, stations, large venues, and community perimeters.
Product Features
Dual-band infrared and visible light

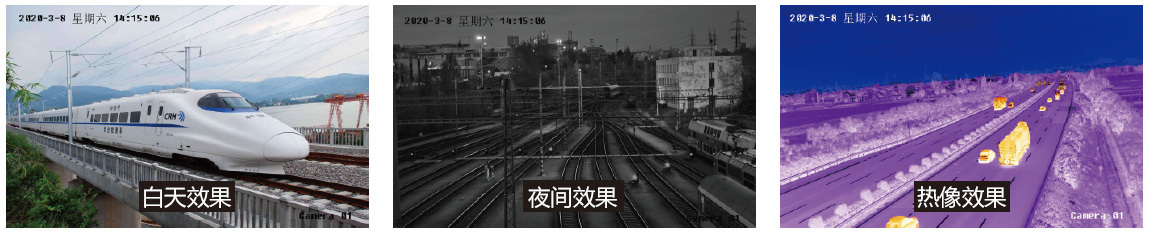

Infrared thermal imaging combined with ultra-low-illumination cameras allows for simultaneous target detection and detail observation.
The thermal imaging section supports 11 color palette switches.
Protective Cover Structure
High-strength aluminum alloy die-cast shell with a full-metal internal structure.
Ultra-strong heat dissipation design reduces the internal temperature of the PTZ camera and prevents fogging inside the camera housing.
Impact-resistant and corrosion-resistant, with an IP66 protection rating.
The camera and infrared light are isolated to avoid the influence of infrared light halo and heat on the camera and image.
System Functions
Visible light image maximum resolution 1920×1080
With automatic wiper cleaning function
Supports multilingual menus and operation prompts, user-friendly interface
Supports 3D intelligent positioning function, which can realize click tracking and zoom in conjunction with NVR and client software
Supports power-off memory, automatically returns to the monitoring position before power-off after power-on
Idle actions, when there is no operation, it can enter various operating modes: guard position, automatic scanning, pattern scanning, automatic cruise
Supports power-on action, the PTZ camera executes the predetermined monitoring task after power-on
Supports parameter changes via web interface
Chinese and English title editing, coordinate and time display
Specifications
| Small dual-band spherical night vision system |
|
| Thermal Imaging Parameters |
|
| Detector Type |
Uncooled focal plane array detector |
| Operating Band |
7μm ～ 14μm |
| Detector Specifications |
384×288 / 640×480 (12μm) |
| Image Frame Rate |
50Hz |
| Lens Focal Length |
35mm |
| Focusing Method |
Autofocus/Electric |
| Hot Spot Tracking |
Optional |
| Pseudo-color Mode |
Black hot, white hot, and other 11 color palette switches |
| Camera Parameters |
|
| Digital Zoom |
16x |
| Aperture |
F1.4-F4.0 |
| Close-up Distance |
100mm～1500mm (wide-angle-telephoto) |
| Shutter |
1/25 seconds to 1/100,000 seconds; |
| Horizontal Angle of View |
2.3-60.5 degrees (wide-angle-telephoto) |
| Zoom Method |
Electric zoom, autofocus |
| White Balance |
Auto, auto tracking white balance, indoor, outdoor |
| Gain Control |
Auto/Manual |
| Backlight Compensation |
On/Off |
| Fog Penetration |
Supported |
| Electronic Image Stabilization |
Supported |
| 3D Noise Reduction |
Supported |
| Day/Night Mode |
Automatic ICR infrared filter |
| Wide Dynamic Range |
Supported |
| Focus Mode |
Auto/Manual |
| Electric Turret |
|
| 3D Intelligent Positioning |
Supported |
| Horizontal Range |
360° continuous rotation |
| Horizontal Speed |
0.05°～150°/s |
| Vertical Range |
-3°～90° |
| Vertical Speed |
0.05°～150°/s |
| Variable Zoom |
Supported |
| Number of Preset Points |
255 |
| Cruise Scan |
6 routes, each route can add 18 preset points, the dwell time can be set |
| Power-off Memory |
Supported |
| Network Parameters |
|
| Network Interface |
RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) |
| Image Size |
1920×1080 |
| Video Frame Rate |
25/30 fps |
| Video Compression |
H.264/H.265 |
| Audio Compression |
16kHz 16bit 32kbps Mp2 |
| Audio Mode |
External active microphone or linear input, linear output |
| Network Protocol |
IPv4/IPv6,HTTP,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,ICMP,DHCP,PPPoE,Onvif |
| Multi-stream |
Dual Stream |
| Security |
Password protection, multi-user access control |
| Environmental Performance |
|
| Power Supply |
AC24±4V，50Hz |
| Power Consumption |
25W |
| Protection Level |
IP66 (outdoor ball), TVS 3000V lightning protection, surge protection, and surge protection |
| Operating Temperature |
-40℃～65 ℃ |
| Operating Humidity |
Less than 90% |
| Physical Characteristics |
|
| Product Dimensions |
190×200×331（mm） |
| Product Weight |
6KG |
