APV4000 panoramic visible light camera
SSK/NW-APV4000
Category:
Outdoor Series
Security series
Special camera series
Product Overview
The ARNW-180 panoramic camera achieves high-resolution real-time stitching of images from four 4K lenses, with 32-megapixel resolution. It is a camera capable of acquiring real-time video data covering a horizontal 180° field of view simultaneously.
This lightweight monitoring solution uses a single panoramic stitching camera to replace multiple traditional surveillance cameras in a single scene. It meets the needs of large-scale, all-weather, multi-dimensional, and comprehensive visual real-time monitoring. It integrates multiple AI algorithms to achieve detection and linkage tracking of various targets and can be widely used in anti-terrorism, important site protection, vehicle monitoring, airport monitoring, ecological detection, and other industries.
Product Features
Ultra-Wide Angle, Global Control

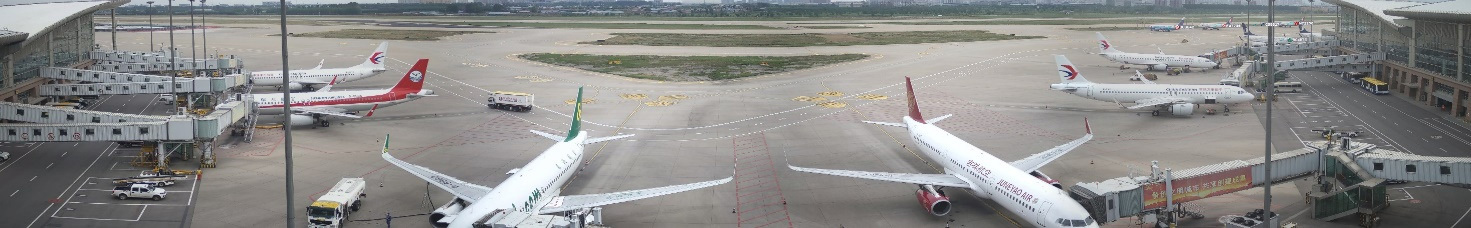

Based on four 4K sensors, the ultra-wide 180° panoramic image eliminates the need for switching between views, providing seamless, blind-spot-free, continuous monitoring of the scene. This effectively solves the problem of fragmented and disjointed images in multi-directional monitoring with ordinary cameras.
32-Megapixel Real-time Monitoring
The sensor has excellent wide dynamic range and detail imaging capabilities, featuring high pixel resolution, clear detail imaging, and accurate color reproduction. The image resolution of a single 4K camera can reach up to 3840*2160, and the panoramic video pixel resolution is up to 32 million (4 4K cameras stitched) and 48 million (6 4K cameras stitched), making it easier to control details.

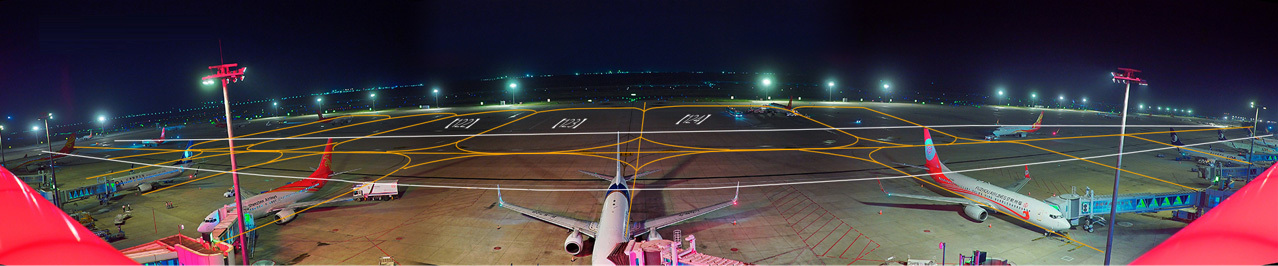

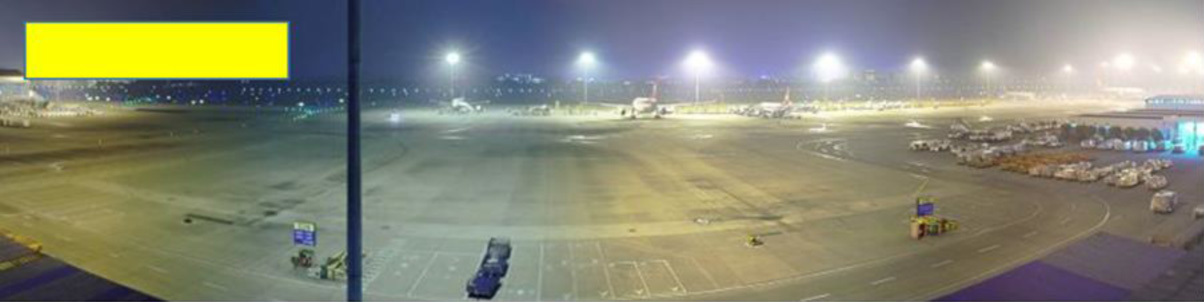

Day and Night Full Color, All-Weather Monitoring
Using a high-sensitivity sensor and a large-aperture lens, it can achieve a sensitivity of up to ISO 409600 under illumination conditions as low as 0.00055 lx, outputting ultra-wide-angle full-color images even in low light. Combined with advanced image enhancement technology, it can effectively image in low-light conditions at night, insufficient light, low contrast, direct sunlight, shrubbery areas, bad weather, smoke and haze, etc. It provides real-time visual assessment and identification, area intrusion and alarm, target tracking and alarm, and provides all-weather motion detection and clear, transparent moving images.
Wide-Angle Distortion-Free, True-to-Life Scene Reproduction. The panoramic video uses advanced video fusion and stitching technology, including image distortion correction, cylindrical projection, distortion correction, seam processing, image matching and fusion, and video synchronization. The final image is seamless, with multiple cameras strictly synchronized, consistent color balance, and no ghosting or missing parts at the seams, truly reproducing the global real-time image of the monitoring scene, providing users with a perfect panoramic video experience.
Multi-Camera Synchronous Trigger Acquisition, No Parallax
Multiple sensors achieve strict frame synchronization and synchronous exposure, effectively avoiding problems such as image breakage, misalignment, and ghosting caused by the interleaving of multiple camera images due to shaking. At the same time, multiple cameras use the same exposure parameters for better image consistency.
For vehicle-mounted applications, the asynchronicity of multiple cameras can damage the integrity and stability of the panoramic image, reducing image quality and visual appeal. Therefore, for vehicle-mounted panoramic systems, ensuring synchronization between cameras or sensors is crucial to provide a high-quality, seamless panoramic experience.

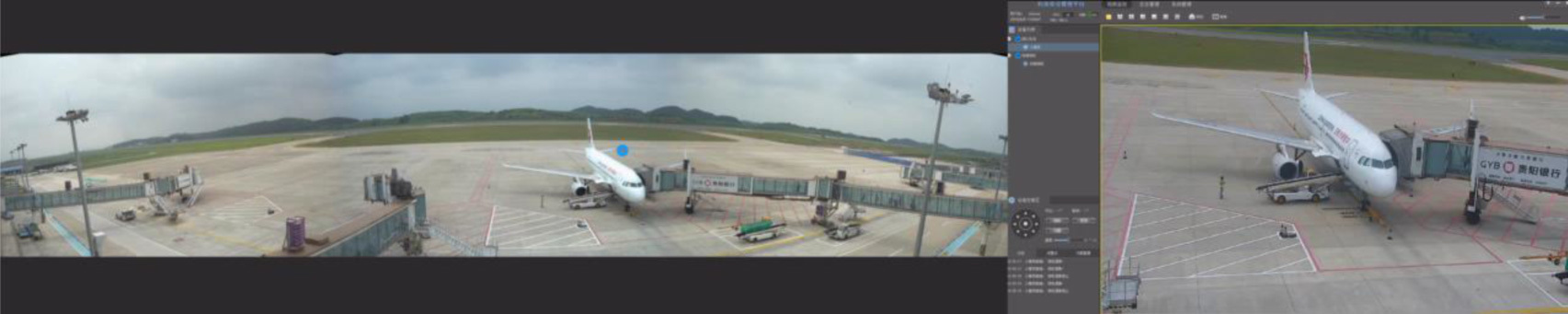

Intelligent Linkage, Instantaneous Viewing
Supports linkage with turntables, pan-tilt units, and PTZ cameras to achieve "instantaneous viewing," guiding the turntable or PTZ camera to automatically zoom in on distant details in the panoramic video image.
Built-in AI Algorithm (Optional)
Supports AI algorithms such as detection and tracking of personnel, vehicles, ships, and aircraft.
Link Low-Point Cameras to Achieve "Picture-in-Picture"
Supports access to on-site low-point monitoring cameras and overlaying camera labels. By clicking on the corresponding labels, you can quickly view videos of key areas and surrounding areas of incidents in a "picture-in-picture" format in the panoramic video for multi-angle viewing.
Scene Information Enhancement Display
Supports overlaying key geographic information layers on the panoramic video, such as runways, taxiways, aircraft position safety lines, aircraft position numbers, aircraft taxi guidance lines, etc., for highlighting.
Information Tagging
Supports docking with existing airport systems (ADS-B, A-CDM) to overlay flight numbers, aircraft registration numbers, aircraft type information, and airline information on aircraft targets for display.
Flexible Configuration, Adaptable to Multiple Scenarios
Supports various stitching schemes with a horizontal 180-degree and vertical 30-degree field of view, according to the actual scene, to meet the needs of airport scenarios.
Stable and Reliable, High Protection Level
Integrated aluminum alloy die-cast housing, innovative high-strength shock-resistant and wind-resistant structure, increases product lifespan, and improves stability during long-term use. Equipped with a sunshade and temperature control system to keep the lens clean and provide clear images at all times. Fully sealed design, overall three-proof spray treatment, including stainless steel screws, connectors, leads, and all related accessories meet the requirements of constant temperature, waterproof, dustproof, and corrosion-resistant, supporting lightning protection, surge protection, and surge protection functions, with an IP66 protection level.
Comprehensive Compatibility and Accessories
The product supports standard protocols such as RTSP video streams and is compatible with mainstream monitoring platforms, NVRs, and decoders, allowing for quick deployment and plug-and-play functionality. It can provide an immersive panoramic AR stereoscopic control platform/AR+3DGIS mixed reality stereoscopic control system for independent control.
Technical Parameters
| Panoramic Visible Light Camera |
|
| Sensor |
1/1.2 ultra-low illumination CMOS image sensor; |
| Effective Pixel Count |
3200@3840*2160*4（8MP） |
| Maximum Frame Rate |
25fps; |
| Lens |
F: 1.0±10% |
| Focal Length: 6mm; |
|
| Minimum Illumination |
Color: 0.00055 Lux |
| Field of View |
Horizontal 180° |
| Monitoring Range |
Radius ≥3KM |
| ISP |
Simultaneous exposure, 3A algorithm, 3DNR noise reduction, defogging, distortion correction, dark corner removal |
| Video Compression Standard |
Maximum 16384*2160@25fps, up to 100Mbps |
| Maximum Resolution |
32 million pixels |
| Network Protocol |
TCP/IP, RTSP, GB28181, ONVIF |
| Network Interface |
Built-in RJ45 port, supports 10M/100M/1000M BASE-T Ethernet |
| AI Performance |
4.0 TOPS |
| Operating Temperature and Humidity |
-30℃~60℃/95%RH |
| Protection Level |
IP66, lightning protection, surge protection, anti-static, waterproof, dustproof |
| Power Supply/Power Consumption |
DC12V, power consumption ≤10W; |
| Overall Dimensions and Weight |
261.7mm*214.9mm*74mm;3.7KG |
