Monocular multi-functional thermal imaging gun sight

The SSK/NW-HTS75 series handheld thermal imager monocular night vision device consists of an infrared thermal imaging system and a high-resolution OLED imaging system. The product features high integration, small size, light weight, and low power consumption, making it a cost-effective product for mobile handheld fog penetration and night vision monitoring. This series of devices effectively addresses the need for 24/7 mobile day and night imaging. It supports 9 color palette switches for thermal imaging throughout the day and boasts excellent fog penetration imaging capabilities, with a maximum detection range of 5000 meters during day and night. It has been successfully applied to security fields such as forest fire fighting, search and rescue, military border defense, maritime and water conservancy, waterways, nature reserves, public security and armed police, airports, cultural relic protection, and energy mining, for single-soldier, single-police officer, and single-person patrol inspections.

Contact Us

Guojin@settall.com

+86 010-63256377

Category:

Outdoor Series

Security series

Thermal Imaging Sight Series

Retail Price

Market Price

The SSK/NW-HTS75 series handheld thermal imager monocular night vision device consists of an infrared thermal imaging system and a high-resolution OLED imaging system. The product features high integration, small size, light weight, and low power consumption, making it a cost-effective product for mobile handheld fog penetration and night vision monitoring. This series of devices effectively addresses the need for 24/7 mobile day and night imaging. It supports 9 color palette switches for thermal imaging throughout the day and boasts excellent fog penetration imaging capabilities, with a maximum detection range of 5000 meters during day and night. It has been successfully applied to security fields such as forest fire fighting, search and rescue, military border defense, maritime and water conservancy, waterways, nature reserves, public security and armed police, airports, cultural relic protection, and energy mining, for single-soldier, single-police officer, and single-person patrol inspections.
Leave a Message Related Solutions File Download
Quantity
-
+

Inventory Remaining

加入购物车
立即购买

隐藏域元素占位

Monocular multi-functional thermal imaging gun sight
Monocular multi-functional thermal imaging gun sight
Monocular multi-functional thermal imaging gun sight
Monocular multi-functional thermal imaging gun sight
Monocular multi-functional thermal imaging gun sight
Monocular multi-functional thermal imaging gun sight
+
  • Monocular multi-functional thermal imaging gun sight
  • Monocular multi-functional thermal imaging gun sight
  • Monocular multi-functional thermal imaging gun sight
  • Monocular multi-functional thermal imaging gun sight
  • Monocular multi-functional thermal imaging gun sight
  • Monocular multi-functional thermal imaging gun sight
Beijing Soske Technology Development Co., Ltd

Monocular multi-functional thermal imaging gun sight

The SSK/NW-HTS75 series handheld thermal imager monocular night vision device consists of an infrared thermal imaging system and a high-resolution OLED imaging system. The product features high integration, small size, light weight, and low power consumption, making it a cost-effective product for mobile handheld fog penetration and night vision monitoring. This series of devices effectively addresses the need for 24/7 mobile day and night imaging. It supports 9 color palette switches for thermal imaging throughout the day and boasts excellent fog penetration imaging capabilities, with a maximum detection range of 5000 meters during day and night. It has been successfully applied to security fields such as forest fire fighting, search and rescue, military border defense, maritime and water conservancy, waterways, nature reserves, public security and armed police, airports, cultural relic protection, and energy mining, for single-soldier, single-police officer, and single-person patrol inspections.

SSK-HTS75

Guojin@settall.com

+86 010-63256377

Category:

Outdoor Series

Security series

Thermal Imaging Sight Series

Product Consulting Related Products File Download

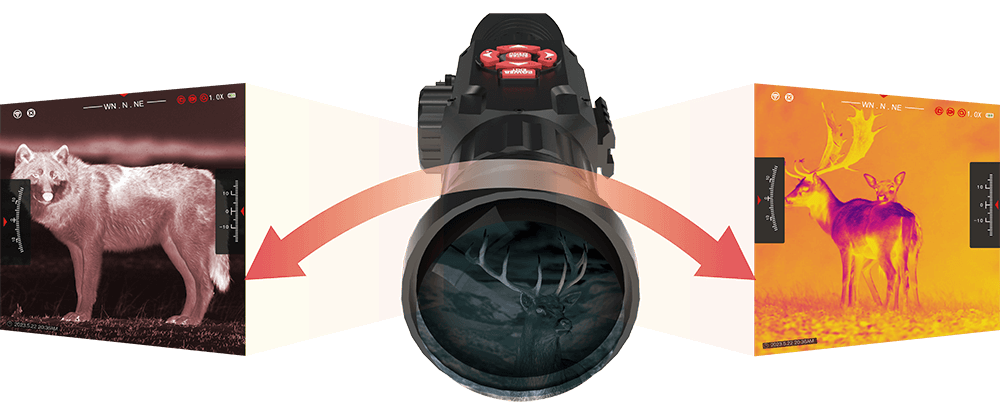

Display Mode

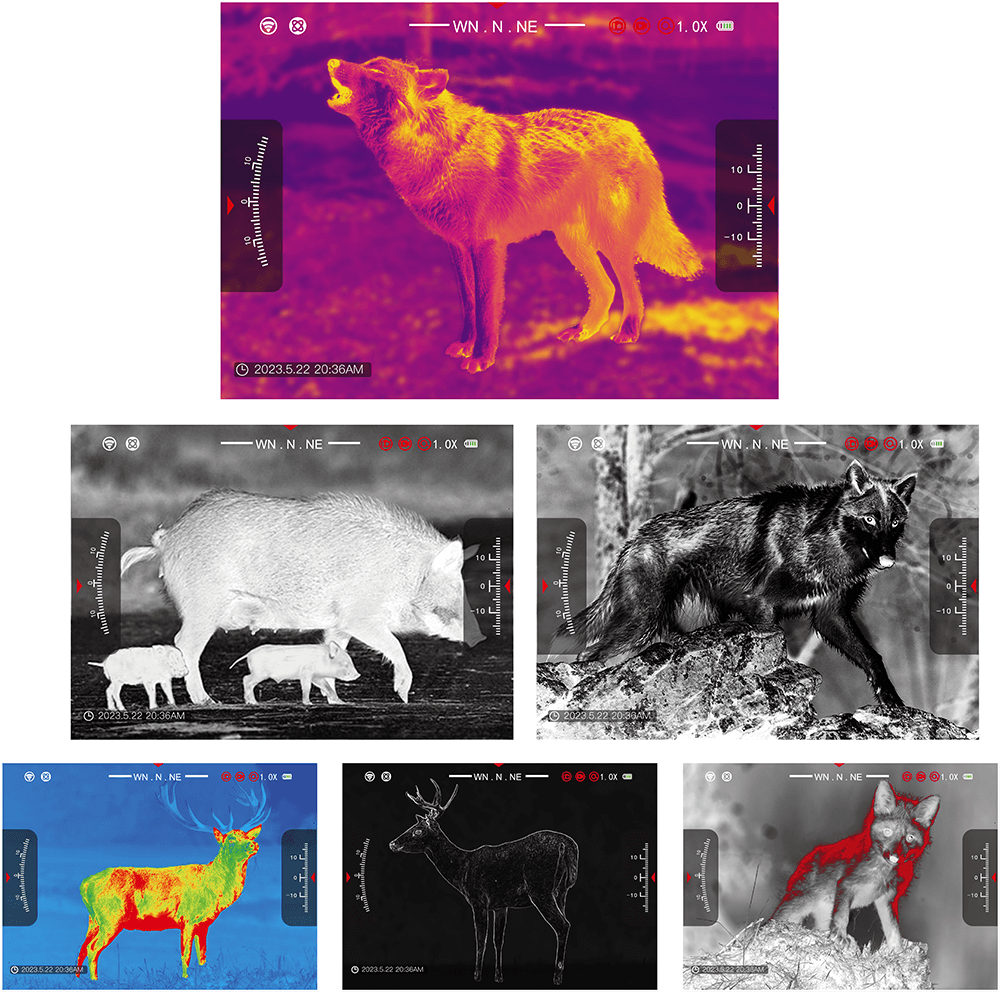

The night vision monocular thermal imager supports 9 color modes, including white hot/black hot/brown/iron red/rainbow, etc.

Night Mode
Clearly see every detail, whether it's outdoor exploration, night observation, or late-night work. Night vision equipment provides strong support, making nightlife more practical.

Image Enhancement
Super strong image algorithm, fast processing speed, can effectively reduce image noise, enhance contrast and adaptability, improve image quality, and double the effect of target recognition and judgment.

Picture-in-Picture Mode
Supports continuous 1~8x picture-in-picture electronic zoom, without losing field of view, real-time observation of the picture, improving target recognition accuracy.

One-button Gun Calibration
Laser identification AI algorithm correction, automatically moves the reticle to the calibrated aiming point, thereby improving the shooting hit rate.

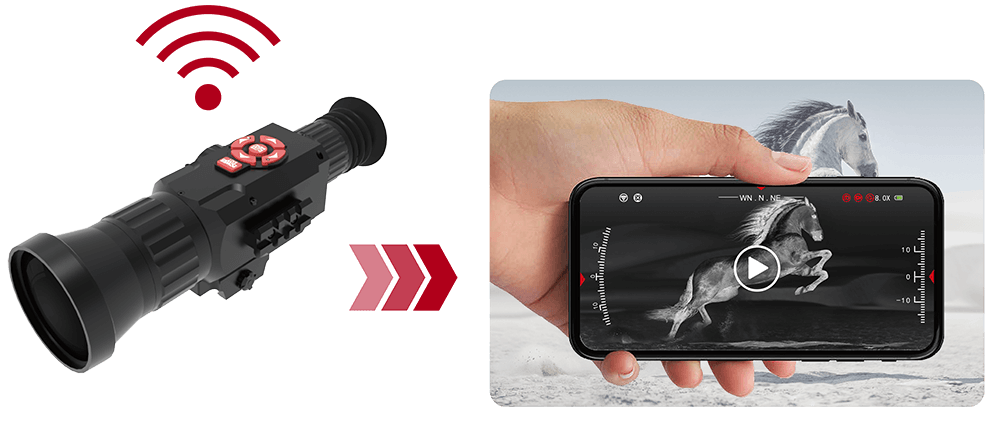

Wireless Transmission
WIFI/hotspot, supports mobile APP software on mobile phones, tablets, and laptops for viewing and live broadcasting.

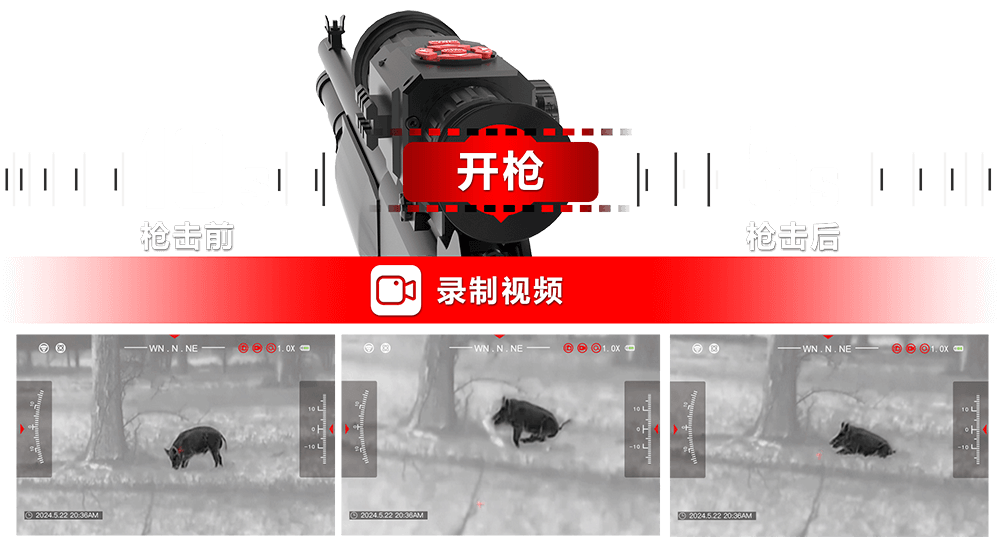

Impact Recording
High-precision real-time distance display, equipped with high-precision eye-safe laser ranging equipment. One-button ranging accuracy 1m.

Crosshair Reticle
The unique crosshair mode is essential for fast target acquisition and accuracy at any distance, and supports multiple color options.

Application Scenarios
Used for public security law enforcement, drug control and smuggling investigation, armed police anti-control, border patrol, coastal patrol, single-person night reconnaissance, etc.

Product Display and Accessories
Product appearance and accessories display, accessories mainly include (host device, waterproof water tank, data transmission line, battery charger, 26650A lithium battery, accessories)

Specifications

Monocular Multifunctional Thermal Imaging System
SSK-HTS75

Thermal Imaging Parameters

Detector Type

Uncooled vanadium oxide or polysilicon

Operating Band

8～14μm

Sensitivity

≤45mk@300K

Correction

Non-uniformity

Detector Specifications

384×288/640×512 optional (12μm)

Field of View

3.5°×2.6° (384 resolution) / 5.9°×4.7° (640 resolution)

Polarity

Black hot/White hot

Image Frame Rate

50Hz (384) / 50Hz (640)

Image Noise Reduction

Digital filtering

Lens Parameters

75mm @F=1.0

Focusing Method

Manual

Electronic Magnification

1～8x continuous magnification

Zoom Mode

Normal zoom/Picture-in-picture zoom

Hot Spot Tracking

Supported

Image Enhancement

Supported

False Color Mode

Supports white hot/black hot/brown/iron red/rainbow and other 9 color modes

Reticle and Color

5 types of reticles, 5 reticle modes

Gain

Auto/Manual

Detection Distance

2000 meters (typical climate conditions) / 5000 meters (typical climate conditions)

Recognition Distance

500 meters (typical climate conditions) / 800 meters (typical climate conditions)

Eyepiece Parameters

Display

0.5-inch OLED, 1024×768 resolution

Contrast

1000:1

Eye Relief

35mm

Eyepiece Magnification

12x

Image Parameters

Video Recording, Photo Taking, and Playback

Supports one-button photo and video recording, and on-board playback of videos and images.

Video Format

MP4

Image Storage

JPG

Video Output

HDMI@1024×768 CVBS@720*576

Image Resolution

1024×768@50HZ

Continuous Recording Time

More than 7 hours

Storage Capacity

Standard 64G (optional 256G)

Interface Description

External Power Supply

DC 5V, maximum current 1.5A

Data Access

TTL can be externally connected to anemometer/laser rangefinder/GPS/DBS

Wireless Transmission

WIFI/hotspot, supports mobile terminal APP software for viewing and live streaming on mobile phones, tablets, and laptops (Facebook, Linkedin, Twitter, Douyin, TikTok, etc.)

Data Sensor

Impact Recording

Impact automatic recording, video pre-recording saves video before and after impact, impact video duration and impact sensitivity are adjustable.

One-button Gun Calibration

AI intelligent hotspot recognition corrects the dividing line to the specified position

Azimuth Sensor

Static accuracy 0.05°, dynamic 0.1°

Acceleration Sensor

2G-60G internally adjustable

Roll Angle Sensor

Range ±90°, static accuracy 0.05°, dynamic 0.1°

Pitch Angle Sensor

Range ±90°, static accuracy 0.05°, dynamic 0.1°

Physical Parameters

Impact Resistance

800G

Waterproof Sealing

IP66 (airtight)

Operating Temperature

-40°C～+60°C

Storage Temperature

-45°C～+70°C

Operating Humidity

Humidity less than 90% (non-condensing)

Operating Voltage Range

DC2.6～5.5V

Typical Power Consumption

≤2.8W

Reverse Polarity Protection

Yes

Over/Under Voltage Protection

Yes

Battery Capacity

2550A rechargeable lithium battery 3.7V＠3500mAH

Working Time

Continuous working time >7 hours

Product Dimensions

265×105×83（mm）

Product Weight

≤1.2KG (including battery)

Accessories

Composite Cable

USB data/charging

CVBS video output

Battery

25500 lithium battery @3500MA

Charger

5V 2A US/EU standard

Manual

One

Packaging

ABS protective case
