Binocular multi-functional binocular fusion imaging system
TIR2000
Category:
Outdoor Series
Security series
Custom series
Specifications
|
Multifunctional Fusion Imaging System |
|
|
Thermal Imaging Parameters |
|
|
Detector Type |
Uncooled vanadium oxide |
|
Operating Band |
8～14μm |
|
Detector Specifications |
640×512（12μm） |
|
Image Frame Rate |
50Hz |
|
Lens Parameters |
54mm @ F=1.0 |
|
Focusing Method |
Manual |
|
Visible Light and Thermal Imaging Fusion Parameters |
|
|
Sensor Type |
1/1.8″ low-illumination CMOS sensor |
|
Visible Light Resolution |
1920×1080 |
|
Focal Length |
23mm |
|
Low Illumination |
Black/White: 0.001 lux @F=0.9 |
|
Zoom |
Supports 1-8x continuous zoom, with two zoom modes: normal zoom and picture-in-picture zoom. |
|
Hot Spot Tracking |
Supported |
|
Image Enhancement |
Supported |
|

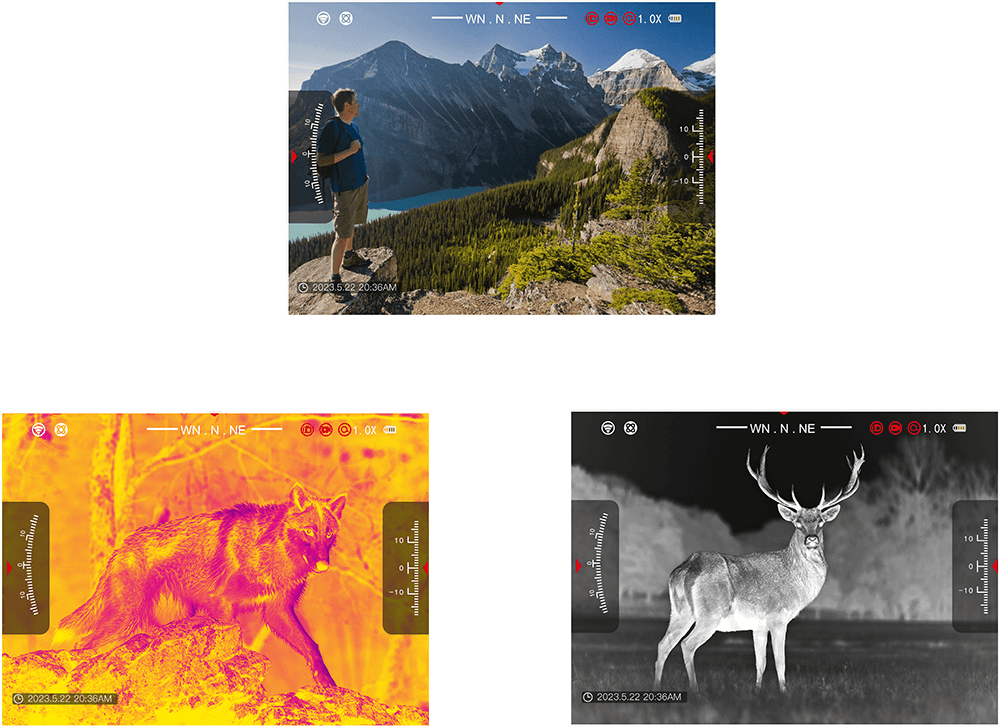

Image Mode |

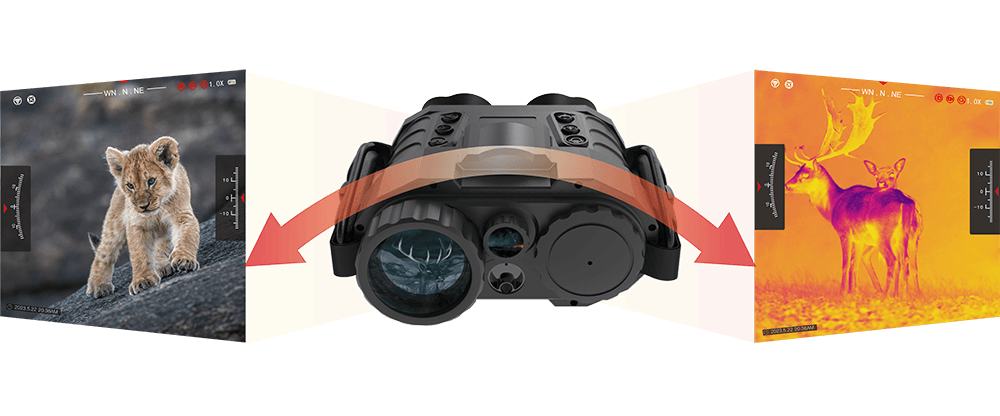

Visible light thermal imaging fusion mode/thermal imaging mode/low-light mode/color imaging mode, and picture-in-picture display is available. |
|
Fusion Imaging Mode |
Fusion white hot/fusion black hot/fusion lava/fusion molten metal/fusion red blue/fusion amber/fusion fluorescent green/fusion rainbow/fusion rainbow enhanced, etc. |
|
Reticle and Color |
5 types of reticles, 5 reticle modes. |
|
Gain |
Automatic/Manual |
|
Detection Distance |
3000 meters person (typical climate conditions)/6000 meters vehicle (typical climate conditions) |
|
Recognition Distance |
800 meters person (typical climate conditions)/2000 meters vehicle (typical climate conditions) |
|
Eyepiece Parameters |
|
|
Display Screen |
0.39-inch OLED, 1024×768 resolution |
|
Contrast Ratio |
1000:1 |
|
Eye Relief |
25mm |
|
Eyepiece Magnification |
15x |
|
Image Parameters |
|
|
Video Recording, Photo Taking, and Playback |
Supports one-button photo and video recording, and on-board playback of videos and images. |
|
Video Recording Format |
MP4 |
|
Image Storage |
JPG |
|
Image Output |
HDMI@1024×768 50hz/ CVBS@720*576 50hz |
|
Image Resolution |
1024×768 |
|
Continuous Recording Time |
More than 7 hours |
|
Storage Capacity |
Standard 64G (optional 256G) |
|
Interface Description |
|
|
Data Export |
TAPE-C 2.0 |
|
Data Saving |
64G CF card (built-in) |
|
Video Output |
Micro HDMI@50hz |
|
External Power Supply |
DC 5V, maximum current 1.5A |
|
Data Access |
TTL, can be externally connected to anemometer/laser rangefinder/GPS/DBS |
|

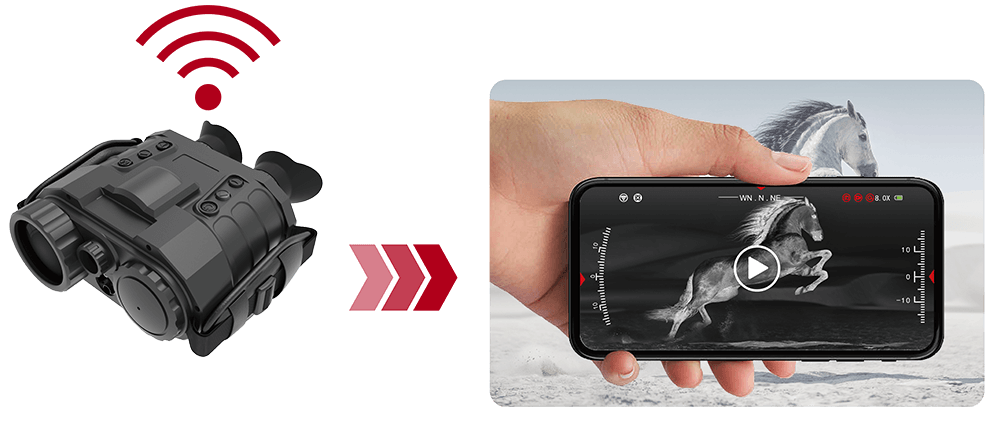

Wireless Transmission |
WIFI/hotspot, supports mobile terminal APP software for viewing and live streaming on mobile phones, tablets, and laptops (Facebook, Linkedin, Twitter, Douyin, TikTok, etc.) |
|
Data Sensor |
|
|

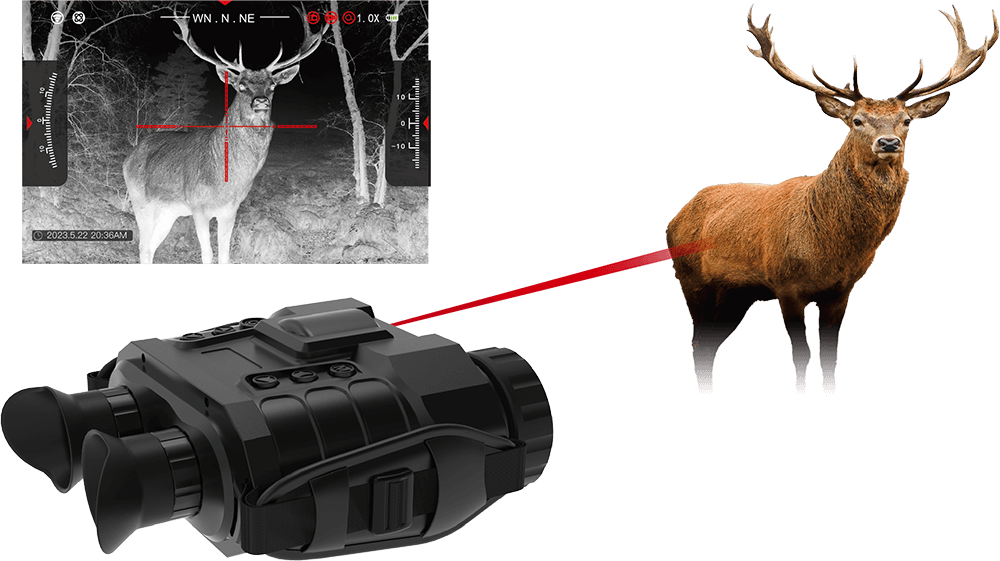

Laser Rangefinder |
|
|
Ranging Distance |
10～1500m ±1m |
|
Ranging Wavelength |
Pulse 905nm |
|
Ranging Frequency |
10～20hz adaptive |
|
Laser Divergence Angle |
3mrad |
|
GPS/Beidou Positioning Module |
|
|
GPS Signal Reception |
Supports simultaneous BDS and GPS reception |
|
Tracking Sensitivity |
-162dBm |
|
Accuracy |
≤2.5m |
|
Shock Sensor |
Supports automatic video recording of impacts, automatically pre-recording and saving videos before and after impacts. Impact video duration and impact sensitivity are adjustable. |
|
Satellite Positioning |
Beidou/GPS (optional) and can display latitude and longitude information within 10 seconds outdoors |
|
Target Positioning |
Supports feedback of the coordinates of the measured object |
|
Azimuth Sensor |
Static accuracy 0.05°, dynamic 0.1° |
|
Acceleration Sensor |
2G～60G internally adjustable |
|
Roll Angle Sensor |
Range ±90°, static accuracy 0.05°, dynamic 0.1° |
|
Pitch Angle Sensor |
Range ±90°, static accuracy 0.05°, dynamic 0.1° |
|
Physical Characteristics |
|
|
Impact Resistance |
600G |
|
Waterproof Sealing |
IP66 (airtight) |
|
Operating Temperature |
-40°C～+60°C |
|
Storage Temperature |
-45°C～+70°C |
|
Operating Humidity |
Humidity less than 90% (non-condensing) |
|
Operating Voltage Range |
DC 2.6～5.5V |
|
Typical Power Consumption |
≤3.5W |
|
Reverse Polarity Protection |
Yes |
|
Over/Under Voltage Protection |
Yes |
|
Battery Capacity |
18650A × 3 rechargeable lithium battery 3.7V @ 11500mAH |
|
Working Time |
Continuous working time > 10 hours |
|
Product Dimensions |
225 × 207 × 91.5 (mm) |
|
Product Weight |
≤1.0KG (including battery) |
|
Accessories |
|
|
Data/Charging Cable |
USB to TYPE-C |
|
Video Cable |
Micro HDMI |
|
Charger |
Can charge 3 26650 batteries |
|
Battery |
18560 × 3 rechargeable lithium battery 3.7V @ 3700mAH |
|
Charging Plug |
US/EU standard optional |
|
Manual |
One |
|
Packaging |
ABS protective case |
