Multifunctional high-definition laser night vision system

The SSK/NW-BH series multi-functional high-definition laser night vision system integrates an infrared laser (selectable operating band) illumination system, a dedicated infrared high-definition imaging system, a miniature high-definition disk storage system, and a liquid crystal display system. It is used for day and night long-distance all-weather 24-hour evidence collection and security applications in various industries. A non-red-exposed laser illumination system can be optionally used to ensure the concealment and security of the evidence collection process. This series of products belongs to the sixth generation of handheld laser night vision products. They feature high integration, ease of use, strong practicality, and high cost-effectiveness. They support automatic day/night focusing, providing color images during the day (or manually forced black and white images) with clear imaging; at night, they provide black and white images with up to 12 grayscale levels and excellent video quality.

Contact Us

Guojin@settall.com

+86 010-63256377

Category:

Outdoor Series

Security series

Custom series

Retail Price

Market Price

The SSK/NW-BH series multi-functional high-definition laser night vision system integrates an infrared laser (selectable operating band) illumination system, a dedicated infrared high-definition imaging system, a miniature high-definition disk storage system, and a liquid crystal display system. It is used for day and night long-distance all-weather 24-hour evidence collection and security applications in various industries. A non-red-exposed laser illumination system can be optionally used to ensure the concealment and security of the evidence collection process. This series of products belongs to the sixth generation of handheld laser night vision products. They feature high integration, ease of use, strong practicality, and high cost-effectiveness. They support automatic day/night focusing, providing color images during the day (or manually forced black and white images) with clear imaging; at night, they provide black and white images with up to 12 grayscale levels and excellent video quality.
Leave a Message Related Solutions File Download
Quantity
-
+

Inventory Remaining

加入购物车
立即购买

隐藏域元素占位

Multifunctional high-definition laser night vision system
+
  • Multifunctional high-definition laser night vision system
Beijing Soske Technology Development Co., Ltd

Multifunctional high-definition laser night vision system

The SSK/NW-BH series multi-functional high-definition laser night vision system integrates an infrared laser (selectable operating band) illumination system, a dedicated infrared high-definition imaging system, a miniature high-definition disk storage system, and a liquid crystal display system. It is used for day and night long-distance all-weather 24-hour evidence collection and security applications in various industries. A non-red-exposed laser illumination system can be optionally used to ensure the concealment and security of the evidence collection process. This series of products belongs to the sixth generation of handheld laser night vision products. They feature high integration, ease of use, strong practicality, and high cost-effectiveness. They support automatic day/night focusing, providing color images during the day (or manually forced black and white images) with clear imaging; at night, they provide black and white images with up to 12 grayscale levels and excellent video quality.

SSK-NW-BH

Guojin@settall.com

+86 010-63256377

Category:

Outdoor Series

Security series

Custom series

Product Consulting Related Products File Download

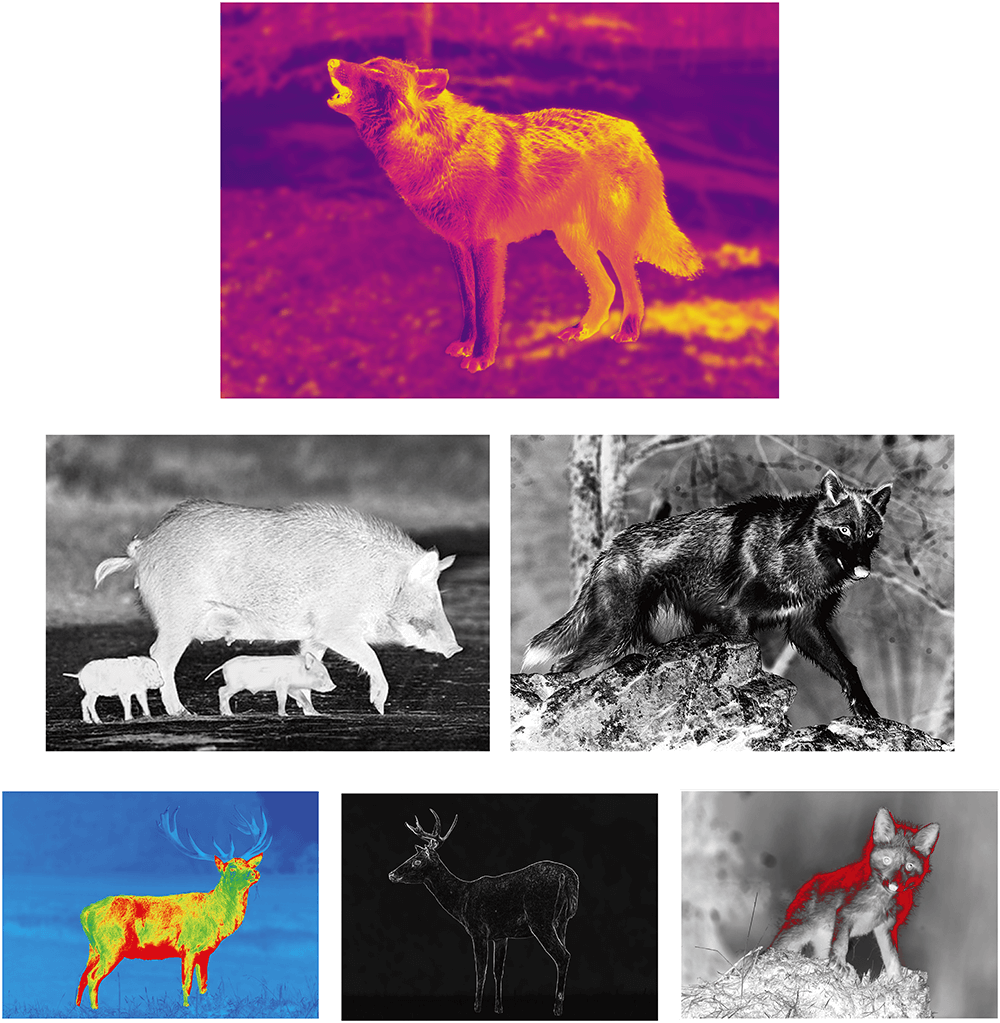

Display Mode
The night vision monocular thermal imager supports 9 color modes, including white hot/black hot/brown/iron red/rainbow, etc.

Night Mode
Clearly see every detail, whether it's outdoor adventure, night observation, or late-night work. Night vision equipment provides strong support, making nightlife more practical.

Laser Rangefinder
The night vision monocular thermal imager is equipped with a high-precision, eye-safe laser rangefinding device. One-button ranging accuracy ± 1m.

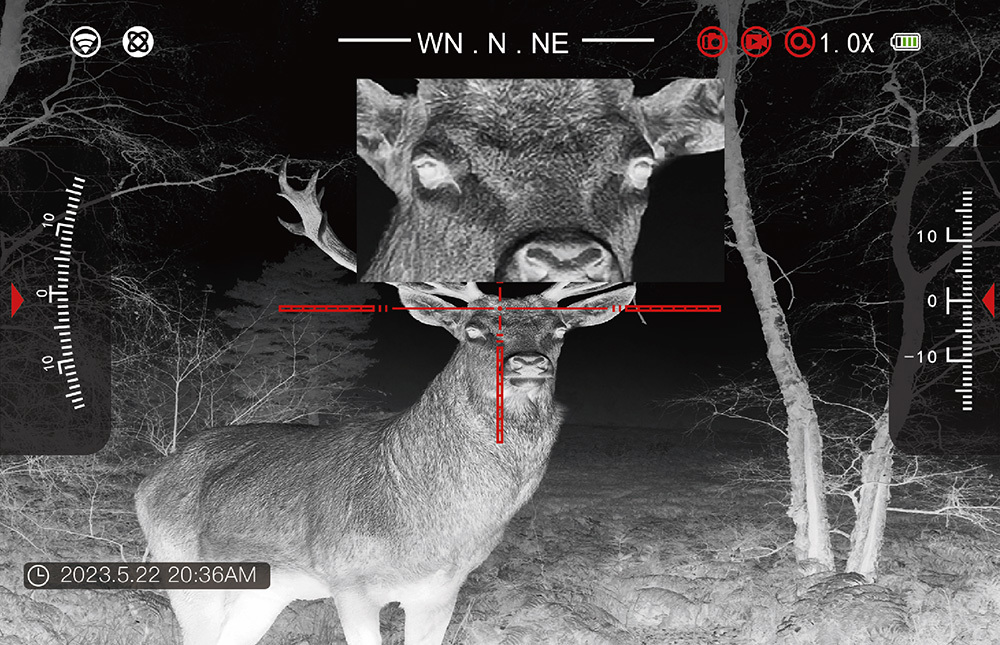

Picture-in-Picture Mode
Supports continuous 1~8x picture-in-picture electronic zoom, without losing field of view, real-time observation of the image, improving target recognition accuracy.

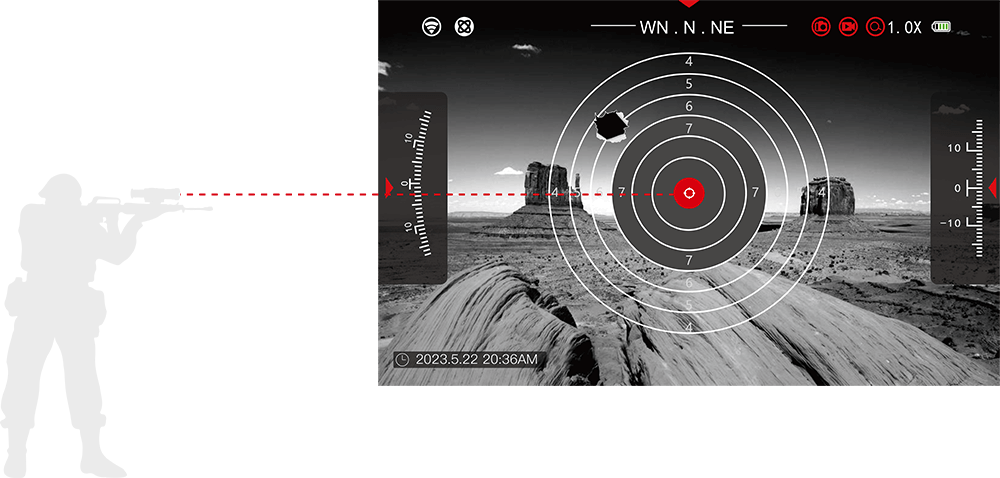

One-button Gun Calibration
Laser identification AI algorithm correction, automatically moves the reticle to the calibrated aiming point, thereby improving shooting accuracy.

Wireless Transmission
WIFI/hotspot, supports mobile APP software on mobile phones, tablets, and laptops for viewing and live streaming.

Impact Recording
High-precision real-time distance display, equipped with a high-precision eye-safe laser rangefinding device. One-button ranging accuracy 1m

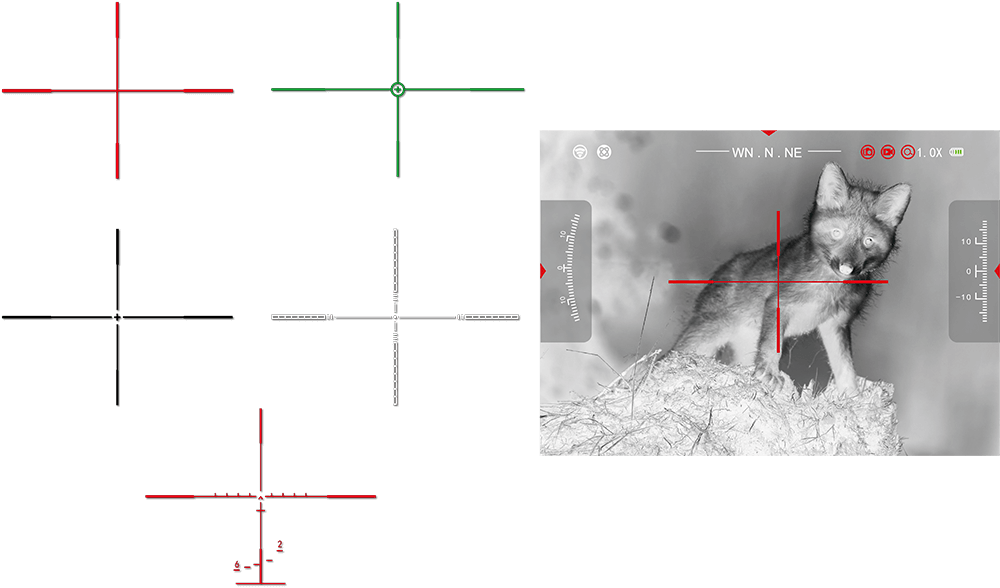

Crosshair Reticle
The unique crosshair mode is essential for fast target acquisition and accuracy at any distance, and supports multiple color options.

Application Scenarios
Used for public security law enforcement, drug control and smuggling investigation, armed police anti-control, border patrol, coastal patrol, single-person night reconnaissance, etc.

Product Display and Accessories
Product appearance and accessories display. Accessories mainly include (main unit, waterproof box, data transmission cable, battery charger, 26650A lithium battery, accessories)

Specifications

Multifunctional High-Definition Laser Night Vision System
SSK/NW-BH

Laser Parameters

Laser Output Power

5w

Electric Power

10w

Control Interface

TTL/RS485

Laser Wavelength

808nm/940nm (Optional)

Uniformity

Microlens Array

Temperature Control System

Natural Air Cooling

Illumination Angle

0.2～45°

Night Vision Distance

Over 500m

Visible Light Imaging System

Optical Focal Length

4.7～180mm, 30x optical zoom, automatic focus synchronous zoom

Aperture

F1.5～F4.0

Sensor Type

1/1.8" CMOS

Scanning System

Progressive Scan

Imaging Resolution

1920×1080

Horizontal Field of View

60.5～1.3° (Wide Angle-Telephoto)

Day/Night Conversion Mode

ICR Infrared Filter

Wide Spectrum

The system uses wide-spectrum coating, and the observation range is from 400～1200nm

Minimum Illumination

Color: 0.0005Lux; Black and white: 0.0001Lux

Signal-to-Noise Ratio

Greater than 50dB

Aperture Control

Automatic Aperture

Image Related

Supports 1080p@25fps

Laser Rangefinder

Ranging Distance

5～800M

Ranging Accuracy

±0.5M (within 400M); ±1M (600M-1000M)

Resolution

0.1m

Laser Wavelength

905nm

Laser Divergence Angle

3mrad

Laser Safety Class

Class 1 Semiconductor Laser

Functions

Focus Mode

Autofocus/Semi-autofocus/Manual Focus

Positioning

Supports GPS/Beidou

Altimeter

Supported

Electronic Compass

Supported

Azimuth

Supported

Attitude Detection

Supported

Character Overlay

Supported

Battery Level Display

Supported

Video Recording and Photo Taking

Supports high-definition recording, full HD photos

Playback

Supported

Turn off screen

Supported

Physical Characteristics

Screen Size

5.5 inches

Standby Time

≥8 hours (built-in lithium battery)

Waterproof Seal

IP66 (airtight)

Operating Temperature

-20℃～+40℃

Storage Temperature

-40℃～+60℃

Input Voltage

DC12.6V 3A dedicated charger

Device Power Consumption

≤20W

Storage

External TF card (supports up to 512G)

Product Dimensions

220mm×205mm×115mm

Product Weight

2.4kg

Online Inquiry

Note: Please leave your contact information, our professionals will contact you as soon as possible!

Solutions

Content update in progress,...

Accessories

Host Device

Host device

Waterproof box

Waterproof box

Data cable

Data cable

Battery charger

Battery charger

1000A lithium battery

1000A lithium battery

Other accessories

Other accessories
