Electrically focused thermal imaging module
NW-RV150mm
Category:
Outdoor Series
Security series
Thermal Imaging Module Series
Product Features
Low power consumption and low heat generation.
Compact size, light weight, easy for system integration.
Supports fire point alarm.
Embedded intelligent analysis algorithm, realizing mobile detection, area intrusion, crossing, tripwire alarm, mobile trajectory, target enhancement and other intelligent analysis functions on the device side.

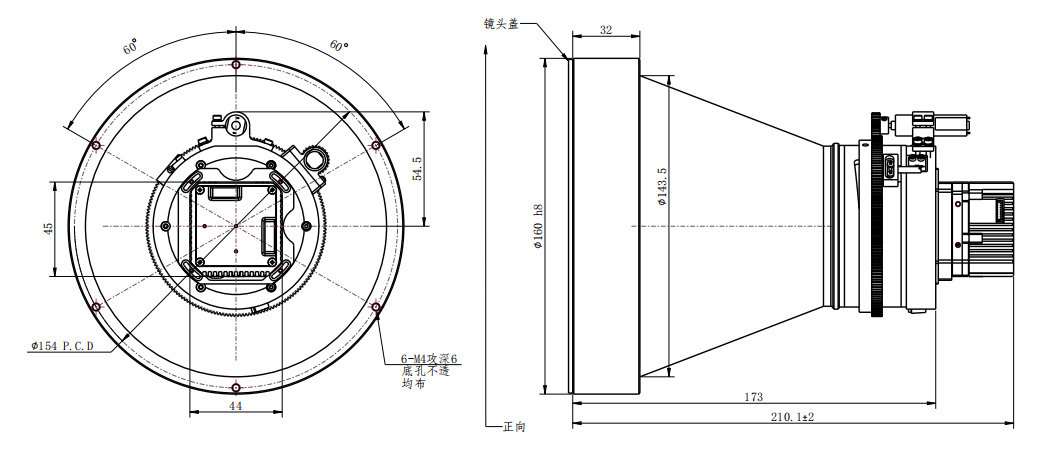

Drawings
Technical Parameters
| 150mm Electrically Focused Thermal Imaging Module |
|
| SSK/NW-RV150 Infrared Thermal Imaging Parameters |
|
| Detector Type |
Uncooled infrared thermal imager |
| Resolution |
384*288 / 640*512 |
| Pixel Size |
12μm |
| Sensitivity |
35mk@ 25℃ |
| Response Band |
8～14um |
| Supported Lens |
Electrically adjustable lens, supports auto focus |
| Focal Length |
150mm (electrically focused) |
| Sunburn Protection |
Supported, but avoid pointing at the sun or high-temperature targets as much as possible |
| Image Adjustment |
Automatic/manual adjustment of contrast and brightness |
| Uniformity Correction |
Automatic/manual shutter correction, background correction |
| Image Noise Reduction |
3D digital noise reduction |
| Image Enhancement |
IDE image detail enhancement |
| Palette |
9 palettes are available (including iron red, rainbow, black and white, etc.), and custom color scales are available |
| Intelligent Analysis Functions |
|
| High Temperature Alarm |
Global or custom area, supporting up to 10 high-temperature sources simultaneously, linking PTZ and coordinate output for high-temperature alarm, adjustable alarm threshold in multiple levels. Timing deployment and withdrawal of defense linkage PTZ preset position function, etc. |
| VCA |
Supports 4 types of VCA rules (motion detection, tripwire, intrusion, area entry, area exit), supporting up to 10 VCA rules |
| AI Intelligence |
Supports automatic detection of people and vehicles, supports fire point detection |
| Network Functions |
|
| Video Compression Format |
H.264、H265 |
| Image Output Resolution |
25 fps (384×288、640×512) |
| Network Protocols |
IPv4/IPv6,HTTP,HTTPS,FTP,DNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP |
| Platform Integration |
Supports open API for software integration, supports standard protocols (ONVIF, CGI), supports SDK and third-party management platform access |
| Network Storage Function |
Offline local storage, supports offline resume transmission to ensure that recordings are not lost |
| General Functions |
Heartbeat function, password protection, multi-user access control (3 levels of user permissions) |
| Network Security |
Authorized username and password, MAC address binding; HTTPS encryption; IP address filtering. |
| Video Browsing and Configuration |
Browser, supports up to 10 video previews simultaneously. |
| PC client, supports up to 64 video previews simultaneously |
|
| User Access |
Up to 9 users, divided into 3 levels: administrator, operator and ordinary user |
| External Interfaces |
|
| Input Power |
DC12V |
| Network Interface |
10M/100MBase-TX adaptive Ethernet |
| Serial Communication |
1 UART (onboard reserved) and 1 RS485 (tail wire output) |
| Alarm I/O |
Supports 1 alarm input and 1 alarm output |
| Local Storage |
Built-in emmc, standard 16GB, customizable capacity |
| General Specifications |
|
| Operating Temperature and Humidity |
-40℃～+60℃, less than 90％RH |
| Storage Temperature |
–45°C ~ +75°C |
| Power Consumption |
Less than 1.5w |
| Protection Level |
None |
