Resolution thermal imaging module
NW-USB640
Category:
Outdoor Series
Security series
Thermal Imaging Module Series
Product Features
Low power consumption and low heat generation.
Compact size, lightweight, easy for system integration.
Supports fire point alarm.
The thermal imaging core series adopts the industry-leading uncooled vanadium oxide focal plane detector, supports multiple focal length lenses, clear images, complete functions, flexible customization, and convenient secondary development.

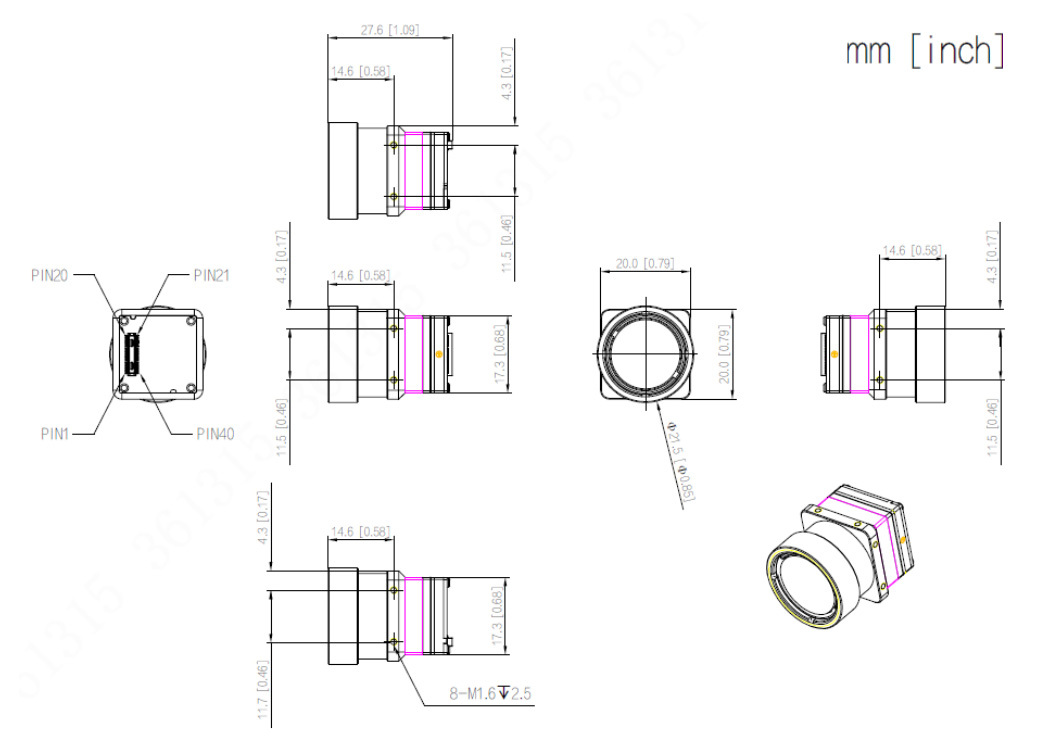

Drawings
Technical Parameters
| USB Interface 640 Resolution Thermal Imaging Module |
|
| SSK/NW-USB640 Infrared Thermal Imaging Parameters |
|
| Detector Type |
Uncooled Infrared Thermal Imager |
| Resolution |
640*512 |
| Pixel Size |
12μm |
| Sensitivity |
≤40mK@f/1.0 |
| Response Band |
8～14um |
| Supported Lens |
9mm fixed focus (optional) |
| Thermal Imaging Field of View |
Horizontal: 51.4° Vertical: 41.1° |
| SiTF |
≥10mV/K |
| Thermal Imaging Image Flip |
Supported |
| Brightness Sharpness |
Supported |
| Uniformity Correction |
Automatic/Manual Shutter Correction, Background Correction |
| Image Noise Reduction |
2D Noise Reduction/3D Noise Reduction |
| Thermal Imaging Gain Control |
Automatic/Manual |
| Color Palette |
Supports white heat, black heat, fusion, rainbow, golden autumn, noon, iron red, amber, jade, sunset, ice fire, oil painting, pomegranate, emerald, spring, summer, autumn, winter, a total of 18 kinds of pseudo-color adjustable |
| Temperature Measurement Range |
Low temperature mode: -20°C~+150°C, high temperature mode: 0°C~+550°C error Max (±2℃, ±2%) |
| Image Algorithm |
|
| FPNC |
Supported |
| SFFC |
Supported |
| EE |
Supported |
| Interface Parameters |
|
| Analog Output Interface |
CVBS |
| Digital Output |
BT656 |
| USB Interface |
Supported (optional and customized) |
| Serial Communication |
UART |
| Power Parameters |
|
| Power Supply Method |
DC 3.8V~5V |
| Power Consumption |
0.55W |
| Environmental Parameters |
|
| Operating Temperature and Humidity |
-40℃～+70℃, less than 90％RH |
| Storage Temperature |
-40℃～＋80℃ |
| Vibration |
General Standard |
| Protection Level |
None |
| Physical Characteristics |
|
| Product Dimensions |
17.3 mm ×17.3 mm × 10.5 mm (excluding lens and expansion components) |
| Net Weight |
5g (excluding lens and expansion components) |
