Resolution thermal imaging module
NW-USB1280
Category:
Outdoor Series
Security series
Thermal Imaging Module Series
Product Features
Low power consumption and low heat generation.
Compact size, lightweight, easy for system integration.
Supports fire point alarm.
The thermal imaging core series adopts the industry-leading uncooled vanadium oxide focal plane detector, supports multiple focal length lenses, clear images, complete functions, flexible customization, and convenient secondary development.

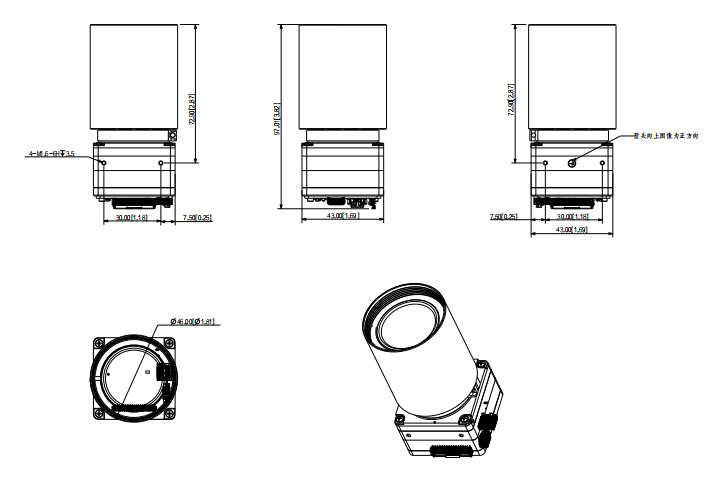

Drawings
Technical Parameters
| USB Interface 1280 Resolution Thermal Imaging Module |
|
| Infrared Thermal Imaging Parameters |
|
| Detector Type |
Uncooled vanadium oxide focal plane detector |
| Resolution |
1280 × 1024 |
| Pixel Size |
12μm |
| Sensitivity |
≤40mK@f/1.0 |
| Response Band |
8～14um |
| Supported Lens |
25mm F1.0 fixed focus (various specifications are optional) |
| Thermal Imaging Field of View |
|
| Thermal Imaging Image Flip |
Supported |
| Brightness Sharpness |
Supported |
| Uniformity Correction |
Automatic/Manual Shutter Correction, Background Correction |
| Image Noise Reduction |
2D noise reduction/3D noise reduction |
| Thermal Imaging Gain Control |
Automatic/Manual |
| Palette |
Supports white heat, black heat, fusion, rainbow, golden autumn, noon, iron red, amber, jade, sunset, ice fire, oil painting, pomegranate, emerald, spring, summer, autumn, winter, a total of 18 kinds of pseudo-color adjustable |
| Video Frame Rate |
25fps |
| Image Algorithm |
|
| FPNC |
Supported |
| SFFC |
Supported |
| EE |
Supported |
| Interface Parameters |
|
| Analog Output Interface |
CVBS |
| Digital Output |
BT1120 |
| USB Interface |
Supported (optional and customized) |
| Serial Communication |
UART |
| Power Parameters |
|
| Power Supply Method |
5V |
| Power Consumption |
1.25W |
| Environmental Parameters |
|
| Operating Temperature and Humidity |
-30℃~60℃, less than 90％RH |
| Storage Temperature |
-40℃~70℃ |
| Physical Characteristics |
|
| Product Dimensions |
43mm*43mm*35mm (excluding lens and expansion components) |
| Net Weight |
86g (excluding lens and expansion components) |
