Resolution Network Thermal Imaging Module
NW-RJ1280
Category:
Outdoor Series
Security series
Thermal Imaging Module Series
Product Features
Compact size, lightweight, easy for system integration, using industry-leading uncooled vanadium oxide focal plane detector, resolution 1280x1024, high sensitivity, good image quality.
Supports FPNC, SFFC and other image optimization algorithms, supports brightness, sharpness, pseudo-color, gain and other function settings, clearer image.
Supports thermal image export for customer secondary development.
Supports configuration saving function to record customer usage habits.
Thermal imaging core series adopts industry-leading uncooled vanadium oxide focal plane detector, supports various focal length lenses, clear image, complete functions, flexible customization, convenient for secondary development.

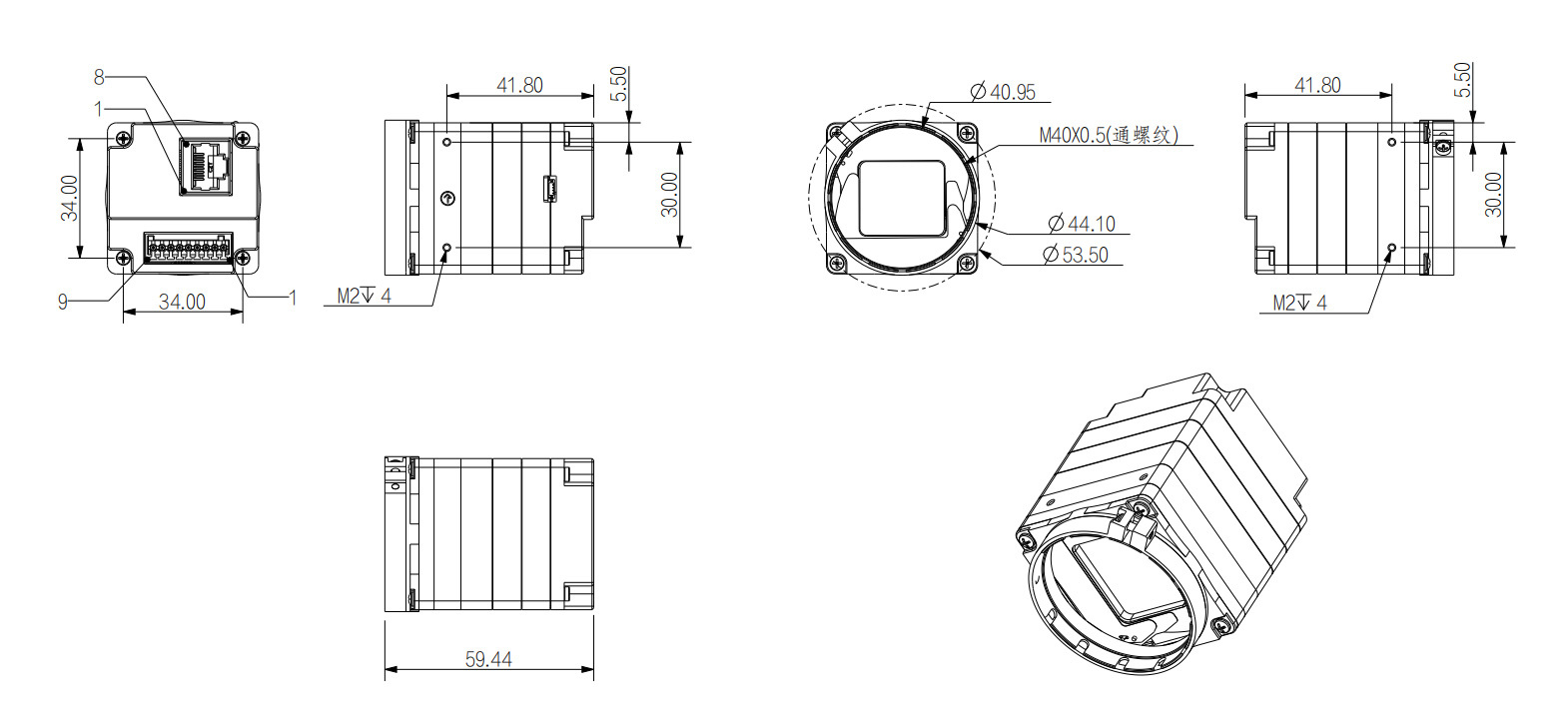

Drawings
Technical Parameters
| 1280 Resolution Network Interface Thermal Imaging Module |
|
| SSK/NW-RJ451280 Infrared Thermal Imaging Parameters |
|
| Detector Type |
Uncooled vanadium oxide focal plane detector |
| Resolution |
1280×1024 |
| Pixel Size |
12μm |
| Sensitivity |
≤35mK@f/1.0 |
| Response Band |
8～14um |
| Supported Lens |
Manual, motorized focus lens (optional) |
| Thermal Imaging Image Flip |
Supported |
| Brightness Sharpness |
Supported |
| Uniformity Correction |
Automatic/manual diaphragm correction, background correction |
| Image Noise Reduction |
2D noise reduction/3D noise reduction |
| Thermal Imaging Gain Control |
Automatic/Manual |
| Palette |
Supports white heat, black heat, fusion, rainbow, golden autumn, noon, iron red, amber, jade, sunset, ice and fire, oil painting, pomegranate, emerald, spring, summer, autumn, winter, a total of 18 kinds of pseudo-color adjustable |
| Video Frame Rate |
25fps |
| Image Encoding Format |
JPEG |
| Overall Function |
|
| Network Protocol |
HTTP TCP ARP RTSP RTP UDP RTCP SMTP FTP DHCP DNS DDNS IPV4 NTP |
| Access Standard |
ONVIF (only supports some basic functions); SDK |
| Browser |
Supports IE: IE8 and above versions, including those using the IE kernel, 360 browser, Sogou browser, etc. Supports Google: version 42 and below Supports Firefox: version 42 and below |
| Maximum Number of Preview Users |
6 |
| Security Mode |
Authorized username and password; MAC address binding; HTTPS encryption; network access control |
| User Management |
Supports up to 6 users, multi-level user permission management, divided into 2 levels: management group, user group |
| Fault Detection |
Network disconnection detection; IP conflict detection |
| Intelligent |
|
| Fire Point Detection |
Supported |
| Hot and Cold Spot Tracking |
Supported |
| Perimeter Protection |
Supports tripwire intrusion/area intrusion and other types of behavior detection |
| Target Distinction |
Supports human, motor vehicle classification |
| Target Filtering |
Thermal imaging supports human and vehicle classification filtering alarm |
| Interface Parameters |
|
| Network Interface |
1, 10M/100M Ethernet port (RJ-45) |
| Alarm Input |
1 channel |
| Alarm Output |
1 channel |
| Alarm Linkage |
Trigger switch output/email/screenshot |
| RS485 |
1 channel |
| RS232 |
1 channel |
| Power Parameters |
|
| Power Supply Method |
5-12V |
| Power Consumption |
1.25W |
| Environmental Parameters |
|
| Operating Temperature and Humidity |
-30℃~60℃, less than 90％RH |
| Storage Temperature |
-40℃~70℃ |
| Physical Characteristics |
|
| Product Dimensions |
43 mm×43 mm×35 mm (excluding lens and expansion components) |
| Net Weight |
80g (excluding lens and expansion components) |
