Handheld portable green laser bird deterrent system
SSK-BirdRepe-EPlus
Category:
Outdoor Series
Security series
Bird deterrent system
Product Introduction
With the continuous development of the air transport industry, airports have become one of the important hubs for people's travel. However, with the prosperity of airports, flight safety issues have increasingly attracted people's attention. One of them is the safety hazard of birds to aircraft. During flight, if a large number of birds appear in the area close to the airport, it is easy to cause birds to enter the engine, resulting in serious accidents. To solve this problem, some airports use high-tech means to repel birds. One of them is the use of a bird-repelling system composed of high-power 532nm green laser, infrared thermal imaging, and laser ranging. This system first uses a 532nm green laser, which has a strong photosensitivity to birds, making birds feel uncomfortable quickly and accelerating their departure from the dangerous area. This system is used in conjunction with infrared thermal imaging to facilitate the rapid capture and tracking of activities in the area, accurately identifying birds with unstable flight dynamics. Finally, the system also uses laser ranging technology to quickly calculate and measure the distance of birds relative to the light source, so as to more accurately grasp the birds' aerial activity range and flight posture. This bird-repelling system can not only strengthen the supervision of bird flight activities and ensure airport flight safety, but also reduce the potential impact on the environment and contribute to environmental protection. Therefore, this system has high practical and market value.
Product Features
Product Characteristics
Compact size, easy to carry;
Built-in multiple sensor groups, including WIFI, azimuth, pitch, roll, etc., supporting multi-angle locking;
Equipped with both infrared thermal imaging and green laser functions, enabling use in different environments;
Infrared thermal imaging and green laser components can be used separately or in combination;
Short power-on time, long standby time, stable and reliable performance;
Strong shock and vibration resistance, ultra-high protection level, suitable for various harsh environments;
Can take photos and videos, large storage space, convenient for information storage and evidence collection;
High-definition imaging, long detection distance and wide range, with infrared anti-reflection film and laser output;
The lens adopts aspherical technology, with better optical performance, and the imaging is clearer with the central calibration method;

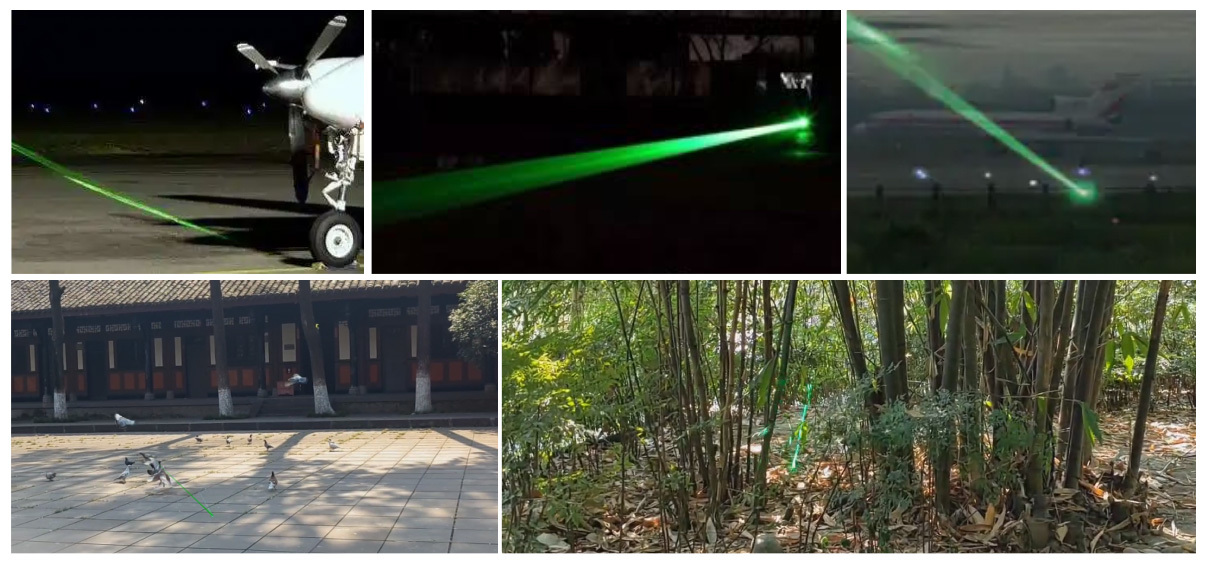

Application Scenarios
In addition to airports, the green laser bird-repelling system can also be used in the following places:
Agriculture: In agricultural production, some birds will damage crops, fruits, etc. Using green laser bird-repelling can effectively prevent this phenomenon.
Water conservancy projects: In water conservancy projects, some birds will inhabit and breed in reservoirs, rivers, lakes, etc., which often affects the normal operation of water conservancy projects. Using green laser bird-repelling can avoid this situation.
Public facilities: Birds will build nests in buildings, parks, etc., causing environmental hygiene problems and also causing some safety hazards, such as slipping due to bird droppings. The green laser bird-repelling system can solve these problems in a timely manner.
Food enterprises: In food production enterprises, some birds will fly in the factory and may contaminate the production site, seriously affecting food quality and hygiene. The green laser bird-repelling system can help enterprises avoid this phenomenon. In short, the green laser bird-repelling system can be applied to many places to remove or reduce the adverse effects of birds on people's production, work, and life.
Parameter Specifications
| Portable Green Laser Bird Repelling System |
|
| Thermal Imaging Parameters |
|
| Detector Type |
Uncooled vanadium oxide or polysilicon |
| Operating Band |
8～14μm |
| Sensitivity |
≤45mk@300K |
| Correction |
Non-uniformity |
| Detector Specifications |
384×288 / 640×512（12μm） |
| Field of View |
4.8°×3.6°（384 resolution）8.0°×6.5°（640 resolution） |
| Polarity |
Supports 9 color modes including white hot/black hot/brown/iron red/rainbow |
| Image Frame Rate |
384/640 (50Hz) |
| Lens Parameters |
54mm @F=1.0 |
| Electronic Zoom |
1～8x continuous zoom |
| Zoom Mode |
Normal zoom/picture-in-picture zoom |
| Hot Spot Tracking |
Supported |
| Crosshairs and Color |
5 types of crosshairs, 5 crosshair modes |
| Detection Distance |
2000 meters (typical climate conditions) / 5000 meters (typical climate conditions) |
| Recognition Distance |
500 meters (typical climate conditions) / 800 meters (typical climate conditions) |
| Bird Repelling Distance |
For birds (20x20cm) ≥2000 meters (under clear night conditions) |
| Laser Repelling System |
|
| Laser Safety Class |
CLASS 2M |
| Wavelength |
Output wavelength is 532nm±5nm |
| Laser life |
8000-10000 hours |
| Laser homogenization |
Microlens array |
| Irradiation angle |
3.5°/5° optional |
| Laser divergence angle |
Laser divergence angle does not exceed 5mrad; |
| Spot diameter |
The spot diameter at the laser outlet is no more than 1cm |
| Maximum light power output |
No less than 2000mW |
| Output power mode |
700mW, 900mW, 1100mW, 1300mW, 1500mW, 2000mW, strobe mode |
| Angle lock range |
Lockable at any angle between -45° and 90° |
| Laser ranging |
|
| Ranging distance |
Up to 1500 meters (error ±1m) |
| Ranging wavelength |
Pulse 905nm |
| Ranging frequency |
1-10hz adaptive |
| Image parameters |
|
| Video recording, photo taking, and playback |
Supports one-button photo and video recording, and on-device playback of videos and images |
| Image storage |
JPG |
| Image output |
CVBS@720×576 |
| Storage capacity |
4-256G |
| Interface description |
|
| Data export |
TAPE-C 2.0 |
| Video output |
Micro HDMI |
| Wireless transmission |
WIFI/hotspot, supports viewing and live streaming via mobile terminal APP software on mobile phones, tablets, and laptops (Facebook, Linkedin, Twitter, Douyin, TikTok, etc.) |
| Data sensor |
|
| Azimuth sensor |
Static accuracy 0.05°, dynamic 0.1° |
| Accelerometer |
2G-60G internally adjustable |
| Roll angle sensor |
Range ±90°, static accuracy 0.05°, dynamic 0.1° |
| Pitch angle sensor |
Range ±90°, static accuracy 0.05°, dynamic 0.1° |
| Physical parameters |
|
| Waterproof sealing |
IP66 (airtight) |
| Operating temperature |
-40°℃～+60℃ |
| Storage temperature |
-45℃～+70℃ |
| Operating humidity |
Humidity less than 90% (non-condensing) |
| Working time |
Continuous working time >7 hours |
| Product dimensions |
255×105×83（mm）？？？？ |
| Product weight |
≤2.1KG (including battery) |
| Accessories |
|
| Composite cable |
USB data/charging |
| Charger |
Dedicated multi-section charger |
| Charging plug |
US/EU standard |
| Tripod |
15kg load capacity |
| Manual |
One |
| Packaging |
ABS dedicated protective case |
