Multi-purpose phase-scan radar
SETTALL-RST8000
Category:
Outdoor Series
Security series
Radar series
Overview
The RST8000 radar is a multi-purpose, fully coherent, one-dimensional active electronically scanned array (AESA), monopulse two-coordinate radar suitable for various complex terrains and sea conditions. It can detect walking personnel, moving vehicles, ships, and other targets. After long-term practical application and optimization, the radar performance is reliable and stable, meeting the requirements for use in harsh environments such as high cold, high humidity, and salt spray.
Technical Advantages
Using AESA technology, it achieves azimuth electronic scanning. Compared with mechanically scanned radars, this radar has technical advantages such as high scan rate, fast beam-steering rate, and high measurement accuracy for targets.
Using advanced radar signal processing technology, the radar has a low false alarm rate, a clean monitoring screen, and can accurately detect and lock onto targets.
The elevation beam coverage angle is large, and it can simultaneously cover the ground, sea surface, valleys, slopes, etc., and its power is sufficient for detecting pedestrians, vehicles, ships, and animals.
It has flexible networking capabilities, allowing flexible networking according to actual needs, enabling a single control terminal to control multiple radar hosts simultaneously.
All functional components adopt a modular design with clear and simple interfaces, making maintenance and upkeep convenient.
The structural layout is exquisite, and the size is light, compact, and easy to transport, carry, and quickly set up.
It adopts a human-machine integrated design, making the radar operation simple and practical.
All active components have been optimized for power consumption, resulting in low overall radar power consumption; adaptable to various power supplies.
Using fanless thermal equilibrium technology, verified through whole-machine simulation optimization and physical experiments,
Suitable for extreme environments such as high temperature and low cold.
It adopts a fully sealed design, meeting IP66 requirements, with dustproof, waterproof, and salt-spray-proof functions, high reliability, and suitability for environments such as Gobi Desert, deserts, and oceans.
This radar can be widely used in border/coastal surveillance, key area protection, battlefield reconnaissance, and other fields.
Radar Working Diagram

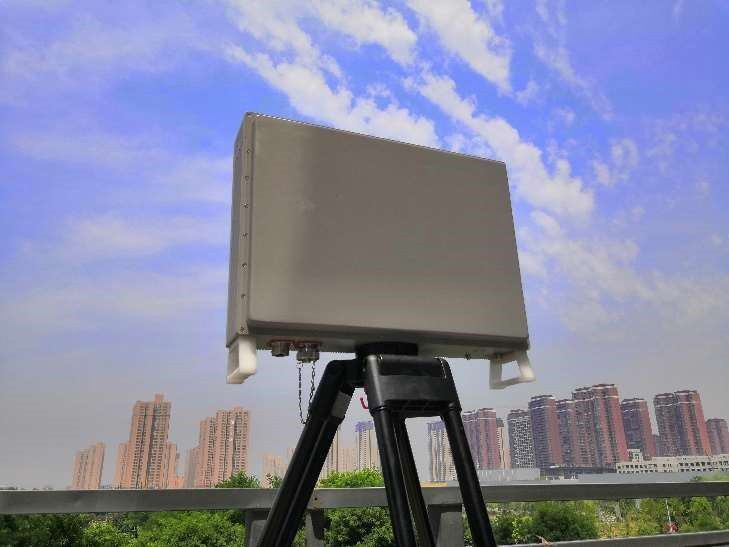

Radar Physical Diagram This radar can combine multiple arrays to achieve the required azimuth coverage: 90°, 180°, 270°, 360°.

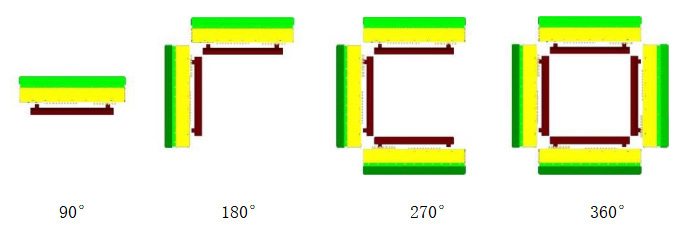

Radar Multi-Array Combination Diagram
Composition
The radar consists of a control terminal and a radar host, as shown in Figure 3.
Figure 3 Radar System Composition Diagram
The radar host can connect to the upper-level system via a network for networking or remote control; it can also be configured with terminal display for independent operation as a self-contained system.
The terminal display is optional equipment and can be implemented using an industrial control computer, a ruggedized computer, or a handheld terminal device, depending on user needs.
The radar host and terminal display are connected via a network cable (gigabit, compatible with 100 megabit). The radar power supply is mainly AC power, DC 18V~32V power supply, and also supports solar power and wind power.
Functions
The radar is mainly used for border/key area surveillance, monitoring personnel, vehicles, ships, and other targets in the monitored area. The main functions are as follows:
It can perform search and tracking functions for walking personnel, moving vehicles, ships, and other targets.
It has online detection, fault diagnosis, fault location, and temperature monitoring functions.
It has self-positioning and orientation functions.
It has automatic recording and playback functions for operating status.
It can provide guidance information to the upper-level system and has collaborative working capabilities.
It has networking capabilities and can achieve collaborative work of multiple radars.
Main Technical Indicators
| Active Electronically Scanned Array Pulsed Radar |
|
| Operating System |
Azimuth One-Dimensional Active Electronically Scanned Array Monopulse |
| Operating Frequency |
X-band, 200MHz bandwidth |
| Operating Frequency Points |
11 |
| Operating Modes |
Search, Track, Fixed-Point Monitoring, Self-Test |
| Azimuth Scan Range |
Azimuth ±45° electronic scan, and the scan range can be arbitrarily set within ±45° |
| Elevation Coverage Range |
7° |
| Scanning Method |
Electronic Scan + Mechanical Scan |
| Electronic Scan Range |
±45°, and the scan range can be arbitrarily set within ±45° |
| Mechanical Scan Range |
360° continuous azimuth scan |
| Tracking Mode |
TWS |
| TWS Tracking Capability |
≥200 tracks (parameter display tracks ≥40 tracks) |
| Effective Range |
|
| Personnel |
≥8km (V≥0.5m/s, RCS=0.5㎡, Pd=85%) |
| Vehicles |
≥18km (RCS=10㎡, Pd=85%) |
| Sea Patrol Boats |
≥17km (RCS=2㎡, Pd=85%) |
| Large Ships |
≥40km (RCS=100㎡，Pd=85%) |
| Minimum effective range |
≤150m |
| Target speed range |
0.5m/s～50m/s (1.8km/h～180km/h) |
| Distance display range |
0km～40km |
| Distance resolution |
≤10m |
| Accuracy error |
Distance ≤5m，Azimuth ≤ 0.4°，Speed ≤0.1m/s |
| Power consumption |
≤150W |
| Power supply |
Mains power, power station or battery power |
| Weight |
No more than 13kg |
| Structural dimensions |
|
| Radar main unit |
475mm×350mm×110mm |
| Reliability and maintainability |
MTBF ≥ 5000h，MTTR ≤ 0.5h |
| External interface |
RJ-45 communication protocol TCP/IP |
| Environmental adaptability |
|
| Storage temperature |
-45℃ ~ +65℃ |
| Operating temperature |
-40℃ ~ +55℃ |
| Relative humidity |
95±3% (30℃, no condensation) |
| Protection level |
IP66 (dust-tight, water-jet proof) |
