Monocular multi-functional thermal imaging rangefinder sight

Using a 12um vanadium oxide detector, it can provide high-sensitivity and high-definition thermal imaging, capturing the temperature distribution and profile of the target. Equipped with a high-resolution (1024×768) OLED screen, it can display vivid colors and contrast, improving observation comfort and accuracy. Multiple interfaces allow for easy connection to computers, televisions, or other devices to transmit or store image data. Powered by two 16340 batteries, it features ultra-low power consumption. Multi-purpose, it can be used as a night vision device, suitable for military, hunting, and outdoor exploration, enhancing nighttime safety and efficiency.

Guojin@settall.com

+86 010-63256377

Category:

Outdoor Series

Security series

Thermal Imaging Sight Series

Retail Price

¥ 9999

Market Price

¥ 9999

Model
- SYNC25
- SYNC25X

Leave a Message Related Solutions File Download

Quantity

Inventory Remaining

198

加入购物车

立即购买

隐藏域元素占位

Monocular multi-functional thermal imaging rangefinder sight

Beijing Soske Technology Development Co., Ltd

Monocular multi-functional thermal imaging rangefinder sight

Sync25、Sync25X

Guojin@settall.com

+86 010-63256377

Category:

Outdoor Series

Security series

Thermal Imaging Sight Series

Product Consulting Related Products File Download

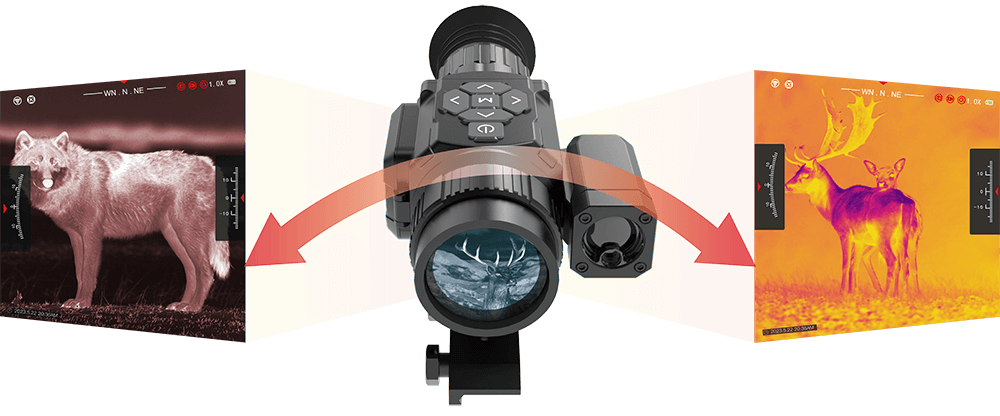

Display Mode

The night vision monocular thermal imager supports 9 color modes, including white hot/black hot/brown/iron red/rainbow, etc.

Night Mode

Clearly see every detail, whether it's outdoor adventure, night observation, or late-night work. Night vision equipment provides strong support, making nightlife more practical.

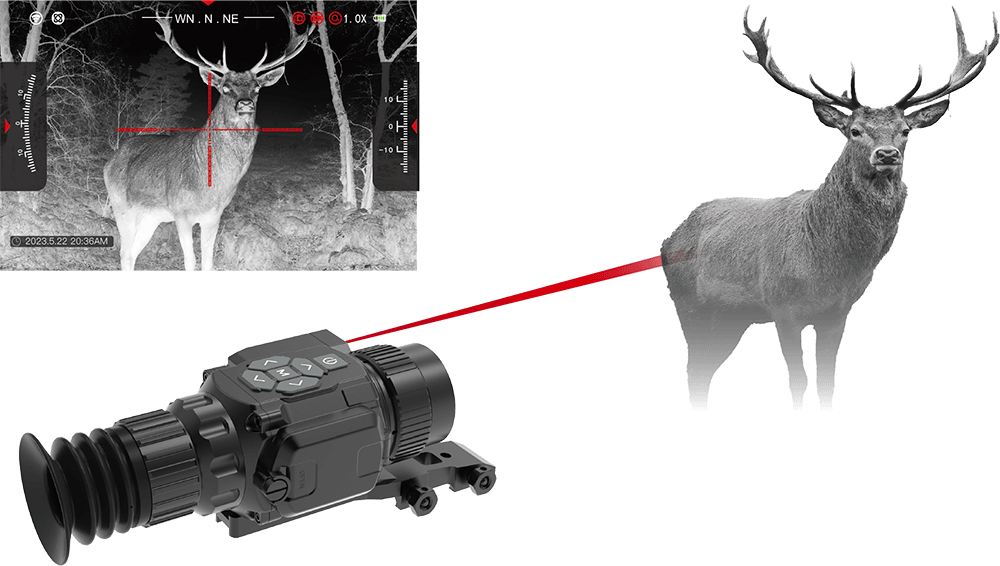

Laser Rangefinder

The night vision monocular thermal imager is equipped with a high-precision, eye-safe laser rangefinding device. One-button ranging accuracy ± 1m.

Picture-in-Picture Mode

Supports continuous 1~8x picture-in-picture electronic zoom, without losing field of view, real-time observation of the image, improving target recognition accuracy.

One-button Gun Calibration

Laser identification AI algorithm correction, automatically moves the reticle to the calibrated aiming point, thereby improving the shooting hit rate.

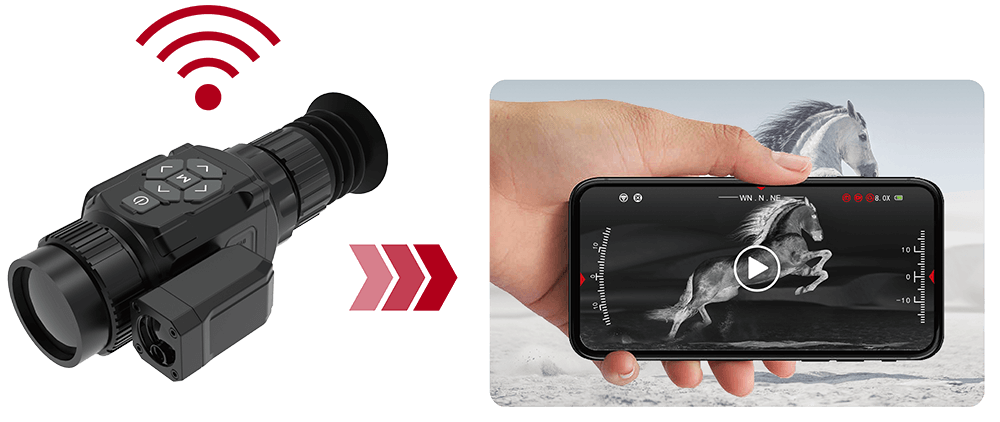

Wireless Transmission

WIFI/hotspot, supports mobile APP software on mobile phones, tablets, and laptops for viewing and live streaming.

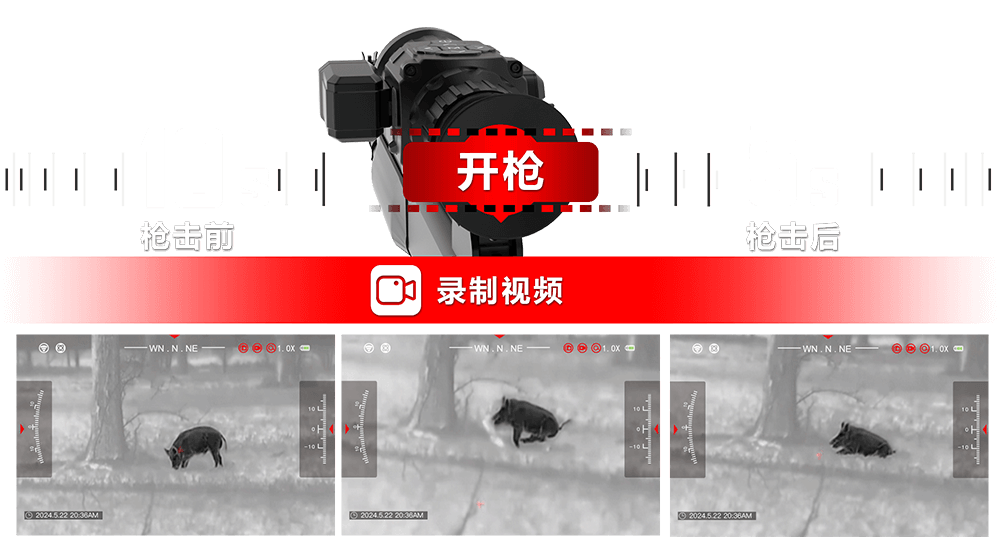

Impact Recording

High-precision real-time distance display, equipped with a high-precision eye-safe laser rangefinding device. One-button ranging accuracy 1m.

Crosshair Reticle

The unique crosshair mode is essential for fast target acquisition and accuracy at any distance, and supports multiple color options.

Application Scenarios

Used for public security law enforcement, drug control and smuggling investigation, armed police anti-control, border patrol, coastal patrol, single-person night reconnaissance, etc.

Product Display and Accessories

Product appearance and accessories display. Accessories mainly include (main unit, waterproof box, data cable, battery charger, 26650A lithium battery, accessories).

Specifications

Binocular Multifunctional Low-Light Night Vision Telescope
Model	SSK/NW-SYNC25	SSK/NW-SYNC25X
Thermal Imaging Parameters
Detector Type	Uncooled vanadium oxide
Operating Band	8～14μm
Lens Parameters	25mm@ F=1.0
Focusing Method	Manual
Detector Specifications	384×288 / 640×512 (optional) 12μm
Field of View	25mm lens 10.6°×7.9° (384 resolution) 17.6°×14.1° (640 resolution)
Polarity	Black hot/White hot
Image Frame Rate	50Hz
Image Noise Reduction	Digital Filtering
Electronic Magnification	1～8x continuous magnification
Zoom Mode	Normal zoom/Picture-in-picture zoom
Hot Spot Tracking	Supported
Image Enhancement	Supported
Pseudo-color Mode	Supports 9 color modes including white hot/black hot/brown/iron red/rainbow
Reticle and Color	5 types of reticles, 4 reticle colors
Detection Distance	800 meters (typical climate conditions)
Recognition Distance	350 meters (typical climate conditions)
Eyepiece Parameters
Display Screen	0.39-inch OLED, 1024×768 resolution
Contrast Ratio	1000:1
Eye Relief	25-70mm
Eyepiece Magnification	15x
Image Parameters
Video Recording, Photo Taking, and Playback	Supports one-button photo and video recording, and on-board playback of videos and images.
Video Recording Format	MP4
Image Storage	JPG
Image Output	HDMI@1024×768 (50Hz)
Continuous Recording Time	More than 7 hours
Storage Capacity	Standard 64G (optional 256G)
Interface Description
Data Export	TAPE-C 2.0
Video Output	HDMI
Wireless Transmission	WIFI/hotspot, supports viewing and live streaming via mobile APP software on mobile phones, tablets, and laptops (Facebook, Linkedin, Twitter, Douyin, TikTok, etc.)
Ranging Distance		1200m (Accuracy ±1m)
Ranging Wavelength		Pulse 905nm
Data Sensor
Impact Recording	Impact automatic video recording, video pre-recording saves video before and after impact, impact video duration and impact sensitivity are adjustable.
One-button Gun Calibration	AI intelligent hotspot recognition corrects the reticle to the specified position
Azimuth Sensor	Static accuracy 0.05° Dynamic 0.1°
Accelerometer	2G-60G internally adjustable
Roll Angle Sensor	Range ±90° Static accuracy 0.05° Dynamic 0.1°
Pitch Angle Sensor	Range ±90° Static accuracy 0.05° Dynamic 0.1°
Physical Parameters
Impact Resistance	1000G
Waterproof Seal	IP66 (Airtight)
Operating Temperature	-40℃～+60℃
Storage Temperature	-45℃～+70℃
Operating Humidity	Humidity less than 90% (non-condensing)
Typical Power Consumption	≤2.3W
Battery Capacity	16340 Rechargeable Lithium Battery 3.7V＠2600mAH
Product Dimensions	183×66×61（mm）	183×96×61（mm）
Product Weight	≤600g (including battery)	≤655g (including battery)
Accessories
Charging Data Cable	USB to TAPE-C
Charger	Standard Charger
Instruction Manual	One
Packaging	ABS dedicated protective case
